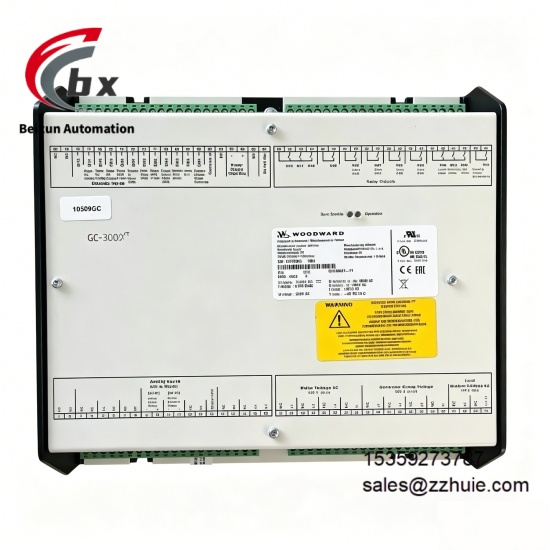

WOODWARD 8440-2228 Group controller module
Specific Parameters
Device Type Group Controller
Product Series EasyGen 3000 XT Series
Specific Model GC 3400 XT P1
Weight 2.27kg
Product Number 30059967
Operating Temperature Range -40℃ to 70℃
Storage Temperature Range -40℃ to 80℃
Operating Altitude Up to 4000m (No Derating)
Communication Interface 3 Ethernet Interfaces (RJ-45), 3 CAN Bus Interfaces, 1 RS-485 Interface, 1 USB 2.0 Slave Service Interface
Analog Inputs 2 Channels of 0/4-20mA Transducer Inputs
Digital Inputs 12 Digital Inputs
Digital Outputs 12 Digital Outputs
Compatible Devices Only Works with EasyGen 3500 XT P2 K51 Devices
Control Quantity Can control up to 248 EasyGen Gensets
Mounting Type Back Panel Mount
Housing Material Rugged Sheet Metal Housing
Certification Standards CE, UL, RoHS 2, ABS, LR
Product Performance
Control Performance: Built-in LDSS algorithm, can realize voltage and frequency guidance of gensets, support intertie breaker synchronization control, can guide gensets to adjust active power and reactive power, realize load sharing, can start and stop up to 248 EasyGen gensets, adapting to complex multi-unit paralleling operation scenarios.
Communication Performance: Equipped with multiple types of communication interfaces, supports redundant Ethernet communication, can realize redundant load sharing through Ethernet B and C networks to improve operation reliability, supports seamless docking with SCADA and PLC systems, realizes real-time data transmission, remote configuration and debugging, and the USB interface can be used for service configuration.
Cooperative Performance: It can only work with EasyGen 3500 XT P2 K51 devices, can access gensets, bus voltage detection and other devices, realize accurate cooperative control between multiple devices, and adapt to the management needs of complex power distribution systems.

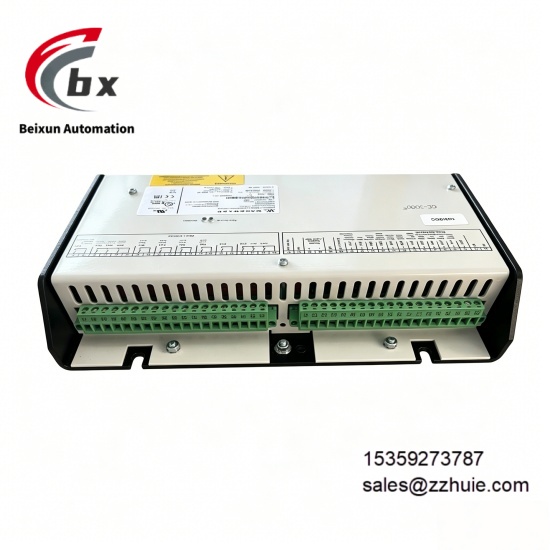

Structural Performance: Adopts a rugged metal housing, no built-in display module, weighs 2.27kg, adopts back panel mounting design, terminals are screwable plug-in terminals, compact structure, easy installation, adapts to industrial cabinet installation scenarios, and has strong anti-interference ability.
Environmental Adaptability Performance: It can operate stably in a wide temperature range of -40℃ to 70℃, the storage temperature covers -40℃ to 80℃, can operate without derating in the highest 4000m altitude environment, can withstand harsh industrial environments, and has high operation stability.
Safety Performance: Certified by CE, UL, RoHS 2, ABS, LR and other standards, equipped with complete equipment protection mechanisms, can effectively monitor power system abnormalities, avoid load impact and circuit faults, and ensure the safe and stable operation of genset clusters and its own equipment.
