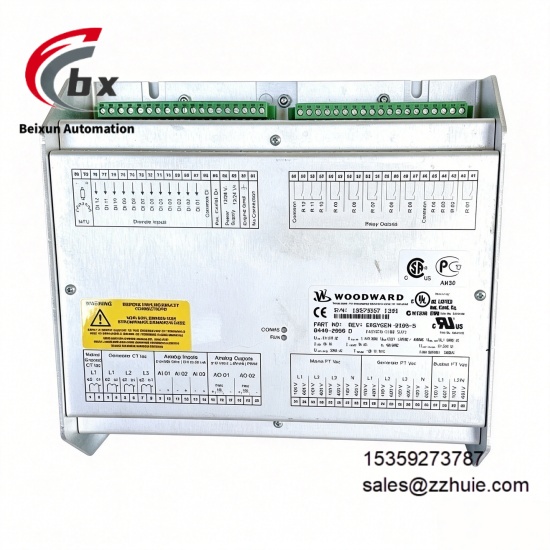

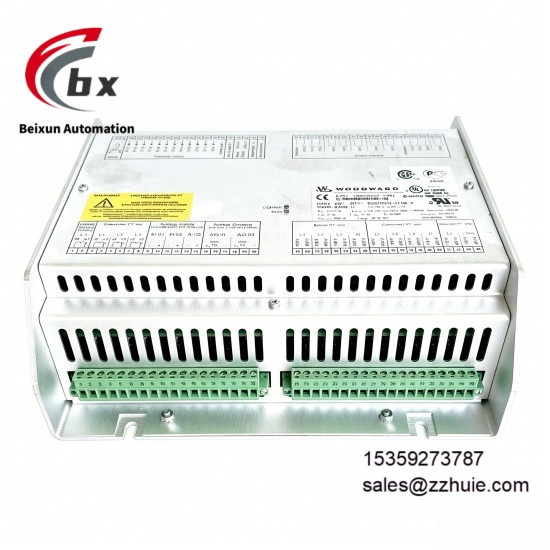

WOODWARD 8440-2056 Generator set controller
Specific Parameters
Device Type Genset Controller
Product Series easYgen-3000 Series
Power Supply Voltage 12/24VDC (Nominal), 8-40VDC (Operating Range)
Measuring Frequency 50/60Hz (40-85Hz)
CT Input 5A Nominal Input
Number of PID Controllers 3 (Freely Configurable)
Voltage Setting Range 50-650000VAC
Current Setting Range 1-32000A
Relay Output Isolated Relay Output
Maximum Parallel Generators Up to 32 Units
Operation Modes Four Modes: Auto, Manual, Stop, Test (Load/No Load)
Event Recording Up to 300 Events (with Real-Time Clock)
Mounting Type Cabinet Back Panel Mounting
Housing Material Metal Housing
Supported Languages 13 Languages including English, German, Spanish, French, Italian, etc.
Certification Standards UL, CUL
Product Performance
Control Performance: It has circuit breaker control and dynamic mains stabilization functions, supports automatic sequence control of single or multiple units, can control up to 32 generator sets in parallel, integrates load management functions such as load-dependent start/stop, mains parallel operation, open/closed transition, and supports start/stop logic control of diesel and gas engines.
Regulation Performance: Equipped with three freely configurable PID controllers, combined with 5A CT input terminals, it can realize precise regulation of engine speed, load distribution, power factor and other parameters. The control logic is highly customizable to meet the needs of various application scenarios.
Recording Performance: Built-in real-time clock event recorder, which can record up to 300 events, equipped with counters for operating hours, start times, maintenance times, etc., providing reliable data support for equipment fault diagnosis and maintenance.
Operation Performance: Supports four operation modes, programming, configuration and monitoring can be completed through PC-based ToolKit software, manual circuit breaker control can be realized through voltage/frequency control configuration, with convenient operation and flexible configuration.
Structural Performance: Adopts metal housing design and cabinet back panel mounting method, with solid and durable structure, strong anti-interference ability, can adapt to industrial cabinet installation scenarios, and save installation space.
Compatibility Performance: Supports 13 multilingual configurations, can adapt to the needs of different regions, is compatible with diesel, natural gas and dual-fuel engines, can be integrated into various generator set control systems, and has strong versatility.
