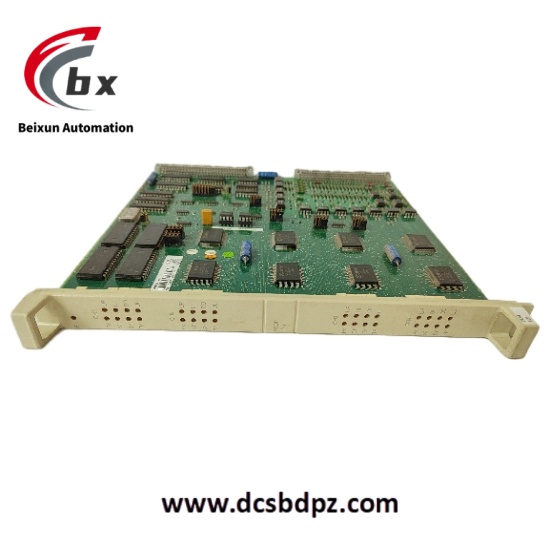

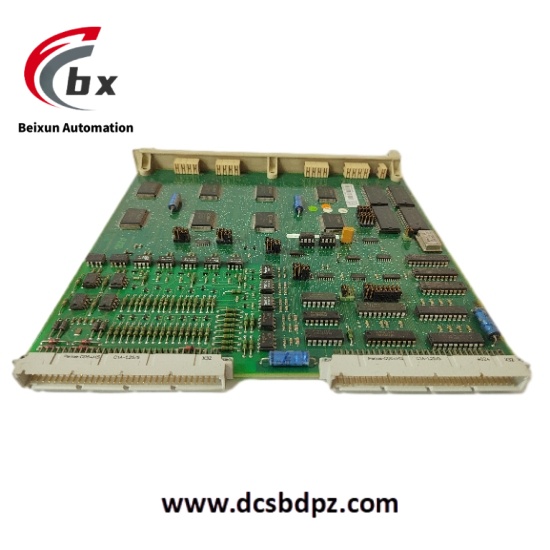

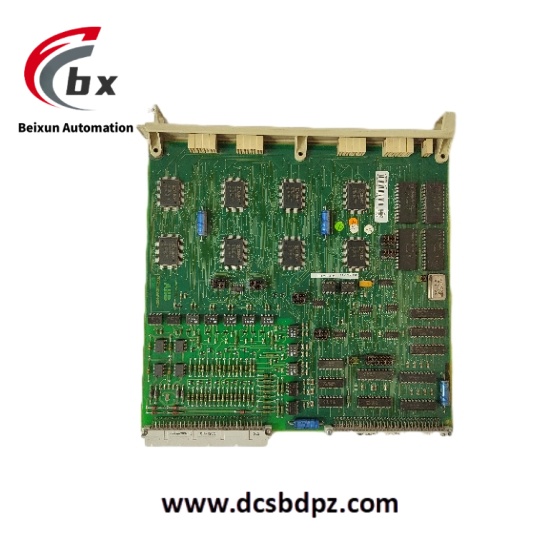

ABB DSDP170 57160001-ADF Pulse counter module
¥15,000.00 Original price was: ¥15,000.00.¥13,000.00Current price is: ¥13,000.00.
The ABB DSDP170 57160001 - ADF is a pulse counting board, also known as a pulse counter module. It plays a crucial role in the field of industrial automation and control systems. It is mainly used for accurately counting and measuring the number of pulse signals, and also has position and speed measurement functions. This module is suitable for pulse signals output by various sensors and encoders and can handle high - speed pulse inputs, providing key data support for equipment operation status monitoring and motion control in the industrial production process.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
ABB DSDP170 57160001-ADF Pulse counter module
Specific Parameters
- Model: DSDP170
- Part Number: 57160001 – ADF
- Number of Channels: 32
- Maximum Pulse Frequency: 2.5MHz
- Counting Frequency: Maximum 50kHz
- Counting Accuracy: ±1 count
- Power Supply Voltage: 24V DC
- Input/Output: 8 digital inputs, 8 digital outputs, 4 analog outputs
- Communication Interfaces: Ethernet, RS485, USB
- Operating Temperature Range: -20℃ to +60℃
- Protection Level: IP20
- Dimensions (Length×Width×Height): 328.5mm×18mm×238.5mm
- Weight: 180g
Product Performance
- High – Speed Pulse Processing: It can support high – speed pulse counting up to 2.5MHz. For high – speed motion control scenarios and high – precision measurement requirements, it can quickly and accurately acquire pulse data to ensure the operation accuracy of equipment.
- Multi – Mode Counting: It supports multiple counting modes such as incremental counting, direction counting, and frequency measurement, which can meet the diverse counting needs in different industrial application scenarios.
- Flexible Configuration: Parameters such as counting thresholds, counting directions, and filtering functions can be flexibly set through software to meet different production processes and equipment operation requirements.
- High Reliability: It is manufactured using industrial – grade components and can maintain long – term stable operation in harsh industrial environments such as high temperature, humidity, and electromagnetic interference, reducing the probability of equipment failure and maintenance costs.
- Multiple Protection Functions: It is equipped with functions such as overload protection, undervoltage protection, and short – circuit protection, effectively protecting connected equipment such as motors and frequency converters and improving the operational safety of the system.
