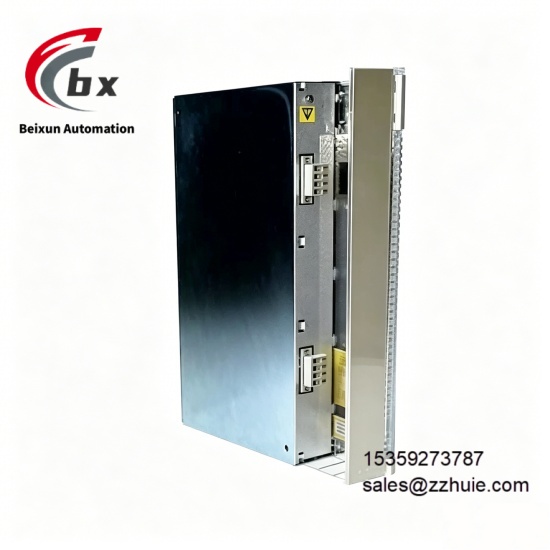

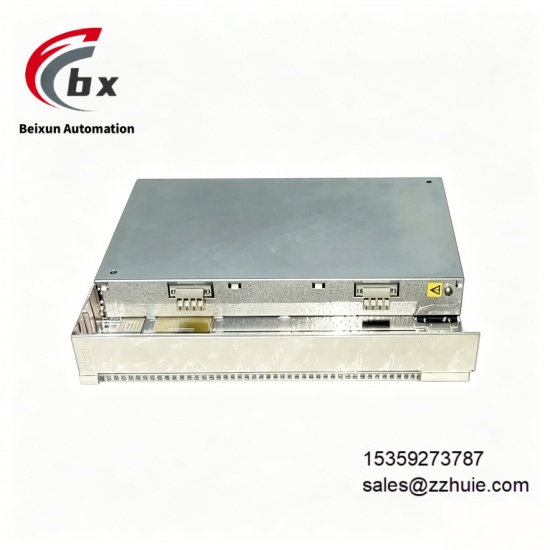

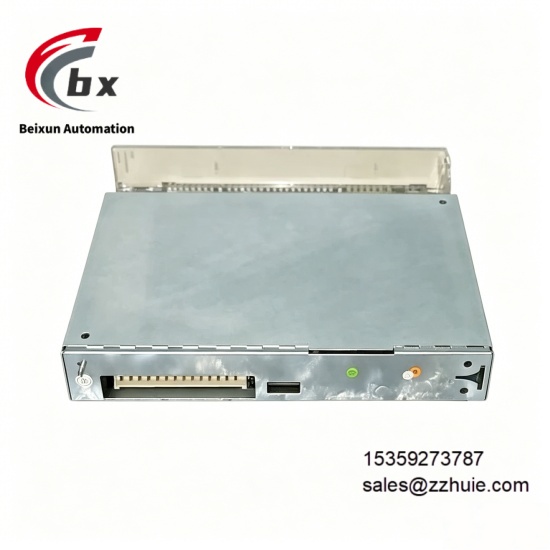

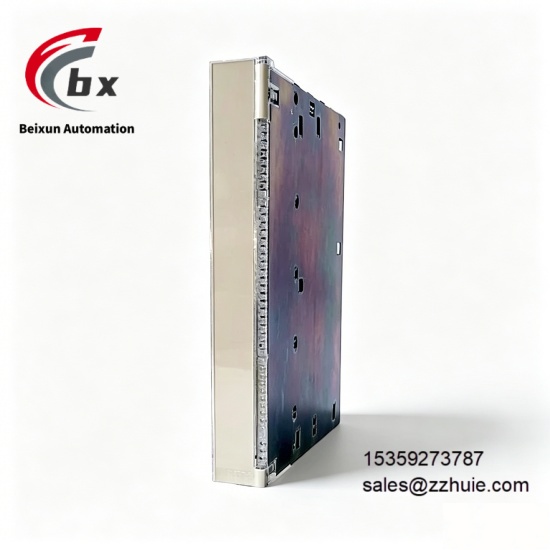

ABB CI631 3BSE016347R1 Communication interface module

ABB CI631 3BSE016347R1 Communication interface module

Specific Parameters

Device Type Communication Interface Module (Bus Coupler)

Product Series Advant Fieldbus 100 Series

Communication Interface Advant Fieldbus 100 Interface

Connection Method Twisted Pair Connection

Dimensions 263×58×28mm

Net Weight 1.4kg

Operating Temperature Range -20℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Power Supply Voltage 24VDC

Communication Protocol Supports Advant Fieldbus Communication Protocol

Mounting Type Cabinet Mount

Protection Level IP20

Certification Standards CE, RoHS (Complies with EU 2011/65/EU Directive)

Compatible Systems ABB Advant OCS Distributed Control System

HS Code 85389091

Product Performance

High-Speed Communication Performance: Adopts Advant Fieldbus 100 communication architecture, relying on twisted pair transmission mode to realize high-speed data interaction between the controller and field devices, with stable transmission and low delay, ensuring the real-time performance of industrial control signals.

Stability and Reliability Performance: Manufactured with industrial-grade durable components and sturdy structure design, it has excellent anti-electromagnetic interference ability, can operate stably for a long time in harsh industrial environments, and has a long fault-free operation cycle.

Convenient Integration Performance: As a dedicated bus coupler for ABB Advant OCS system, it can be seamlessly integrated into the series of DCS systems without additional adaptation accessories, with simple installation process and can quickly complete system deployment and commissioning.

Structural Durability Performance: Compact overall size, net weight of only 1.4kg, occupying small cabinet space, adopting standardized cabinet mounting design, stable structure, and can withstand slight vibration and temperature-humidity fluctuations in industrial sites.

Compatibility Performance: Specifically designed for Advant Fieldbus system, it can be perfectly compatible with various field devices that conform to the bus protocol, supports simultaneous access of multiple devices, and meets the communication needs of industrial automation systems of different scales.

Environmental Adaptability Performance: Industrial-grade wide temperature design, can operate stably in the range of -20℃ to 60℃, withstands 5% to 95% non-condensing humidity environment, and adapts to industrial sites with high dust and strong electromagnetic interference.

Compliance Performance: Complies with CE and RoHS relevant directive requirements, meets the environmental protection and safety standards of industrial equipment, and can be used compliantly in most industrial scenarios around the world.
