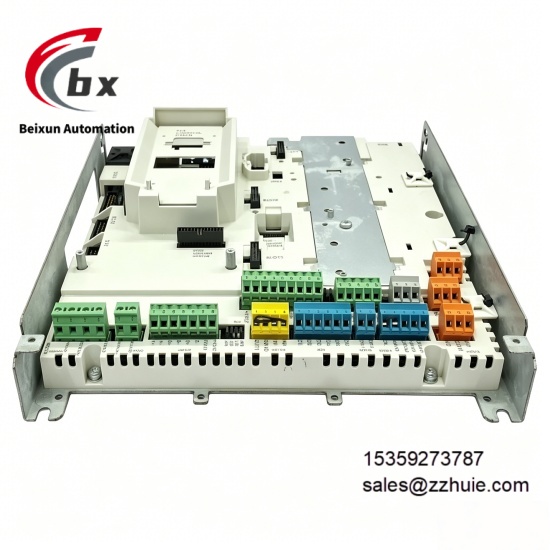

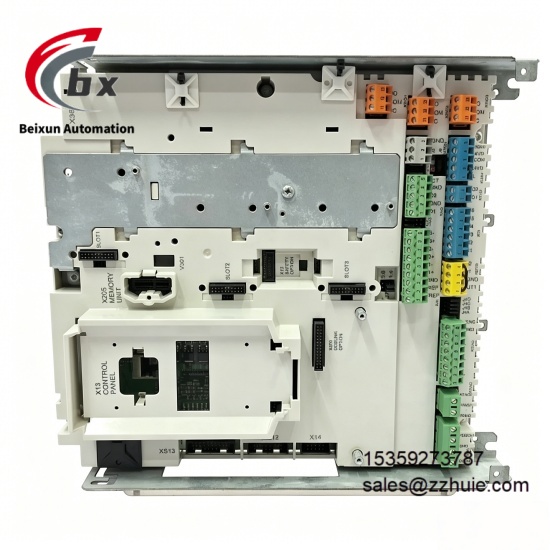

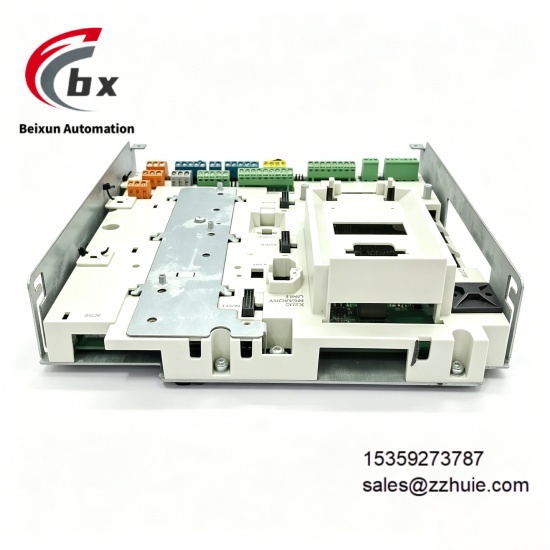

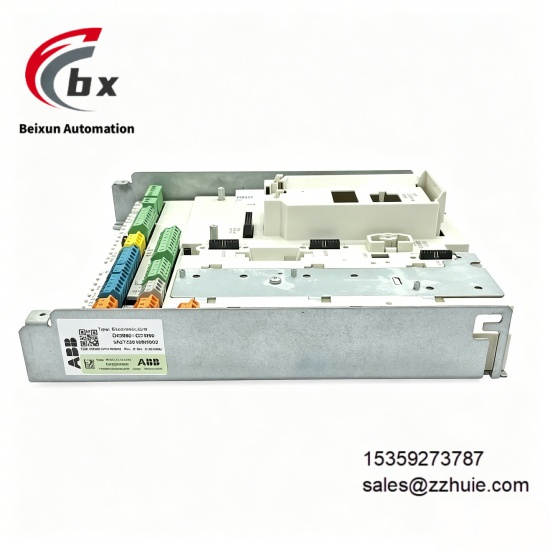

ABB DCS880/DCT880 SDCS-CON-H01 3ADT220166R0002 Electronic control board

ABB DCS880/DCT880 SDCS-CON-H01 3ADT220166R0002 Electronic control board

Specific Parameters

Device Type Core Control Board/Electronic Unit

Product Series SDCS-CON Series

Compatible Systems ABB DCS880 DC Converter, DCT880 Thyristor Power Controller

Processor High-Performance Industrial Microprocessor

Power Supply Voltage 24VDC

Maximum Current 10A

Power Dissipation Maximum Approx. 4.8W

Dimensions 170mm×120mm×30mm

Net Weight 0.5kg

Operating Temperature Range -20℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Communication Protocol Supports Modbus RTU, Ethernet Protocol, Optional Profibus, Profinet Adapter

Communication Interface Built-in Ethernet Port, Serial Port

Analog Input 4 Channels, Supports ±10V, 0-20mA, 4-20mA (Configurable)

Analog Output 4 Channels, Supports ±10V, 0-20mA, 4-20mA (Configurable)

Digital Input 16 Channels, Opto-Isolated, 24VDC

Digital Output 16 Channels, Opto-Isolated, Transistor Output

Encoder Interface Supports HTL/TTL Encoder (ABZ Three-Phase)

Redundancy Function Supports Dual-Channel Redundancy Design

Mounting Type Drive Main Frame Mount, Supports Hot Swap

Certification Standards CE, RoHS, IEC 61131-3

Product Performance

High Precision Control Performance: Equipped with a high-performance industrial microprocessor, it runs high-speed closed-loop control algorithms, which can accurately realize the regulation and control of DC motor speed, torque and current, ensuring the high dynamic performance and control precision of the drive system.

High Integration Performance: Integrates processor, memory, rich I/O interfaces and multi-protocol communication modules into one, simplifies the system architecture, and can meet the needs of complex automation control without additional expansion components.

Flexible Communication Performance: Supports multiple communication protocols such as Modbus RTU and Ethernet, is equipped with optional bus adapters, can be seamlessly integrated into various industrial control networks, and realizes high-speed data interaction with PLC, HMI and other devices.

Redundancy and Reliability Performance: Adopts dual-channel redundancy design with automatic fault switching function, which greatly reduces the risk of system shutdown and ensures the continuous and stable operation of critical industrial processes.

Advanced Diagnostic Performance: Built-in complete diagnostic tools and status monitoring functions, equipped with LED indicator lights, which can real-time feedback the module operation status, quickly locate fault points, simplify the operation and maintenance process, and improve operation and maintenance efficiency.

Environmental Adaptability Performance: Industrial-grade wide temperature design, can operate stably in the range of -20℃ to 60℃, withstands 5% to 95% non-condensing humidity environment, has strong anti-electromagnetic interference ability, and adapts to harsh industrial working conditions with high dust and strong interference.

Convenient Operation Performance: Supports hot swap function, which can complete module replacement without stopping the drive, and is equipped with an intuitive parameter configuration interface, simplifying installation, commissioning and maintenance operations.

Energy Saving and Optimization Performance: Equipped with an advanced power management system, which can achieve optimal performance output under different load conditions, reduce energy consumption, and improve the operating efficiency of the entire control system.
