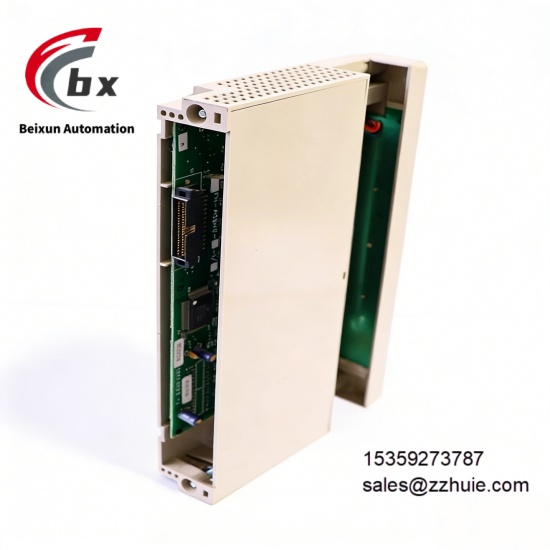

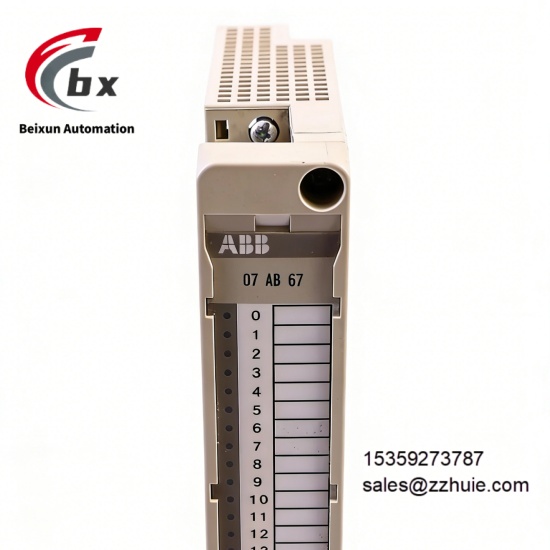

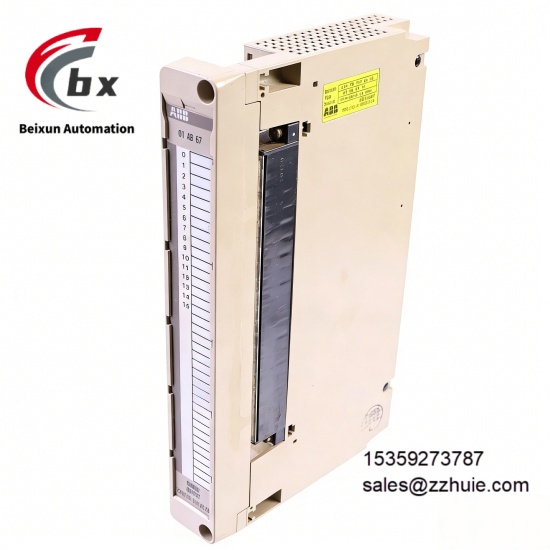

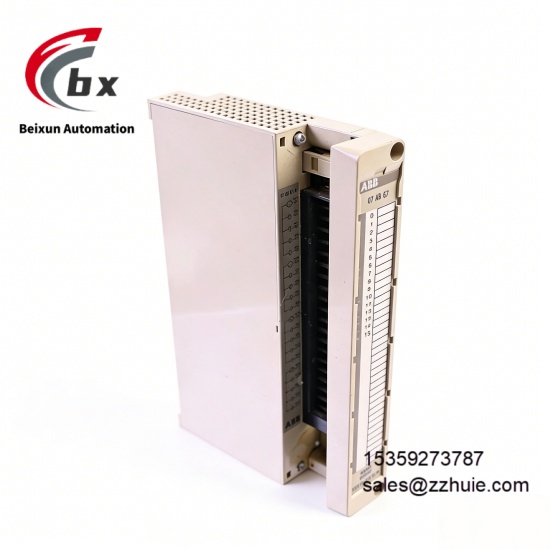

ABB 07AB67R1 GJV3074364R1 High performance relay output module

ABB 07AB67R1 GJV3074364R1 High performance relay output module

Specific Parameters

Device Type Relay Output Module

Product Series ABB Procontic T200 Series

Number of Output Channels 16 Independent Relay Output Channels

Output Signal Type Relay Output

Contact Capacity 240VAC/2A

Operating Temperature Range -20℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Mounting Type Standard PLC Rail Mounting

Terminal Design Wiring terminals with anti-loosening design

Protection Level IP20

Net Weight 0.5kg

Net Dimensions 25.4cm×5.1cm×15.2cm (10.0in×2.0in×6.0in)

Tariff Code 8538907080

Status Indication Equipped with channel-level operation/fault indicator lights

Compatible System ABB Procontic T200 Series Automation Systems

Housing Material Industrial-grade Flame-retardant Plastic

Product Performance

Precise Signal Output Performance: Equipped with 16 independent relay output channels, the output signal is stable, which can accurately drive contactors, solenoid valves, indicator lights and other external executive equipment, ensuring the timeliness and accuracy of switching quantity control, and adapting to the needs of multi-equipment coordinated control.

High Reliability Performance: Adopts industrial-grade flame-retardant components and anti-loosening wiring terminals, passed strict industrial tests, has excellent anti-electromagnetic interference and dust-proof performance, can operate stably for a long time in harsh industrial environments, has a long fault-free operation cycle, and effectively protects the module and external equipment.

Strong Load Adaptability Performance: The contact capacity can reach 240VAC/2A, which can adapt to external executive equipment of various powers, directly realize equipment drive without additional power amplification components, and adapt to multiple industrial switching control needs.

Convenient Installation Performance: Adopts standard PLC rail mounting, simple wiring process, no complex tools and professional skills are required, on-site deployment can be completed quickly, the compact structure is suitable for narrow installation space, and it can be densely installed in PLC control cabinets to optimize cabinet layout.

Intuitive Maintenance Performance: Equipped with channel-level operation/fault indicator lights, which can display the working status of each channel in real time, making fault troubleshooting intuitive and efficient. The modular design is easy to disassemble, inspect and replace, reducing operation and maintenance costs.

Flexible Integration Performance: Exclusively compatible with ABB Procontic T200 series automation systems, no additional adapter accessories are required, can be directly linked with other components in the system, perfectly integrated into various industrial automation control systems, and adapted to multiple industrial control scenarios.

Compact Structure Performance: With a net dimension of only 25.4cm×5.1cm×15.2cm and a weight of 0.5kg, it is small in size and light in weight, which can effectively save the installation space of the PLC control cabinet and adapt to narrow installation environments.

Environmental Adaptability Performance: Industrial-grade wide temperature design, can operate stably in the range of -20℃ to 85℃, resistant to temperature and humidity fluctuations in industrial sites, suitable for industrial working conditions with high dust and strong electromagnetic interference, and performance is not affected by environmental factors.
