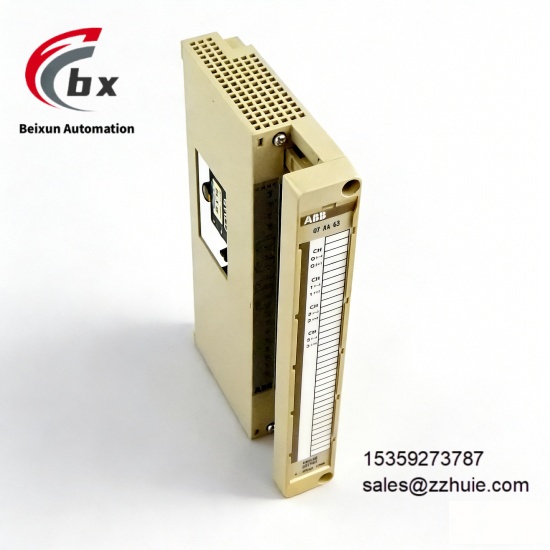

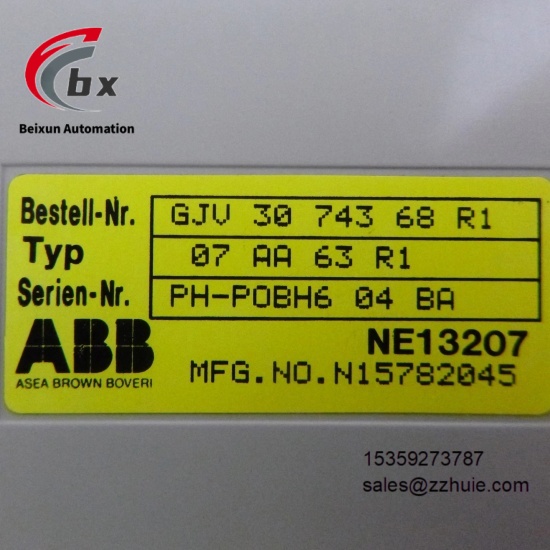

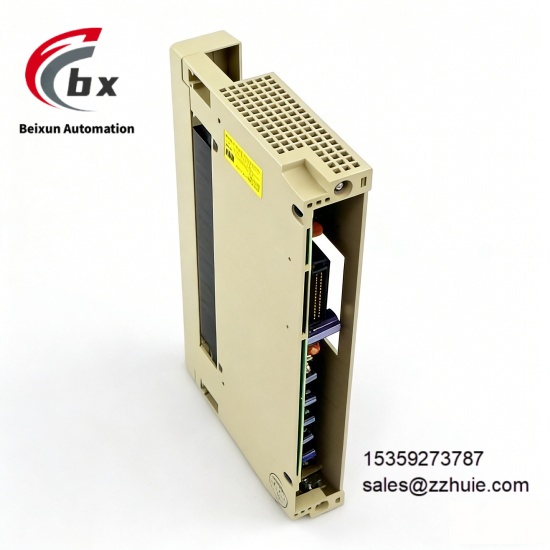

ABB 07AA63R1 GJV3074368R1 Analog output module
Specific Parameters
Device Type Analog Output Module
Product Series ABB AC31 Series
Number of Output Channels 4 Independent Output Channels
Output Signal Type 0-10V Voltage-type Analog Signal
DAC Resolution 8-bit DAC
Operating Temperature Range -20℃ to 85℃
Relative Humidity 5% to 95%, Non-Condensing
Mounting Type Standard PLC Rail Mounting
Terminal Design Wiring terminals with anti-loosening design
Calibration Method No external calibration potentiometer, calibrated via PLC programming software
Protection Functions Dual protection for output short circuit and overload
Status Indication Equipped with channel-level fault indicator lights
Compatible Software ABB Freelance Control Software
Bus Compatibility Seamlessly compatible with AC31 series PLC backplane bus
Special Function Supports online hot plugging (meets AC31 series operating specifications)
Product Performance
Precise Signal Output Performance: Equipped with 4 independent 0-10V voltage-type analog output channels and 8-bit DAC resolution, the output signal has excellent linearity and no drift, which can accurately provide control signals for frequency converters, electric control valves and other equipment, ensuring the accuracy of continuous process control.
Channel Isolation Performance: Electrical isolation design between each output channel thoroughly avoids signal crosstalk between channels, significantly improves the stability of signal output and control reliability, and meets the strict requirements of industrial continuous control.
High Reliability Performance: Adopts industrial-grade flame-retardant components, passed strict industrial tests, equipped with dual protection mechanism for output short circuit and overload, effectively protecting the module and external executive equipment, and can operate stably for a long time in harsh industrial environments with a long fault-free operation cycle.
Convenient Calibration Performance: No external calibration potentiometer, zero and full-scale calibration can be completed through ABB Freelance Control software, with efficient operation, no additional calibration tools are required, reducing calibration costs.
Flexible Integration Performance: Exclusively compatible with ABB AC31 series PLC, seamlessly compatible with the backplane bus, no additional adapter accessories are required, can be directly linked with other components in the system, adapting to multiple industrial control needs.
Convenient Installation and Maintenance Performance: Adopts standard PLC rail mounting, wiring terminals with anti-loosening design, convenient wiring and anti-vibration loosening; supports online hot plugging, maintenance and replacement do not need to shut down the entire control system, equipped with channel-level fault indicator lights, making fault troubleshooting intuitive and efficient.
Environmental Adaptability Performance: Industrial-grade wide temperature design, can operate stably in the range of -20℃ to 85℃, resistant to temperature and humidity fluctuations in industrial sites, strong anti-electromagnetic interference and dust-proof capabilities, suitable for industrial working conditions with high dust and strong electromagnetic interference.
Low Power Consumption and Compact Performance: The module has low power consumption, no additional heat dissipation requirements, can be densely installed in PLC control cabinets, saving installation space, compact structure, adapting to narrow installation environments, and can flexibly adapt to various industrial control scenarios.
