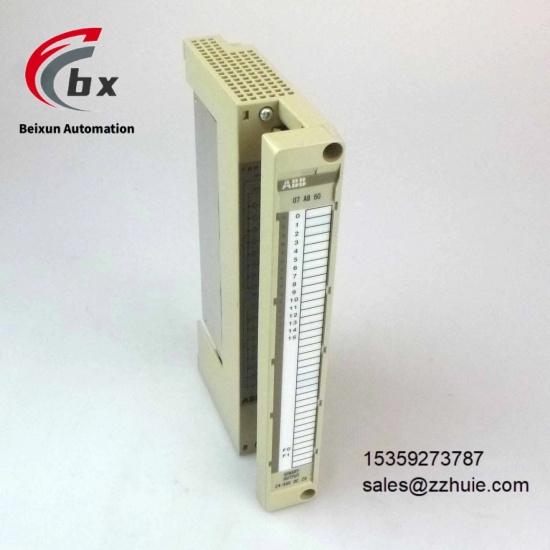

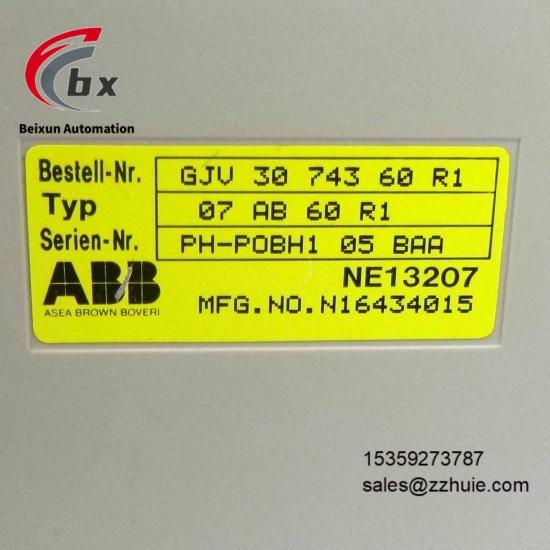

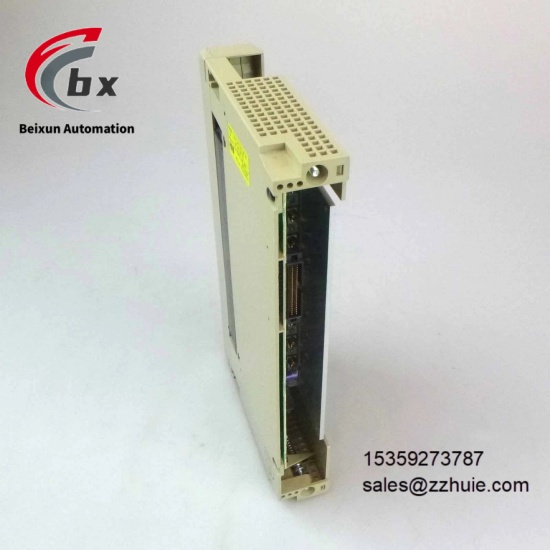

ABB 07AB60R1 GJV3074360R1 PLC specific digital output module
Specific Parameters
Device Type Digital Output Module
Product Series ABB AC31 Series
Number of Output Channels 8 Independent Digital Output Channels
Output Signal Type Relay Output
Contact Capacity 250VAC/5A, 30VDC/5A
Operating Temperature Range -20℃ to 85℃
Relative Humidity 5% to 95%, Non-Condensing
Mounting Type Standard PLC Rail Mounting
Terminal Design Wiring terminals with anti-loosening design
Protection Level IP20
Power Consumption Max 1.5W
Response Time ≤2ms
Status Indication Equipped with channel-level operation/fault indicator lights
Compatible Software ABB Freelance Control Software
Bus Compatibility Seamlessly compatible with AC31 series PLC backplane bus
Housing Material Industrial-grade Flame-retardant Plastic
Net Weight 0.54kg
Net Dimensions 148mm×198mm×59mm
Tariff Code 85389091
Special Function Supports online hot plugging (meets AC31 series operating specifications)
Product Performance
Precise Signal Output Performance: Equipped with 8 independent relay output channels, the response time is ≤2ms, the output signal is stable, which can accurately drive contactors, solenoid valves, indicator lights and other external executive equipment, ensuring the timeliness and accuracy of switching quantity control.
High Reliability Performance: Adopts industrial-grade flame-retardant components and anti-loosening wiring terminals, passed strict industrial tests, has excellent anti-electromagnetic interference and dust-proof performance, can operate stably for a long time in harsh industrial environments, has a long fault-free operation cycle, and effectively protects the module and external equipment.
Strong Load Adaptability Performance: The contact capacity can reach 250VAC/5A and 30VDC/5A, which can adapt to external executive equipment of various powers, directly realize equipment drive without additional power amplification components, and adapt to multiple industrial switching control needs.
Convenient Installation Performance: Adopts standard PLC rail mounting, simple wiring process, no complex tools and professional skills are required, on-site deployment can be completed quickly, the compact structure is suitable for narrow installation space, and it can be densely installed in PLC control cabinets.
Intuitive Maintenance Performance: Equipped with channel-level operation/fault indicator lights, which can display the working status of each channel in real time, making fault troubleshooting intuitive and efficient. The modular design is easy to disassemble, inspect and replace, supports online hot plugging, and maintenance and replacement do not need to shut down the entire control system.
Flexible Integration Performance: Exclusively compatible with ABB AC31 series PLC, seamlessly compatible with the backplane bus, plug and play, no additional adapter accessories are required, can be directly linked with other components in the system, and perfectly integrated into various industrial automation control systems.
Low Power Consumption Performance: The maximum power consumption is only 1.5W, low operating energy consumption, which can effectively reduce the energy consumption of the entire automation system, no additional heat dissipation equipment is required, and further save installation space and operation and maintenance costs.
Environmental Adaptability Performance: Industrial-grade wide temperature design, can operate stably in the range of -20℃ to 85℃, resistant to temperature and humidity fluctuations in industrial sites, suitable for industrial working conditions with high dust and strong electromagnetic interference, and performance is not affected by environmental factors.
