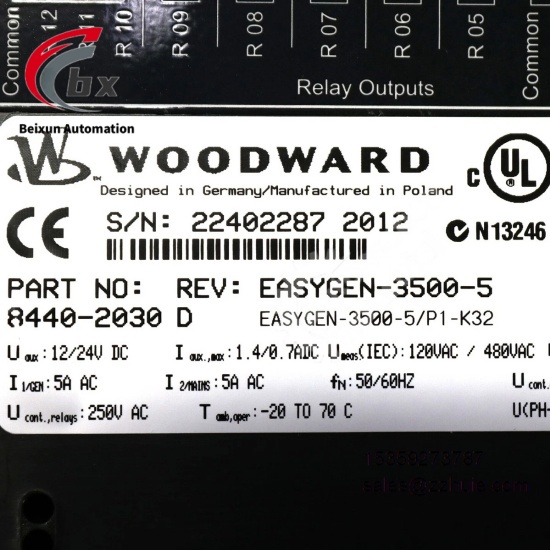

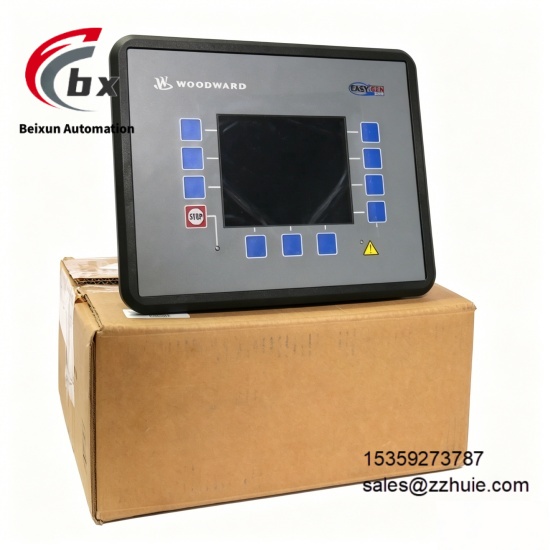

WOODWARD 8440-2030 Generator set controller
Specific Parameters
Device Type Genset Controller (Multi-unit Coordinated Control Type)
Product Series EASYGEN-3000 Series (Model EASYGEN-3500-5)
Power Supply Voltage 12/24Vdc (Wide Voltage 8-40Vdc)
Maximum Power Consumption per Path ＜0.15W
Measuring Frequency 15.0 to 85.0Hz
Setting Voltage Range 50-650000Vac
Communication Interfaces CANBus, RS-485, Ethernet
Communication Protocols Modbus RTU/TCP, CANopen, J1939
Number of Ports 4 (2 on each side of the plastic housing)
Display Interface 5.7-inch 320×240 Color LCD Display
Operation Rights 4 Levels of Access Rights, 3 Levels with Password Protection
Discrete Inputs/Outputs Supports Discrete and Analog I/O, Analog I/O is Freely Scalable
Operating Temperature Range -20℃ to 70℃
Storage Temperature Range -30℃ to 80℃ (-22°F to 176°F)
Relative Humidity 95% Non-condensing
Mounting Method Panel Mount
Panel Dimensions 282mm×216mm×96mm
Housing Material Plastic
Protection Rating IP20
Accuracy Class Class 1
Supported Languages English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Slovakian, Finnish, Swedish
Event Logging Can Store 300 Events, Built-in Battery Backup
Product Performance
Control Performance: Supports coordinated operation of up to 32 generator sets, compatible with 16 Woodward LS-5 synchronizers and load sharing controllers, integrates automatic start/stop sequencing, load sharing, bus synchronization and circuit breaker control functions, has peak shaving power generation, cogeneration and multi-unit grid-connected operation control capabilities, supports black start, load transfer and soft loading/unloading operations, and the built-in logic manager can flexibly configure control strategies, adapting to diesel and gas generator sets.
Protection Performance: Equipped with comprehensive generator, engine and mains protection functions, including overvoltage, undervoltage, overload, short circuit, overtemperature, overspeed, underspeed, ground fault, load imbalance and other protection types, with fast protection action response, can timely capture equipment operation abnormalities and quickly trigger protection actions, and the four-level access rights design can effectively prevent unauthorized operations, ensuring the safe operation of units and systems.
Stability Performance: The operating temperature ranges from -20℃ to 70℃, tolerates 95% non-condensing relative humidity, has excellent anti-vibration and anti-interference performance, is certified by CE and UL, is manufactured with industrial-grade plastic housing, the protection level reaches IP20, operates without failure for a long time, has a mean time between failures (MTBF) exceeding 100,000 hours, and can adapt to harsh industrial environments such as multi-unit grid connection and peak shaving power generation.
Compatibility Performance: Supports multiple industrial communication protocols such as CANBus, RS-485 and Ethernet, can be seamlessly integrated into SCADA, PLC and EMS monitoring systems, analog I/O is freely scalable, can be integrated into existing multi-unit power systems without additional transformation, adapts to various diesel and gas generator sets, supports communication with engine ECU through J1939 protocol, and adapts to various industrial scenarios such as peak shaving and cogeneration.
Operation Performance: Equipped with a 5.7-inch 320×240 color LCD display and a built-in operator interface, supports 14 language displays, has four levels of access rights, can configure parameters through the front panel or PC, is convenient for debugging and maintenance, real-time displays unit operation parameters, I/O status and alarm information, and has built-in diagnostic tools to quickly locate faults, effectively reducing downtime and improving operation and maintenance efficiency.
Metering Performance: With an accuracy class of Class 1, it has high-precision power measurement function, can accurately measure electrical parameters such as voltage, current, frequency, power and energy (kWh, kvarh), has a wide setting voltage range, can meet the industrial-level metering needs of multi-unit systems, and provides accurate data support for energy management and system optimization.
