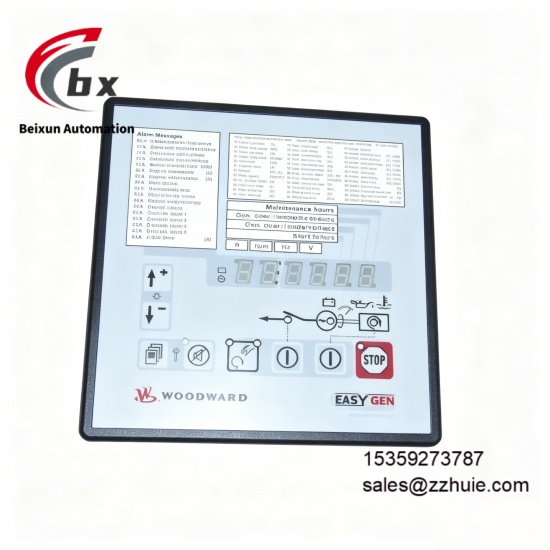

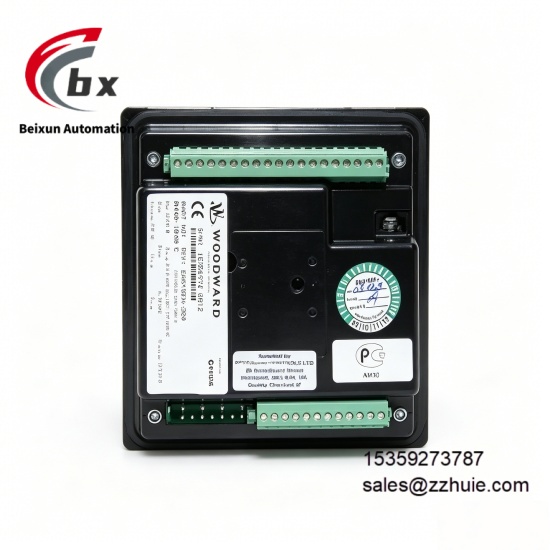

WOODWARD 8440-1800 Generator set controller

WOODWARD 8440-1800 Generator set controller

Specific Parameters

Device Type Genset Controller (Metering & Protection System)

Product Series EASYGEN-3000 Series (EASYGEN-320 Model)

Power Supply Voltage 18-32Vdc

Measurement Accuracy ±0.2%

Generator Frequency 15.0 to 85.0Hz

Input Voltage Range 208-480Vac

Maximum Exciter Current 24Vdc, 0.11adc

Vibration Parameter 4g, 30Hz, 1.5h

Communication Interfaces RS-485, CAN, Ethernet, USB

Communication Protocols Modbus RTU/TCP

Relay Outputs 4 SPDT

Operating Temperature Range -20℃ to 70℃

Storage Temperature Range -20℃ to 85℃

Relative Humidity 95% Non-condensing

Mounting Method Panel Mount

Dimensions 282mm×359mm×135mm

Weight Approximately 450g (Less Than 1lb)

Certification Standards CE, UL

Input Types Voltage, Current, Frequency, Engine Speed, Digital/Analog Inputs

Product Performance

Control Performance: Integrates automatic start/stop sequencing, load sharing, bus synchronization and circuit breaker control functions, can realize precise management of generator sets, supports coordinated operation of multiple units, has precise frequency control, can complete soft loading/unloading and load transfer operations, adapts to diesel and gas generator sets, and meets the control needs of different industrial scenarios.

Protection Performance: Equipped with comprehensive generator protection functions, including overvoltage, undervoltage, overcurrent, overload, short circuit, overtemperature and other protection types, can timely capture equipment abnormalities and quickly trigger protection actions, has built-in event logging and trend analysis functions for easy fault tracing and troubleshooting, and ensures the safe operation of generator sets.

Stability Performance: The operating temperature ranges from -20℃ to 70℃, tolerates 95% non-condensing relative humidity, has excellent anti-vibration performance, is certified by CE and UL, is manufactured with high-grade materials, operates without failure for a long time, and can adapt to harsh operating environments such as industrial power plants and ships.

Compatibility Performance: Supports multiple industrial communication protocols, can be seamlessly integrated into SCADA, PLC and EMS monitoring systems, adapts to various diesel and gas generator sets, has a wide input voltage range, is compatible with 10AWG shielded wires, can be integrated into existing power systems without additional transformation, and adapts to various industrial application scenarios.

Operation Performance: Equipped with a user-friendly operation interface, supports real-time data logging and diagnostic tools, can configure parameters through PC or front panel, has a password protection function, is convenient for debugging and maintenance, supports remote monitoring and management, and can effectively reduce downtime and improve operation and maintenance efficiency.
