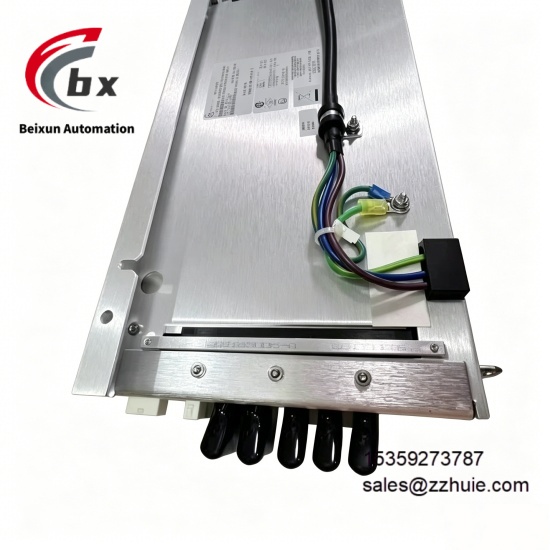

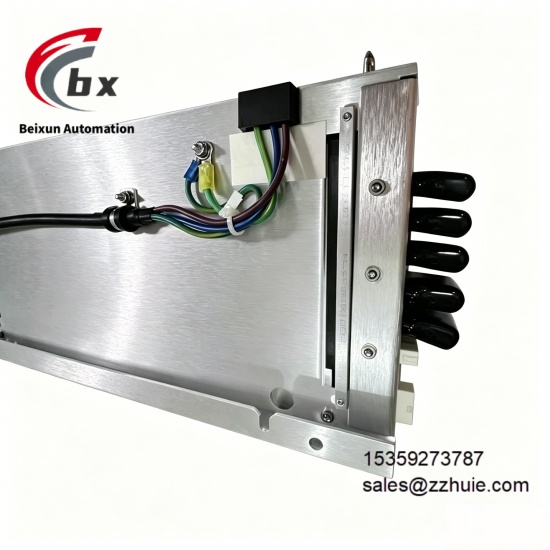

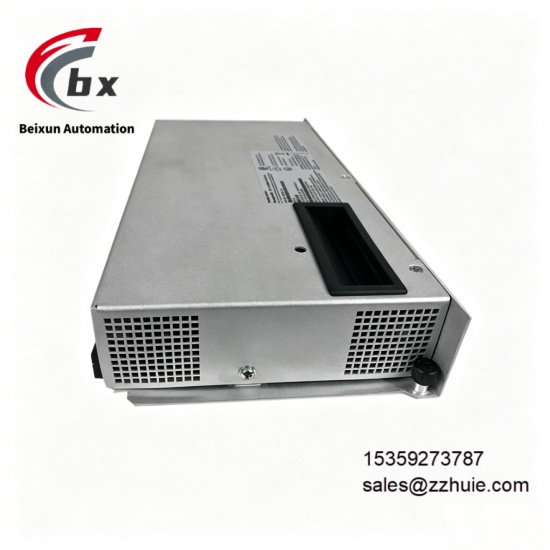

Honeywell CC-PWRR01 51199929-100 Redundant power module

Honeywell CC-PWRR01 51199929-100 Redundant power module

Specific Parameters

Device Type Redundant Power Supply Module

Product Series Honeywell Redundant Power Supply Series

Input Voltage Range 100-240VAC

Input Frequency 47-63Hz

Output Voltage 24-26VDC

Output Current 20A

Output Power 25W

Efficiency >85%

Operating Temperature Range -25℃ to 70℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Dimensions 119.88×69.85×29.97mm

Net Weight 0.204kg

Mounting Type DIN Rail Mount

Redundancy Mode 1+1 Redundant Configuration

Protection Level IP67

Certification Standards UL 60950-1, CE, EMC Directive 2004/108/EC

Hazardous Area Classification Class I, Division 2, Zone 2

Cooling Method Natural Convection Cooling

Product Performance

Redundancy and Reliability Performance: Adopts 1+1 redundancy design to realize automatic load sharing. When the main power supply fails, it can seamlessly and bumplessly switch to the backup power supply, ensuring uninterrupted system power supply and maximizing system uptime.

Stable Power Supply Performance: The output voltage is stably maintained at 24-26VDC, the output current can reach 20A, and the power supply accuracy is high, which can provide continuous and stable power support for controllers, I/O modules and other components to ensure stable system operation.

Multiple Protection Performance: Equipped with multiple protection functions such as overcurrent, overvoltage and short circuit, it also complies with industrial electrical safety standards and has grounding protection, which can effectively prevent equipment damage and personal electric shock risks.

Environmental Adaptability Performance: Industrial-grade wide temperature design can operate stably in the range of -25℃ to 70℃, with a protection level of IP67, which can withstand harsh industrial environments such as high dust and humidity, and has strong anti-interference ability.

High Efficiency and Energy Saving Performance: The efficiency is higher than 85% with low energy loss. It adopts natural convection cooling method without additional heat dissipation equipment, which can effectively reduce energy consumption and operation and maintenance costs during long-term operation.

Convenient Integration Performance: Compact structure, suitable for DIN Rail mounting, can be directly installed in standard control cabinets, seamlessly compatible with various Honeywell automation systems, without additional adapter accessories, and easy to install and debug.

Status Monitoring Performance: Equipped with LED indicator lights, it can clearly feedback the operation status of each power supply and the overall system, facilitating staff to grasp the equipment operation status in real time and quickly locate fault points.

Compatibility Performance: Specifically designed for Honeywell Experion PKS, ControlEdge PLC and TDC 3000 systems, it can perfectly adapt to various components in the system without additional adaptation and debugging.
