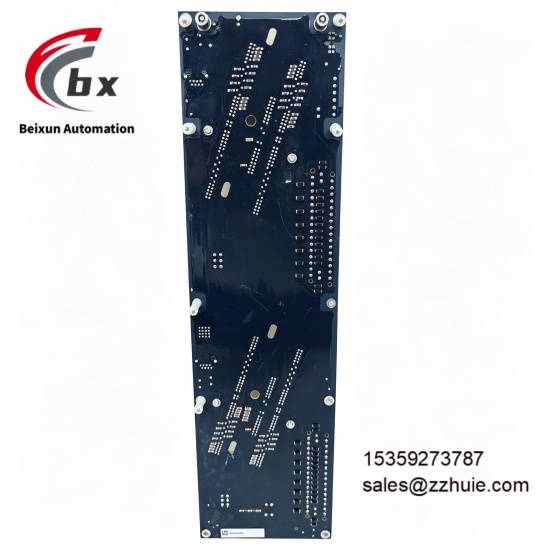

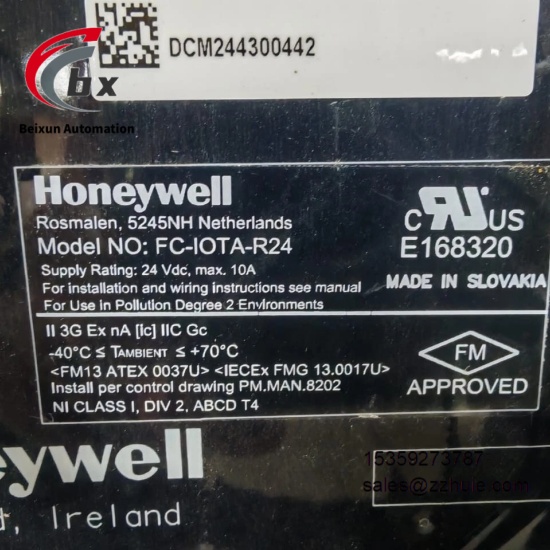

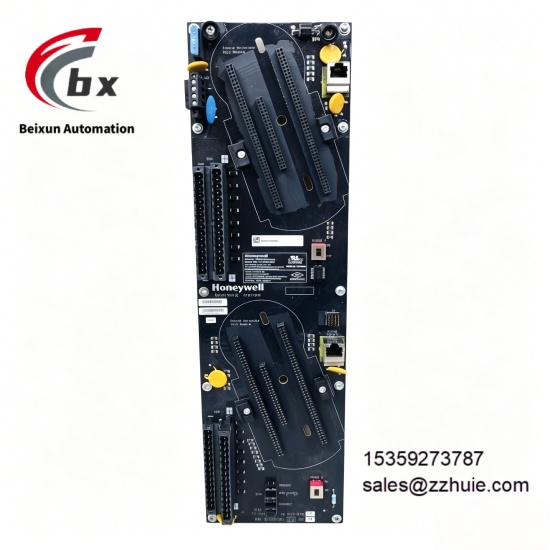

Honeywell FC-IOTA-R24 51306505-175 Redundant I/O terminal module

Specific Parameters

Device Type Redundant I/O Termination Assembly

Product Series IOTA Series

Channel Count 24 Channels

Power Supply Voltage 24VDC (Redundant Power Paths)

Operating Temperature Range -20℃ to 60℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Dimensions 64mm×120.7mm×443.2mm

Net Weight 0.57kg

Terminal Type Screw Terminals or Pluggable Connectors

Communication Protocol Modbus RTU, Ethernet/IP

Redundancy Function Dual Signal and Power Path Support

Hot Swappable Supported (With Compatible I/O Modules)

Signal Type Digital I/O, Analog I/O (Depends on Attached Modules)

Protection Function Signal Isolation, Short-Circuit Protection

Mounting Type DIN Rail Mount or Panel Mount

Certification Standards CE, UL, CSA, RoHS

Compatible Systems Honeywell FSC, Safety Manager I/O Systems

Construction Material Flame-Retardant Industrial-Grade Plastic and Metal Base

Product Performance

Redundancy Reliability Performance: Equipped with dual signal and power redundancy paths, when one path fails, the redundant elements automatically take over the work, ensuring uninterrupted system operation and greatly reducing the downtime risk of critical industrial processes.

High-Density Connection Performance: Supports 24-channel high-density wiring design, which can realize efficient signal connection between field devices and control systems, save installation space, and improve system integration efficiency.

Signal Transmission Performance: Built-in signal isolation and short-circuit protection functions, which can effectively suppress electromagnetic interference, ensure the stability and accuracy of signal transmission, and avoid signal distortion affecting control precision.

Convenient Integration Performance: Adopts modular layout and integrated backplane design, supports hot swapping operation, can quickly complete module replacement and system expansion, and simplifies installation and commissioning processes.

Diagnostic Monitoring Performance: Equipped with integrated status monitoring and channel-level fault detection functions, which can feedback the equipment operation status in real time, facilitate quick location of fault points, and improve operation and maintenance efficiency.

Environmental Adaptability Performance: Manufactured with flame-retardant industrial-grade materials, it can operate stably in the temperature range of -20℃ to 60℃ and humidity environment of 5% to 95% non-condensing, adapting to harsh industrial working conditions with high dust and temperature-humidity fluctuations.

High Compatibility Performance: It can be perfectly compatible with Honeywell FSC and Safety Manager I/O systems, supports various field signal types, and can be seamlessly integrated into Honeywell Distributed Control Systems without additional adapter accessories.

Structural Durability Performance: The overall structure is sturdy, adopting corrosion-resistant materials, with excellent anti-aging and anti-interference capabilities, long service life, and can meet the requirements of long-term stable operation in industrial sites.
