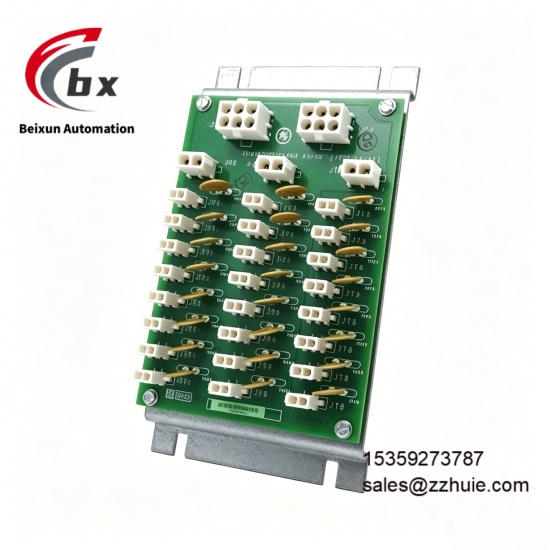

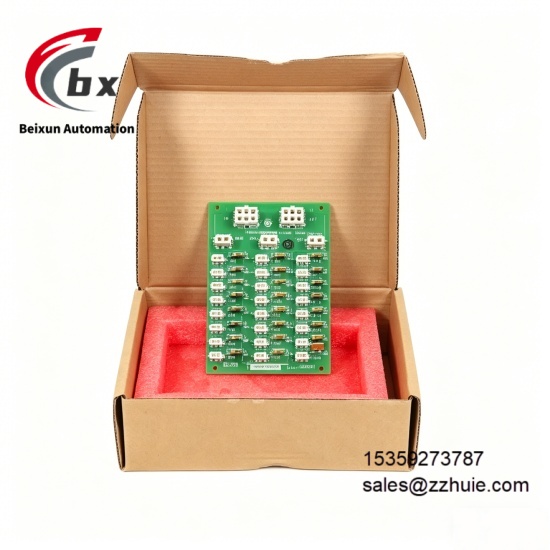

GE IS400JPDHG1A High density distribution board

GE IS400JPDHG1A High density distribution board

Specific Parameters

Device Type High-Density Power Distribution Board

Product Series Mark VIe (Speedtronic Mark VIe) Series

Input Voltage 28VDC

Output Voltage 600V

Output Current 13A

Operating Temperature Range -30℃ to 65℃

Storage Temperature Range -40℃ to 85℃

Dimensions 6.25 inches × 4.25 inches

Net Weight 3kg

Mounting Type DIN-Rail Mount

Power Supply Capacity Can Drive 24 I/O Packs and 3 Ethernet Switches

Expansion Mode Supports Daisy-Chain Connection Expansion

Protection Mode Positive Temperature Coefficient Fuse Protection

Input Power Supports 3-Way 28VDC Power Input (R, S, T)

Output Distribution 8 Outputs for Each R, S, T Channel

Ethernet Output 3-Way 28VDC Unprotected Ethernet Switch Outputs

Certification Standards CE, ISO

Product Performance

High-Density Power Supply Performance: Can provide 28VDC power for 24 I/O packs and 3 Ethernet switches at the same time, realizing centralized power distribution and meeting the multi-equipment power supply needs of distributed control systems.

Flexible Expansion Performance: Supports daisy-chain connection mode, can expand power supply capacity by adding additional JPDH series boards, adapts to control systems of different scales, and does not require reconstructing the power architecture.

Reliable Protection Performance: Each I/O pack connector circuit is equipped with positive temperature coefficient fuse protection, which can effectively prevent equipment damage caused by circuit overload and short circuit, and improve the safety of system operation.

Multi-Channel Input Performance: Supports 3-way 28VDC power input (R, S, T), realizing multi-channel power redundancy backup, ensuring uninterrupted power supply and continuous operation of the system.

Compact Structure Performance: Adopts optimized compact design, suitable for DIN-Rail mounting, occupies small space in the control cabinet, and is convenient for installation, deployment and later maintenance.

High Reliability Performance: Manufactured with industrial-grade durable components, it operates stably with low failure rate, can adapt to long-term continuous industrial operation needs, and reduces operation and maintenance costs.

Environmental Adaptability Performance: Wide temperature design can operate stably in the range of -30℃ to 65℃, withstands temperature and humidity fluctuations in industrial sites, has strong anti-interference ability, and adapts to harsh industrial working conditions.

Precise Output Performance: Adopts segmented output distribution design, with 8 outputs for each R, S, T channel, uniform power distribution, ensuring the stability and consistency of power supply for each equipment.
