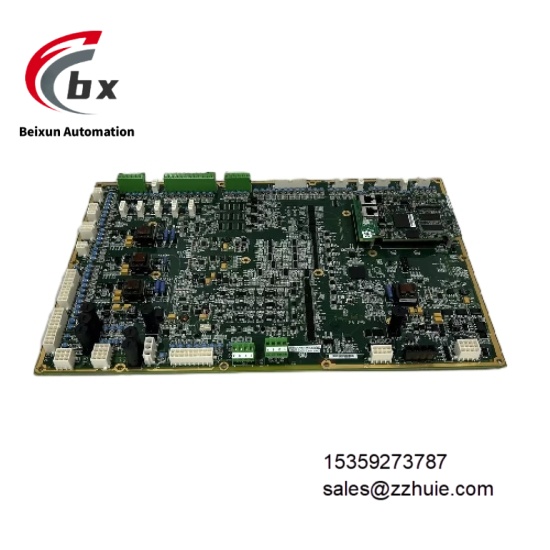

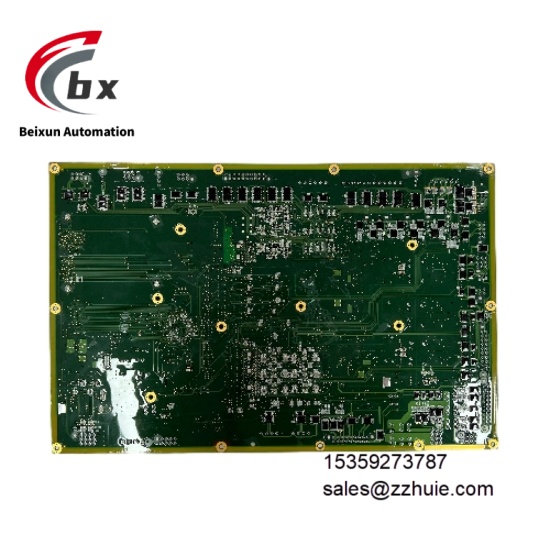

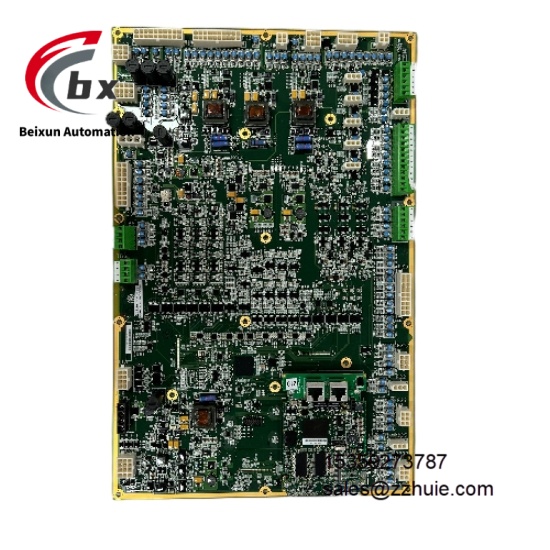

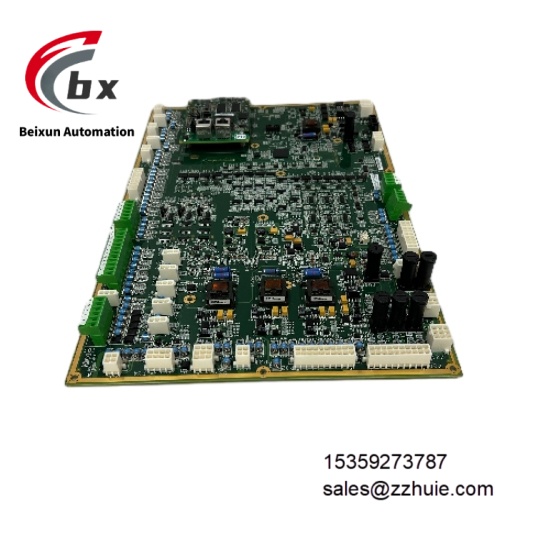

GE IS215WETAH1BB IS200WETAH1AGC Communication interface module

Specific Parameters

Electrical Parameters
- Supply Voltage: 24V DC ±10%, provided by Mark VIe system rack
- Communication Interfaces: 2×10/100 Base-T Ethernet ports (RJ45 connectors)
- Supported Protocols: Ethernet/IP, Modbus TCP, PROFINET, TCP/IP, UDP
- Communication Rate: 10Mbps/100Mbps (auto-negotiation)
- Isolation Level: 2.5kV AC between signal channels and system (1 minute)
- Protection Functions: Overvoltage protection, short circuit protection, ESD protection (±15kV contact discharge)
- Diagnostic Functions: Link status monitoring, protocol exception diagnosis, power fault detection
- Power Consumption: ≤8W under normal operation
Environmental Parameters
- Operating Temperature: -40°C to 70°C
- Storage Temperature: -40°C to 85°C
- Relative Humidity: 5% to 95% (non-condensing, no dew formation)
- EMC Immunity: Compliant with EN 61326-1 industrial grade standard
- Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
- Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
- Protection Class: IP20 (module itself)
Mechanical Parameters
- Dimensions: 40mm (W) × 175mm (H) × 250mm (D)
- Weight: Approximately 600g
- Mounting Method: Mark VIe standard rack mounting (compatible with IC698 racks)
- Housing Material: Flame-retardant aluminum alloy (UL 94 V-0 grade)
- Terminal Type: RJ45 communication terminals, Phoenix terminals (power interface), compatible with 16-22 AWG wires

Product Performance

Both modules adopt dedicated Ethernet control chips with data transmission delay ≤5ms, supporting full-duplex communication mode, which can process more than 1000 data links simultaneously, ensuring parallel transmission of real-time control signals and batch data. Integrated with protocol conversion engine, the conversion response time between different industrial protocols is ≤2ms, adapting to the interconnection needs of multi-device heterogeneous networks.

Adopting dual isolation and anti-interference circuit design, the common mode rejection ratio is ≥120dB, which can maintain stable communication links in strong electromagnetic industrial environments with packet loss rate <0.01%. Built-in comprehensive self-diagnostic system, it real-time monitors Ethernet link on-off, protocol frame format and power status, with fault diagnosis coverage ≥99%, triggering LED indicator alarm within 10ms after fault occurrence.

Fully compatible with GE Mark VIe controller and Historian data acquisition system, supporting online configuration of communication parameters and protocol types via Control ST software, enabling function expansion without shutdown. The mean time between failures (MTBF) is ≥400,000 hours, adapting to long-term continuous operation in industrial scenarios.
