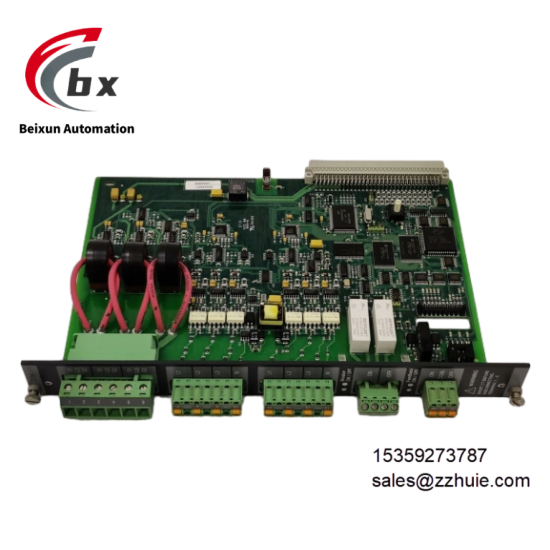

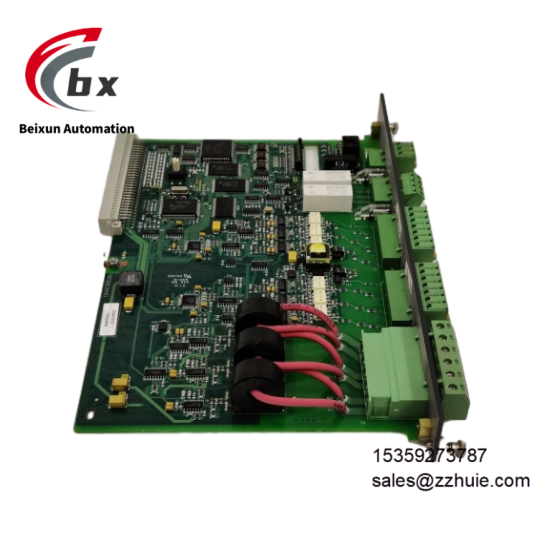

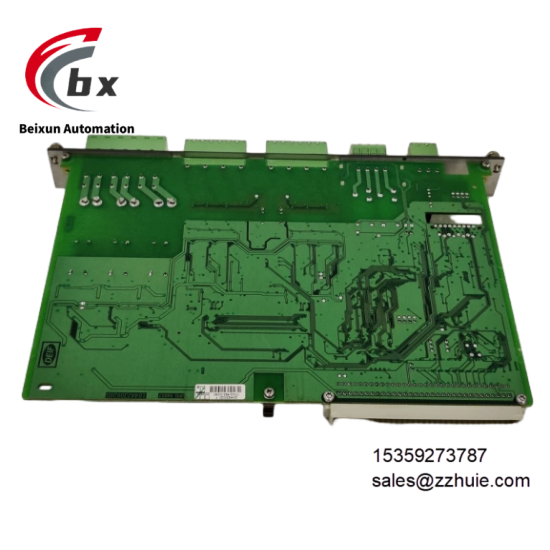

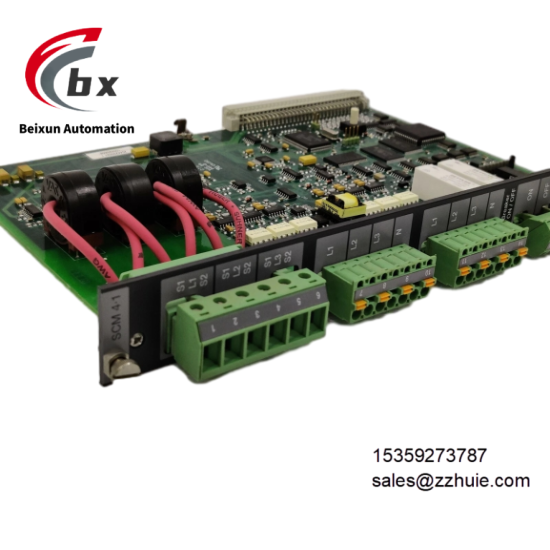

DEIF SCM4.1 Communication measurement and protection module

DEIF SCM4.1 Communication measurement and protection module

Specific Parameters

Brand DEIF, Product Series DEIF Delomatic 4 Series

Product Type Class 0.5 AC Measurement and Protection Module, Synchronous Control Module, DEIF Original Spare Part

ModelDEIF SCM4.1 (Common Order Numbers: 2044230022A, 2044230020D)

Country of Origin Denmark (Produced by DEIF original factory)

Compatible Devices DEIF DM-4 Series Control Systems, DEIF PCM4.3 Power Supply Control Module, Generators, Power Distribution Equipment, Power Grid Systems

Core Functions Three-Phase AC Parameter Measurement, Synchronous Control, Power Grid Protection, Relay Control, Fault Feedback, Main Program Configuration

Measurement Accuracy Class 0.5 (Complies with IEC Relevant Standards)

Voltage Measurement 2 x Direct Three-Phase Voltage Inputs (L1, L2, L3, N), Range 40-70Hz, Max 690Vrms; Range Extendable via Voltage Transformer (…/100 or …/110VAC)

Voltage Input Load Max 0.5mA or 0.3VA per Phase

Voltage Overload Capacity 130% Rated Voltage Continuously, 200% Rated Voltage for 10s, External Max 2A Slow-Blow Fuse

Current Measurement 1 x Three-Phase Current Input (L1, L2, L3), Compatible with Current Transformer Secondary 1A or 5A

Current Input Load Max 0.4VA per Phase

Current Overload Capacity 20Arms Continuously

Frequency Measurement Range 40-70Hz

Relay Outputs 2 Relay Outputs, 1 Sync Check Relay, 1 Trip Relay (for Generator Disconnection in Case of Fault)

Communication Interfaces 1 RS485 Interface (1000kbaud), 1 Ethernet Interface (10/100Mbaud), 1 USB Interface

Communication Protocols Supports Modbus and other Industrial Communication Protocols

Power Supply Voltage 24VDC

Power Consumption Typical 9W, Max 25W

Operating Temperature Range -25℃ to 70℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (Complies with IEC 529, EN 60529 Standards)

Physical Dimensions 30.48mm (6TE)

Physical Weight Approximately 0.3kg

Mounting Method 19-inch Rack Mounting, Compatible with 42TE or 60TE Standard Racks (Depth 180mm)

Configuration Method Fully Configurable via Main Application Program

Diagnostic Function Supports Cable Fault Detection (Open Circuit, Short Circuit), with Status Feedback Function

Protection Functions Vector Jump (δφ) Detection, Generator Electrical Fault Protection, Overload Protection

Product Material Industrial-Grade Self-Extinguishing Plastic Enclosure (Complies with UL 94 V1 Standard), High-Temperature Resistant Insulation Material

Customizable No

Certification Standards Complies with EN 61010-1, IEC 255-3, EMC Relevant Certification Standards

Warranty Period 12 Months

Product Performance

DEIF SCM4.1 is an original DEIF device with strong adaptability, which can be seamlessly integrated into DEIF DM-4 Series control systems, perfectly compatible with PCM4.3 power supply control modules and IOM Series input/output modules, with convenient installation and maintenance. The compact 6TE design saves rack space, and the spring cage pluggable terminals facilitate wiring and later maintenance. The product has high measurement accuracy, reaching Class 0.5 standard, which can accurately collect AC parameters such as three-phase voltage, current, frequency and power, and the measured data is transmitted to the main control module every cycle to ensure data real-time performance. The product has outstanding safety and reliability, with complete power grid protection and fault detection functions. Vector jump detection can quickly identify power grid abnormalities, and the trip relay can quickly cut off the generator in case of electrical faults to avoid equipment damage. The product has strong anti-electromagnetic interference ability, complying with EN 61000 Series standards, with a solid structure, which can operate continuously and stably in harsh industrial environments with wide temperature and dust, providing efficient and reliable support for the measurement, control and protection of industrial power systems.
