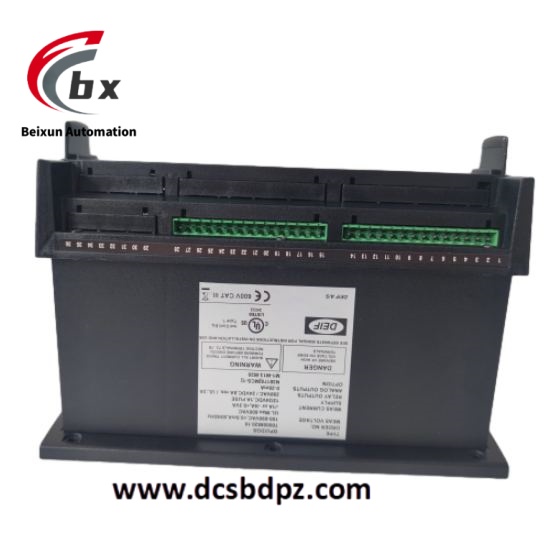

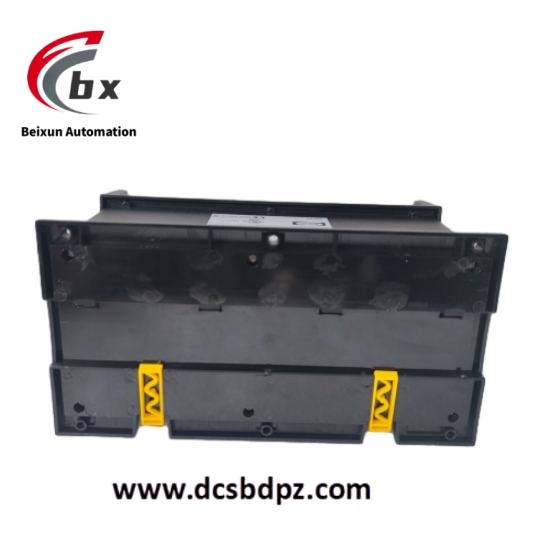

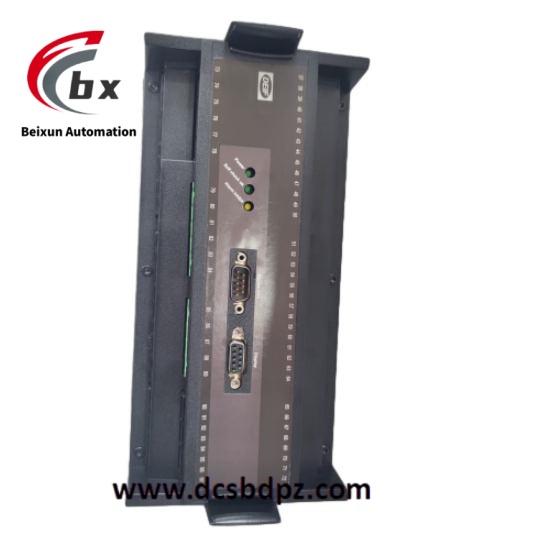

DEIF GPU/2/GS Multi functional controller module

Specific parameters
Measurement voltage: 100-690V AC, less than 0.5mA, 50/60Hz; UL/CUL rated maximum 600V AC.
Measurement current: -/1A or -/5A, less than 0.3VA.
Power supply: 12/24V DC, 2A fuse.
Relay output: 250V AC/24V DC, 5A; UL/CHUL: 250V AC/24V DC 2A resistor.
Analog output: 0-20mA.
Other options include N38175 (MCS-1), 460-6427 (MCS-1) 600V Cat III, and other optional configurations; The tightening torque is 5-7 pound inches; The wire size is AWG 30-12; The installation method is flat installation, with a weight of approximately 1.5kg.

Product Performance
High precision measurement: capable of accurately measuring power parameters such as voltage and current, providing data support for precise control of generator sets. For example, in complex power environments, it is possible to accurately measure and provide feedback on changes in voltage and current to ensure stable output of the generator set.
Reliable control functions: automatic start stop, load distribution, power synchronization and other functions are stable and reliable, which can effectively ensure the normal operation of the generator set and the stability of power supply. When multiple generator sets are running in parallel, accurate load balancing and distribution can be achieved.
Flexible communication capability: Equipped with communication interfaces, it can easily exchange and integrate data with other devices or monitoring systems, achieve remote monitoring and control, and facilitate operation and maintenance personnel to timely grasp the status of the generator set and carry out operations.
