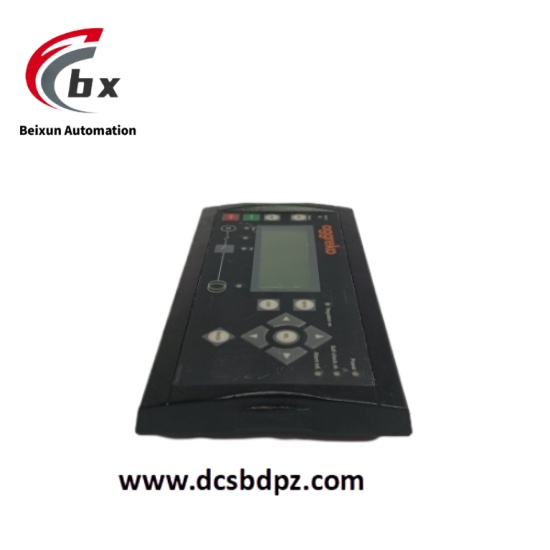

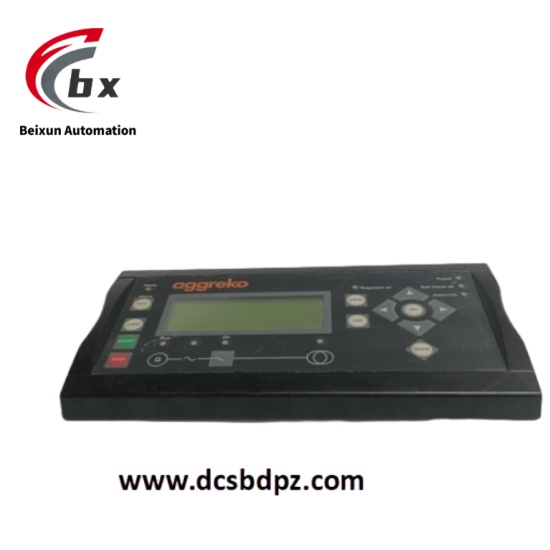

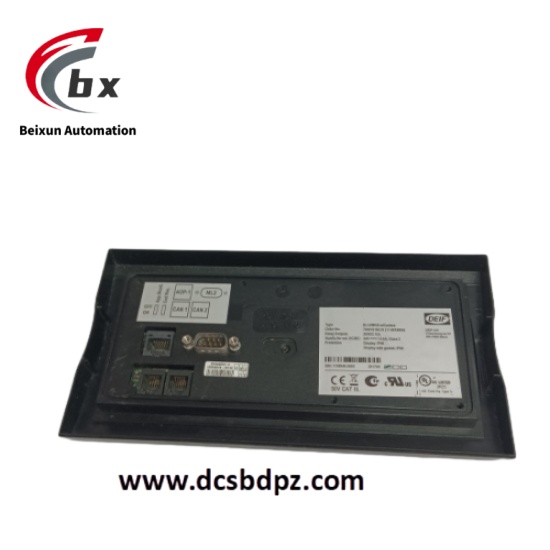

DEIF DU-2MKIII Digital display unit

Specific Parameters

Electrical Parameters
Supply Voltage: 24V DC/110V DC/230V AC (multiple options available)
Power Consumption: ≤10W (under rated power supply)
Input Signals: Analog 4-20mA, 0-10V; Digital RS485/Modbus RTU
Measurement Accuracy: ±0.5% full scale (voltage/current); ±1% full scale (power/frequency)
Display Range: Voltage 0-600V AC/DC; Current 0-5000A (with current transformer); Frequency 45-65Hz
Alarm Output: 2 relay outputs (normally open, 250V AC/30V DC, 5A)
Isolation Level: 2kV AC between input and output (1 minute)
Environmental Parameters
Operating Temperature: -25°C to 70°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing)
EMC Immunity: Compliant with EN 61326-1 industrial standard
Vibration Resistance: 10-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
Mechanical Parameters
Display: 4.3-inch TFT LCD, resolution 480×272, contrast ratio 300:1
Dimensions: 144mm×144mm×80mm (L×W×D)
Weight: Approximately 500g
Mounting Method: 144×144mm standard panel cutout mounting, wall-mounted mounting
Protection Class: IP54 (front panel); IP20 (back terminal)
Housing Material: ABS engineering plastic (flame rating UL 94 V-0)

Product Performance

DU-2MKIII adopts high-precision AD conversion chip and digital filtering algorithm, with measurement data update rate of 1 time/second, ensuring real-time and accurate parameter monitoring. It supports custom display interface, and can configure display parameters, alarm thresholds and output logic through buttons or software, with convenient operation.

The high-contrast LCD screen has good visibility in strong light environments, and the backlight brightness is adjustable. Built-in surge protection circuit (compliant with IEC 61000-4-5) can resist 2kV transient overvoltage. Wide voltage power supply design adapts to power requirements of different scenarios, with mean time between failures (MTBF) ≥150,000 hours.

Relay alarm response time ≤100ms, which can accurately trigger sound and light alarm or linkage protection action. It communicates seamlessly with mainstream PLC and DCS systems via Modbus protocol, with data transmission delay ≤200ms, supporting data integration of centralized monitoring platform.
