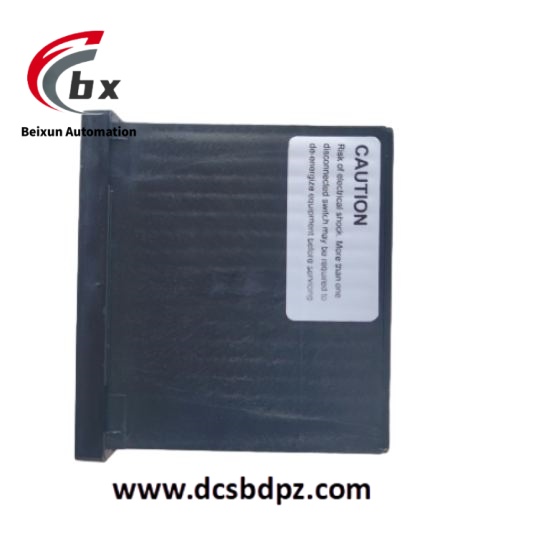

DEIF CSQ-3 Compact single unit controller

Accuracy: The phase difference accuracy is ± 2 electron angles, with a minimum scale of 1 ° or ± 10 and a minimum scale of 2 °; The voltage difference accuracy is ± 1-10%, with a minimum scale of 1%.
Display range: The phase difference is displayed as 10-40 electron angles; The frequency range is 40-70Hz.
Synchronization delay: The Td synchronization delay range is 0-1 second, with a minimum scale of 0.1 second.
Synchronization pulse length: The TR synchronization pulse length is 0-1 seconds, with a minimum scale of 0.1 seconds or ∞.

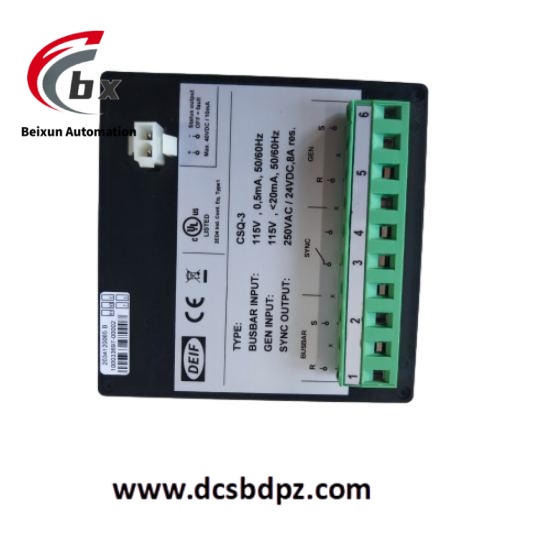

Contact capacity: 250V-8A -2000VA (AC); 24V – 8A – 200W（DC）。
Optoelectronic coupling output: limited to the marine version, system status disconnection indicates system failure, output is NPN optocoupler, maximum 40V, 10mA.
Working temperature: -10-55 ℃ (nominal); -25-70 ℃ (operating); -40-70 ℃ (storage).
Size: The panel cut is 92 × 92 ± 1mm, and the weight is less than 0.40kg.

Product Performance

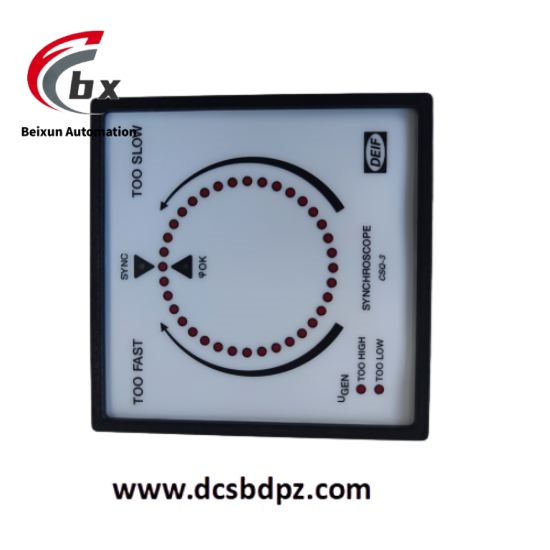

Versatile features: It has a multifunctional precision LED synchronous meter function, which can perform voltage measurement, frequency matching, phase angle comparison, voltage regulation, circuit breaker time compensation, etc.
Easy programming: All setpoints can be easily programmed through buttons.
High safety: It has high user safety and can protect users from dangerous voltage effects during setpoint programming.
Strong anti-interference ability: has high immunity to harmonic distortion.
Dead zone function: It has a dead zone function. When the bus voltage is lower than the preset dead zone bus level and the generator voltage exceeds 80% of the nominal value, the LED (SYNC) will light up. After the grid voltage is restored, CSQ-3 will remain in the dead zone function for 5 seconds.
