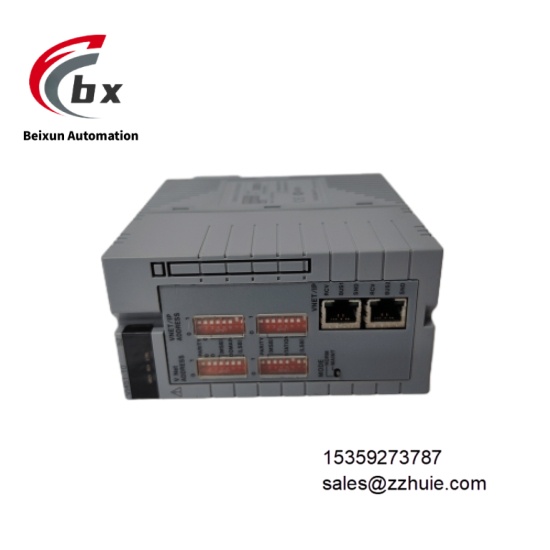

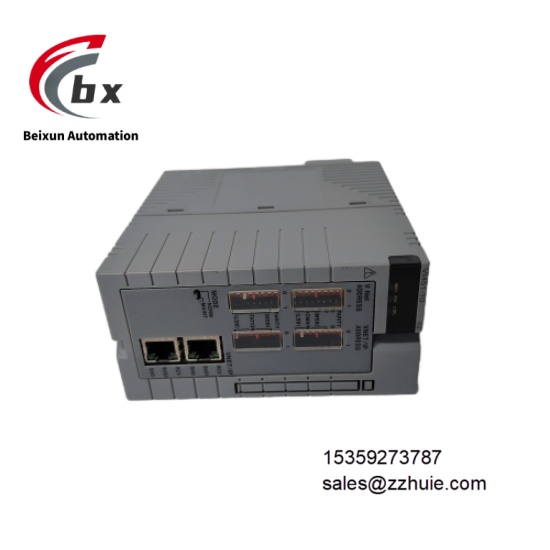

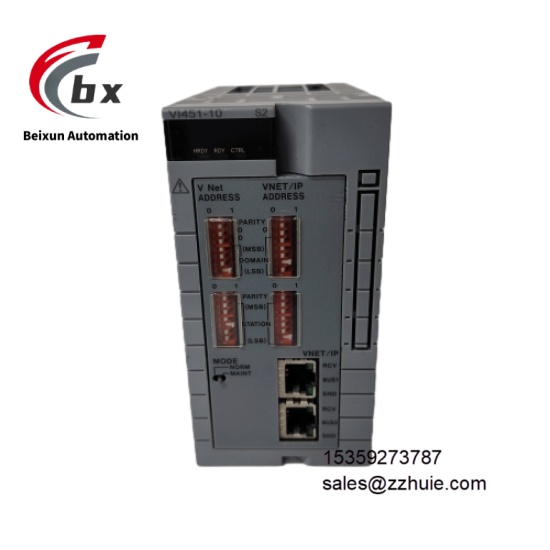

YOKOGAWA VI451-10 Multi functional high-precision module

YOKOGAWA VI451-10 Multi functional high-precision module

Specific Parameters​

Core and Signal Parameters​

Module Type Industrial-grade multi-functional high-precision module​

Series Yokogawa Industrial Automation Module Series​

Number of Input Channels 16​

Supported Encoder Types Absolute encoder, incremental encoder​

Encoder Interfaces RS-422, TTL​

Input Signal Types Analog signals (0-10V DC, 0-20mA), digital signals, pulse signals​

Output Signal Types Isolated voltage signals, isolated current signals, frequency signals​

Sampling Rate Range 1Hz to 100kHz​

Measurement Accuracy ±0.01%FS​

Resolution 16-bit​

Electrical and Communication Parameters​

Power Supply Voltage 24VDC​

Maximum Load Current per Channel 0.5A​

Communication Interfaces RS485, Ethernet​

Communication Protocols Modbus RTU, CANopen, Ethernet/IP​

Connector Type M12 Ethernet connector​

Protection Functions Overload protection, short-circuit protection​

Memory Capacity 32k bytes​

Environmental and Reliability Parameters​

Operating Temperature Range -20°C to +60°C​

Storage Temperature Range -40°C to +85°C​

Protection Class IP54​

Mean Time Between Failures Over 100,000 hours​

Certification Standards CE, UL, ATEX​

Overall Dimensions 100mm×100mm×96mm​

Weight 0.5kg​

Product Performance​

Strong signal adaptability, compatible with multiple types of encoders and signal inputs, covering the needs of complex industrial scenarios​

Excellent measurement accuracy, 16-bit resolution combined with ±0.01%FS accuracy ensuring the accuracy of position and speed data​

High response speed, 1ms fast response and wide-range sampling rate enabling real-time data acquisition and processing​

Good communication expandability, multi-protocol support and dual communication interfaces adapting to different control system architectures​

High operational reliability, multiple protection mechanisms and ultra-long fault-free time reducing system downtime risks​

Strong environmental tolerance, wide temperature operating range and IP54 protection resisting dust and vibration in industrial sites​

Good integration convenience, modular design and standardized interfaces simplifying installation, commissioning and system upgrading​

Strong data processing capability, built-in signal filtering and data storage supporting offline tracing and fault analysis​
