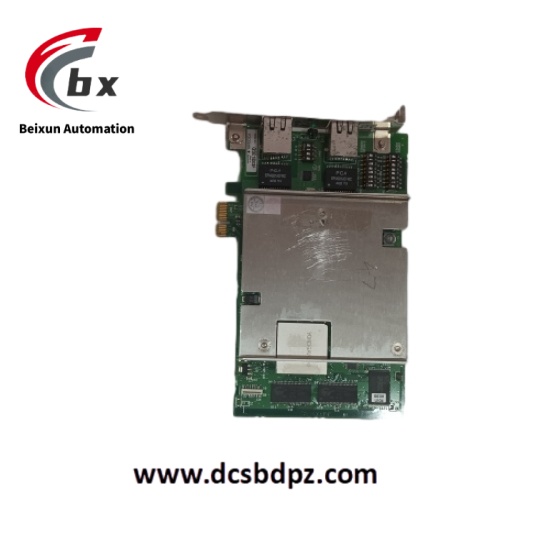

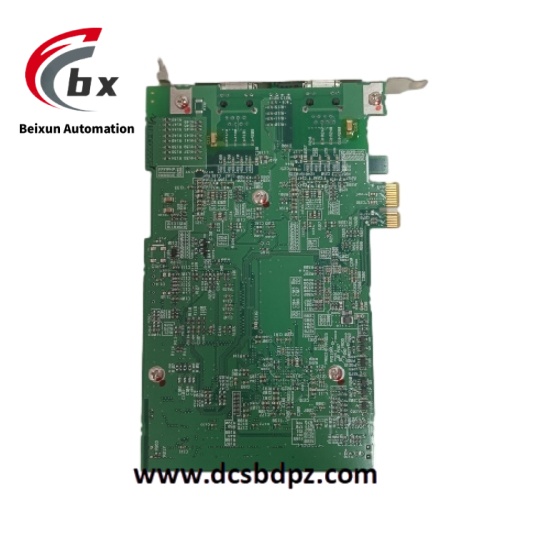

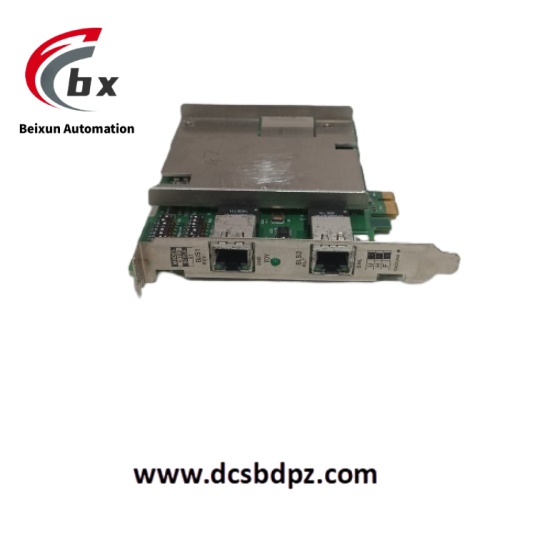

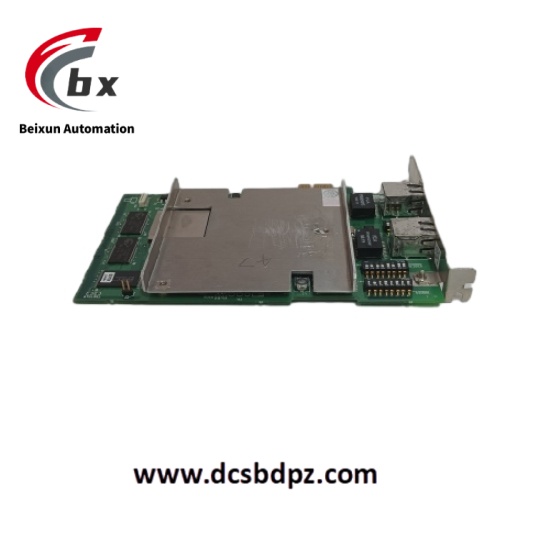

Yokogawa V1702 Vnet/IP interface card

Yokogawa V1702 Vnet/IP interface card

Specific Parameters

• Electrical Parameters
  • Operating Voltage: 3.3V DC ±9%
  • Maximum Power Consumption: 2.5A
  • Interface Type: PCI Express x1 (compliant with PCIe CEM 1.0a standard)
  • Communication Rate: 10/100/1000Mbps auto-negotiation
  • Transmission Medium: CAT5e Ethernet cable
  • Isolation Level: 1500V AC (1 minute)
• Environmental Parameters
  • Operating Temperature: 0°C to 55°C
  • Storage Temperature: -20°C to 75°C
  • Relative Humidity: 10% to 90% (non-condensing)
  • Vibration Resistance: 5-500Hz, 10g acceleration (compliant with IEC 60068-2-6)
  • Shock Resistance: 30g acceleration, 11ms duration (compliant with IEC 60068-2-27)
• Mechanical Parameters
  • Dimensions: 167mm (L) × 68mm (W) × 18mm (H)
  • Weight: Approximately 180g
  • Mounting Method: Standard PCI Express slot
  • Protection Class: IP20 (module itself)

Product Performance

The V1702 utilizes a dedicated communication protocol chip to ensure Vnet/IP network data transmission latency below 100μs, supporting multicast and broadcast communication modes. A built-in hardware encryption engine provides AES-128 data encryption to safeguard industrial control network information security. The module supports IEEE 802.3x flow control, automatically adjusting data transmission rates to avoid network congestion. With a mean time between failures (MTBF) exceeding 150,000 hours, it meets the requirements for industrial-grade continuous operation.
