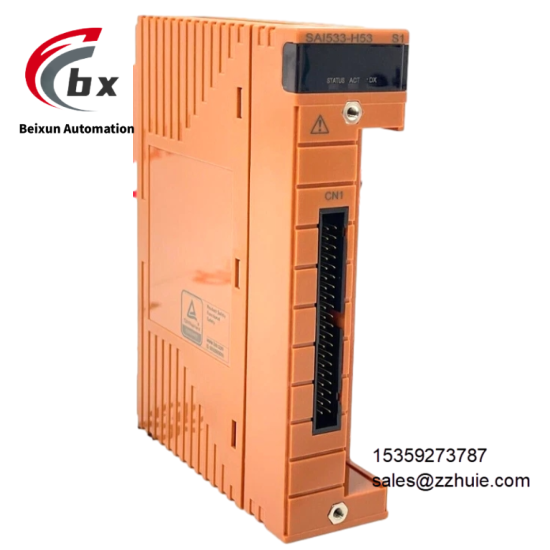

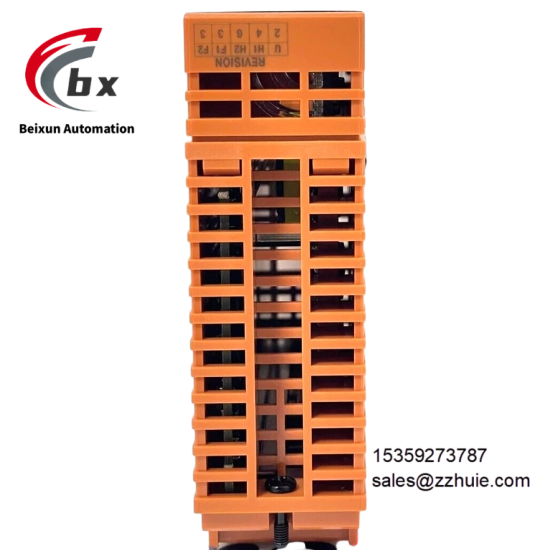

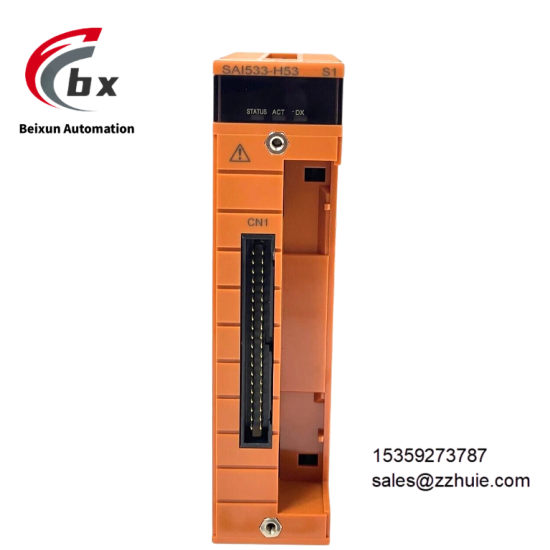

YOKOGAWA SAI533-H53 Analog output module

YOKOGAWA SAI533-H53 Analog output module

Specific Parameters

Brand YOKOGAWA, Product Series YOKOGAWA SAI533 Series

Product Type Analog Output Module, Industrial Control Signal Module, YOKOGAWA Original Spare Part

Model YOKOGAWA SAI533-H53

Country of Origin Japan (Produced by YOKOGAWA original factory)

Compatible Devices YOKOGAWA Centum VP Integrated Production Control System, Distributed Control System (DCS), Safety Instrumented System (SIS), Industrial Actuators, Valves, Sensors, Invensys Triconex, Westinghouse AMIKON Equipment

Core Functions Analog Current Signal Output, HART Communication, Module Isolation, Precise Signal Control, Dual Redundancy Support, Operation Diagnosis

Output Channels 8 Channels, Supporting Module Isolation

Rated Output Range 4 to 20mA

Extended Output Range 1.25 to 23mA

Accuracy ±48μA

Temperature Drift ±16μA/10℃

Allowable Load Resistance 230 to 600Ω (Rated Range)

Data Update Frequency 40ms

Withstand Voltage 1.5kV AC between Output Signal and System for 1 Minute

Communication Mode Serial Half Duplex, Start-Stop Synchronization, Supporting HART Protocol Revision 5.7

Transmission Speed 1200±2bps

Power Consumption 5V System: 320mA; 24V System: 300mA

Operating Temperature Range -20℃ to 70℃ (Complies with ISA Standard G3)

Storage Temperature Range -40℃ to 85℃

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (Needs to Be Installed in the Cabinet)

Physical Dimensions 107.5mm×32.8mm×130mm (Pressure Clamp Terminal or MIL Cable Type)

Physical Weight Approximately 0.26kg (Pressure Clamp Terminal or MIL Cable Type); Approximately 0.33kg (With Signal Cable Interface Adapter)

Mounting Method Modular Mounting, Compatible with Standard Industrial Control Cabinets

External Connection Pressure Clamp Terminal Blocks or MIL Cables

Terminal Type Pressure Clamp Terminals (No Explosion Protection)

Diagnostic Function Supports Partial Stroke Test (PST) Operation Diagnosis

Product Material Industrial-Grade Reinforced Metal Enclosure, High-Temperature Resistant Insulation Material

Customizable No

Certification Standards Complies with EMC Relevant Certification Standards

Warranty Period 12 Months

Product Performance

YOKOGAWA SAI533-H53 is an original YOKOGAWA device with strong adaptability, which can be seamlessly integrated into YOKOGAWA Centum VP and other integrated production control systems, perfectly compatible with distributed control systems (DCS) and safety instrumented systems (SIS), and supports dual redundancy design, which can greatly improve the reliability of system operation. The product has high control accuracy, outputs 4-20mA precise analog current signals, with an accuracy of ±48μA and low temperature drift, which can maintain signal stability in a wide temperature environment of -20℃ to 70℃, with a fast data update frequency, which can quickly respond to control commands and realize precise control of actuators, valves and other equipment. The product adopts module isolation design, has excellent voltage resistance, can effectively resist electromagnetic interference in industrial fields, ensure the stability and accuracy of signal transmission, and is equipped with HART communication function, which is convenient for data exchange and remote debugging with intelligent equipment. The modular design makes installation and maintenance convenient, supports two connection methods: pressure clamp terminals and MIL cables, adapts to different industrial on-site needs, and can operate continuously and stably in harsh industrial scenarios such as dusty and complex electromagnetic environments, providing strong guarantee for the accuracy and reliability of industrial process control.
