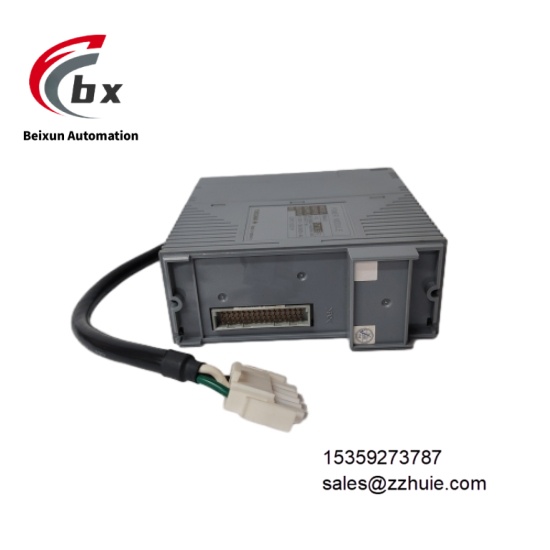

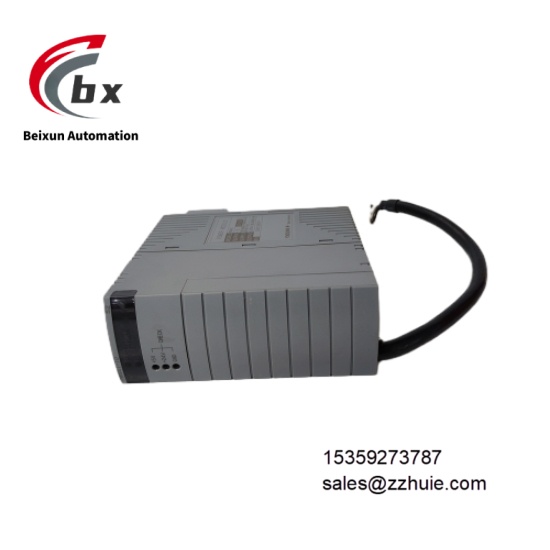

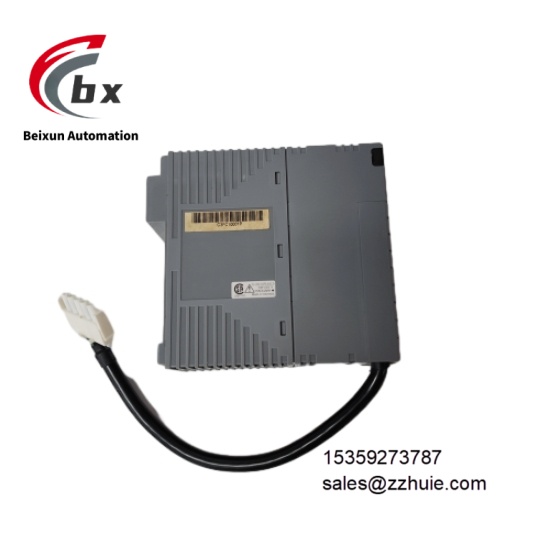

YOKOGAWA PW441-10 power module

YOKOGAWA PW441-10 power module

Specific Parameters​

Input and Output Parameters​

Module Type Industrial-grade modular power supply module​

Series V Net Power Series​

Input Voltage Range 85-264VAC or 120-375VDC​

Output Voltage 24VDC​

Rated Output Current 10A​

Rated Output Power 240W​

Conversion Efficiency Up to 92%​

Load Regulation ±0.5%​

Temperature Coefficient ±0.001%/°C​

Frequency Response 50Hz±0.1%​

Structure and Protection Parameters​

Compatible System STARDOM high-performance modular control system​

Installation Method Rack-mounted modular installation​

Protection Functions Overvoltage protection, overcurrent protection, short-circuit protection​

Overall Dimensions Approximately 100mm×154mm×25mm​

Redundancy Support Can form redundant power supply system with modules of the same series​

Environmental and Reliability Parameters​

Operating Temperature Range -40°C to +70°C​

Storage Temperature Range -40°C to +85°C​

Mean Time Between Failures Over 100,000 hours​

Certification Standards CE, UL, ROHS​

Protection Class IP65​

Product Performance​

Strong power supply stability, with load regulation accuracy of ±0.5% and minimal temperature drift, ensuring accurate operation of equipment​

Wide input adaptability, compatible with wide-range AC/DC input, adapting to power grid environments in different regions​

Excellent conversion efficiency, up to 92% efficiency reducing energy consumption and heat dissipation pressure, extending module life​

Comprehensive protection mechanisms, triple protection functions fully covering power supply risks, avoiding damage to load equipment​

High environmental tolerance, wide temperature operating range combined with IP65 protection, adapting to extreme industrial scenarios​

High operational reliability, ultra-long mean time between failures meeting continuous production needs​

Good system compatibility, seamlessly connecting with STARDOM control system, supporting redundant expansion​

Convenient installation and integration, compact structure simplifying rack layout and reducing system integration difficulty​
