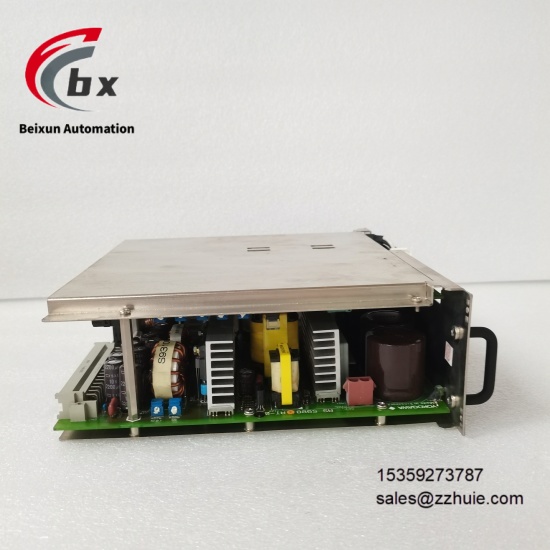

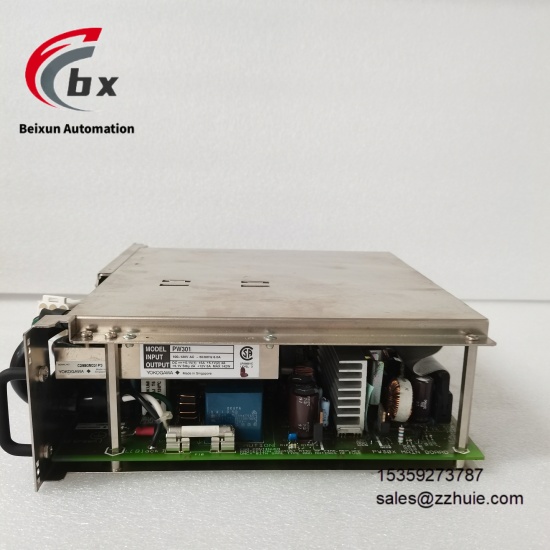

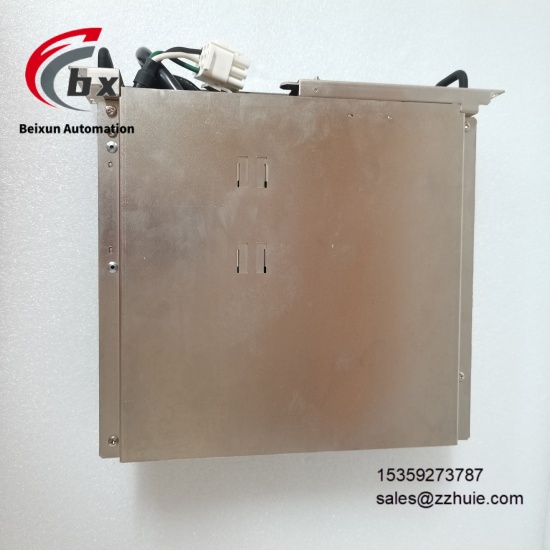

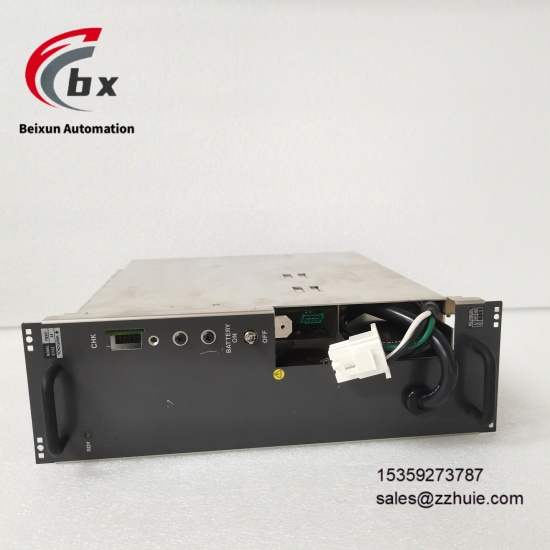

YOKOGAWA PW301 power module

Specific Parameters

Brand YOKOGAWA (Yokogawa Electric, Japanese Brand)

Product Series Yokogawa Industrial Automation Power Supply Module Series

Product Type Industrial Modular Power Supply Module

Model PW301

Input Voltage 100-120VAC, Frequency 50/60Hz

Output Voltage 5.1VDC

Output Current 15A

Input Current 6A

Physical Dimensions 27.9cm×10.2cm×27.9cm (Length×Width×Height)

Physical Weight 3.3kg

Operating Temperature Range -10℃ to 50℃

Storage Temperature Range -40℃ to 85℃

Relative Humidity 10% to 95%, no condensation

Protection Functions Overcurrent Protection, Overvoltage Protection, Overtemperature Protection

Compatible System Centum VP DCS system, Yokogawa process analyzers and industrial automation equipment

Design Features Modular structure, low electromagnetic interference, electrical isolation design

Certification Compliant with industrial EMC standards and relevant industry compliance certifications

Product Performance

Stable output performance can accurately provide 5.1VDC voltage and 15A current with low ripple noise, ensuring normal operation of high-precision control modules.

Built-in multiple electrical protection mechanisms immediately cut off output when overcurrent, overvoltage or overtemperature abnormalities are detected, preventing fault spread to downstream equipment.

Modular design simplifies installation and maintenance processes, supports hot-swap replacement, shortens system shutdown maintenance time and improves operation efficiency.

Industrial-grade wide temperature resistance and anti-interference capability enable long-term stable operation in high/low temperature, high humidity and strong electromagnetic interference environments with excellent reliability.

Deeply compatible with Yokogawa Centum VP DCS system, enabling seamless integration without additional adaptation, ensuring power supply compatibility and stability of the system.

High-efficiency power conversion design reduces energy loss and module heat generation, extends service life and achieves long mean time between failures.

Electrical isolation design effectively isolates input and output interference, ensures power supply purity and avoids signal interference to sensitive control components.

Compact structure design occupies small installation space, adapts to dense deployment requirements in industrial control cabinets and improves space utilization.
