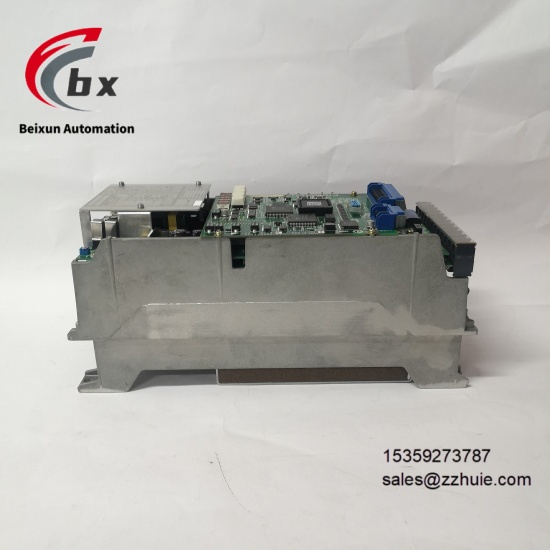

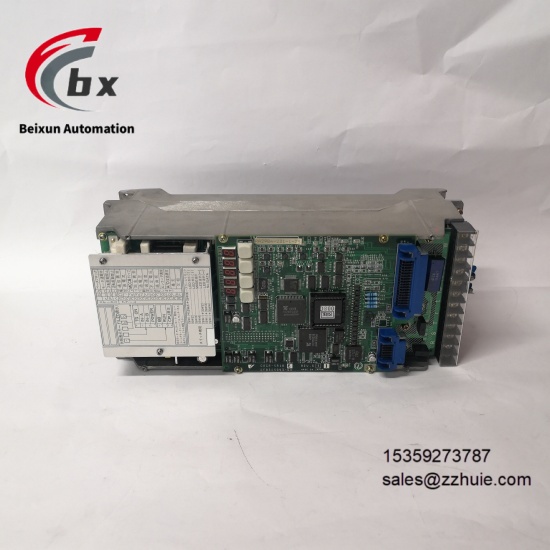

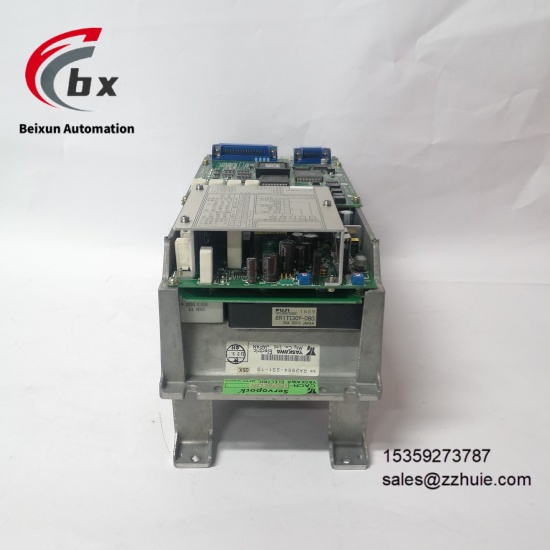

YASKAWA CACR-SR07BE12M Communication servo drive

YASKAWA CACR-SR07BE12M Communication servo drive

Specific Parameters​

Core and Function Parameters​

Product Type High-performance AC Servo Drive​

Series YASKAWA Sigma Series​

Manufacturer YASKAWA Electric​

Model CACR-SR07BE12M​

Control Method Current Vector Control​

Control Modes Position Control, Speed Control, Torque Control​

Compatible Motors M Series, F Series, G Series, S Series, D Series Servo Motors​

Communication Interface RS-485​

Communication Protocols CANopen, Modbus​

Protection Functions Over-current Protection, Over-heat Protection, Over-load Protection, Short-circuit Protection​

Protection Rating IP20​

Installation Method DIN Rail Mounting​

Cooling Method Air Cooling​

Electrical Parameters​

Input Voltage Three-phase AC 200V~230V​

Output Power 0.75kW​

Output Current 7.0A​

Output Frequency Range 0.1~400Hz​

Speed Control Range 1:100​

Overload Capacity 150% rated current for 60 seconds​

Physical and Environmental Parameters​

Overall Dimensions 77mm×134mm×135mm (W×D×H)​

Weight Approximately 0.7kg​

Operating Temperature Range -20°C to 60°C​

Storage Temperature Range -20°C to 60°C​

Product Performance​

Adopts current vector control algorithm with speed control range up to 1:100, providing excellent position and speed control accuracy​

Supports switching between three control modes, adapting to diverse motion control needs with strong functional flexibility​

150% rated current overload capacity lasts for 60 seconds, coping with instantaneous load fluctuations with high operational stability​

Integrates multiple circuit protection mechanisms, effectively preventing damage to motors and drives from abnormal working conditions with high safety​

Modular design with DIN rail mounting, compact size of 77mm×134mm×135mm, enabling convenient installation and maintenance​

Compatible with mainstream communication protocols, allowing quick access to automated control systems for centralized monitoring and debugging​

Wide temperature operating range from -20°C to 60°C, adapting to complex industrial on-site environments with strong environmental adaptability​
