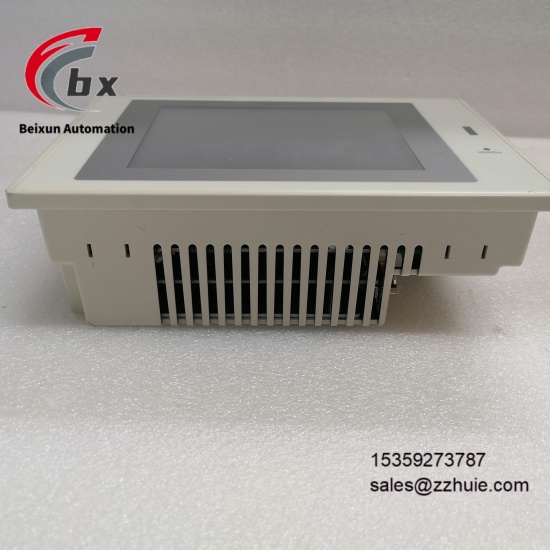

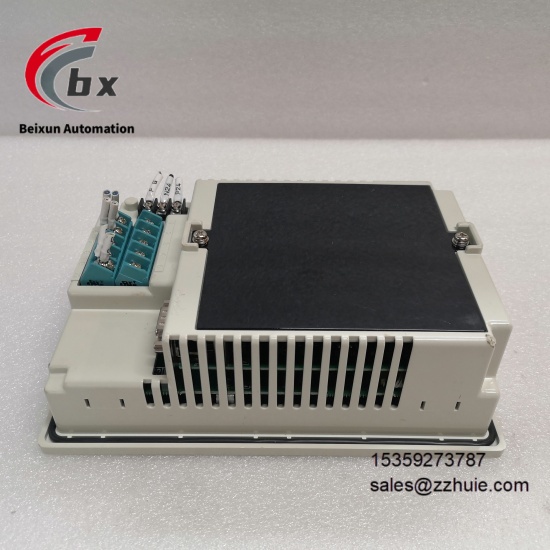

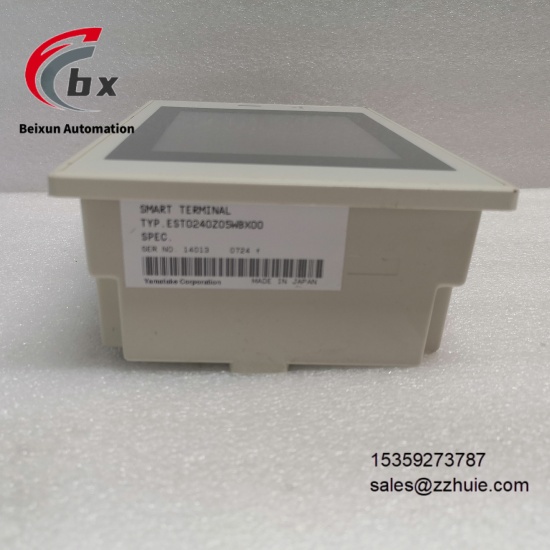

YAMATAKE EST0240Z05WBX00 Intelligent terminal interface panel

YAMATAKE EST0240Z05WBX00 Intelligent terminal interface panel

Specific Parameters

Brand YAMATAKE (Japanese Brand, now part of Azbil Group)

Product Series YAMATAKE EST Series Intelligent Terminal

Product Type Industrial-Grade Intelligent Terminal Interface Panel (HMI)

Model EST0240Z05WBX00

Display Type STN Color LCD Screen

Display Color 256 Colors

Resolution 320×240 Pixels (QVGA Level)

Display Area Size 101.6mm×76.2mm (Width×Height)

Pixel Pitch 0.10mm (Width) × 0.36mm (Height)

Touch Method Transparent Resistive Film Type (Analog Touch)

Touch Accuracy ≤±2mm

Supply Voltage 24VDC±15% (Adaptive Range 20.4VDC~27.6VDC)

Operating Temperature Range 0℃~50℃

Storage Temperature Range -20℃~60℃

Operating Humidity 20%~85%RH, No Condensation

Protection Level IP65 (According to IEC 60529 Standard)

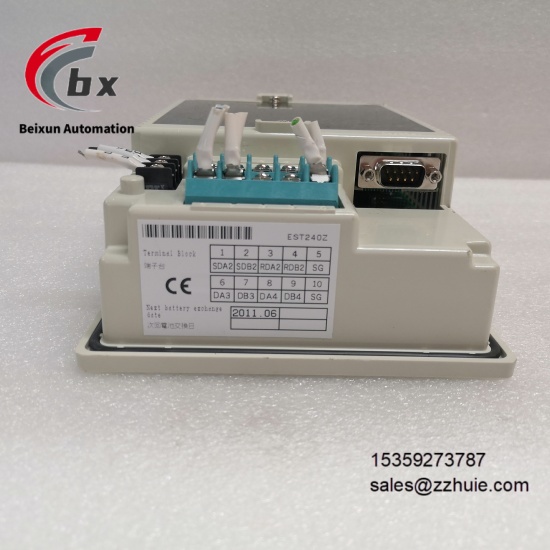

Communication Interfaces RS-232C, RS-485, IrDA Infrared Interface

Communication Protocols Supports Modbus RTU, Modbus ASCII, AZBIL Proprietary Protocol

Memory Capacity 1MB Flash Memory

Screen Capacity Up to 999 user-configured screens, 8 independent windows displayed simultaneously

Physical Dimensions 182mm×142mm×55mm (Width×Height×Depth)

Physical Weight 1.3kg

Anti-Interference Standard Compliant with EN 55011 Class A, EN 61000-4 Series Standards

Origin Japan

Product Performance

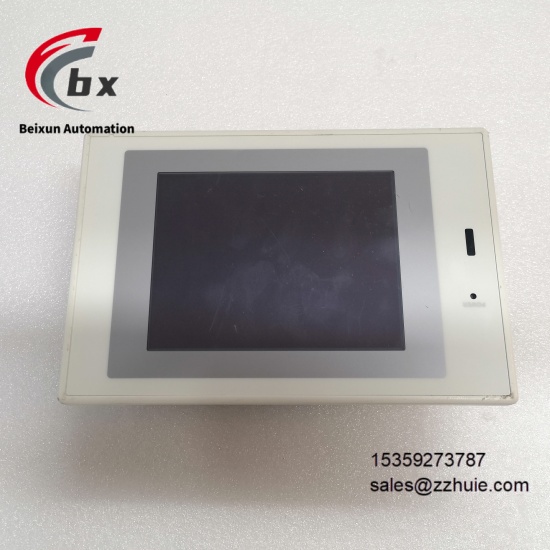

256-color STN color display combined with 320×240 resolution provides delicate images and clear color distinction, allowing parameter status to be marked by different colors, improving the visual recognition efficiency of operators and adapting to the information display needs of industrial sites.

The resistive touch screen supports operation with thin gloves, featuring high touch accuracy and fast response speed (≤5ms), with a single-point touch life of over 1 million times, adapting to high-frequency and multi-scenario operation needs in industrial sites.

Multi-communication interface and protocol compatibility enable direct connection to PLCs, DCSs and field devices of different brands. The RS-485 interface supports 32 slave devices and a transmission distance of up to 1200m, adapting to distributed industrial control systems.

IP65 protection level provides complete dustproof and low-pressure water jet protection. Combined with industrial-grade anti-interference design, it can operate stably in high-interference environments such as inverters and motors, as well as in dusty and slightly splashing working conditions.

Supports 999 configuration screens and 8 simultaneous windows display. Custom interfaces can be created through AP Editor software, integrating process flow, parameter setting, alarm prompt and other functions to meet the needs of complex monitoring scenarios.

24VDC wide voltage input adapts to industrial standard power supplies. Built-in hardware watchdog timer can automatically restart or alarm when the system is abnormal, ensuring long-term stable operation of the equipment and reducing fault losses.

LED backlight supports brightness adjustment and automatic energy-saving mode, with a backlight life of 10,000 hours and a display life of over 30,000 hours, meeting the durability requirements of long-term continuous operation of industrial equipment.
