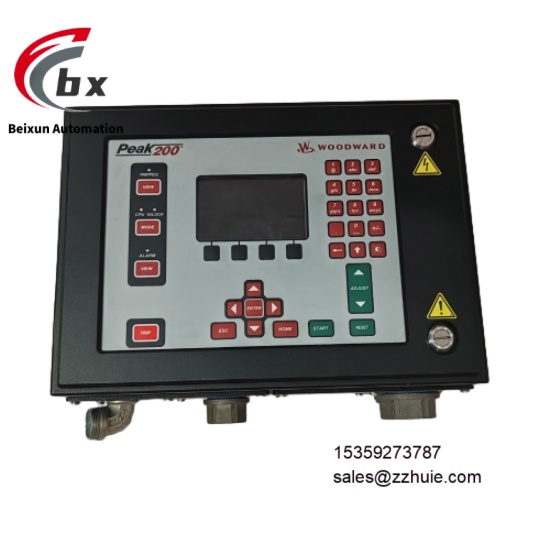

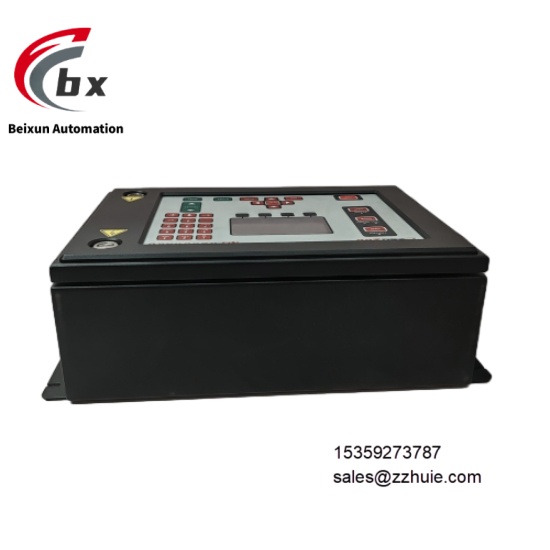

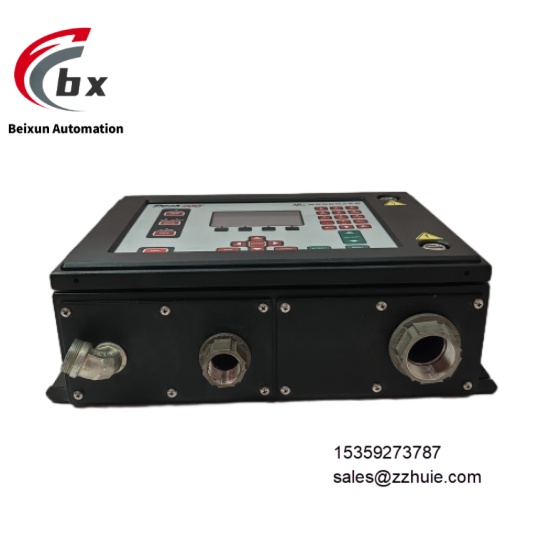

WOODWARD PEAK200-HVAC 8200-1501 digital controller

Specific Parameters

Electrical Parameters
Supply Voltage: 220V AC/DC ±10%, supporting high-voltage AC/DC input standard
Communication Interfaces: 1×Ethernet (SNTP clock synchronization supported), 1×RS485 (Modbus protocol)
Input Signals:
Analog Input: 4-20mA/0-10V signals for speed feedback, pressure, temperature, etc.
Digital Input: Standard basic channels, expandable to 16 discrete contact inputs (including external trip channel)
Output Signals:
Analog Output: 4-20mA DC (configurable for valve position command, speed monitoring, etc.)
Digital Output: Relay contact output (for alarm and trip signals)
Isolation Level: 2kV AC between signals and system (1 minute)
Protection Functions: Overspeed trip protection, bearing temperature over-limit alarm/trip, vibration over-limit alarm/trip
Power Consumption: ≤30W under normal operation
Environmental Parameters
Operating Temperature: -20°C to 60°C
Storage Temperature: -40°C to 85°C
Relative Humidity: 5% to 95% (non-condensing, no dew formation)
EMC Immunity: Compliant with industrial-grade EMC standards
Protection Class: IP65 (panel part), IP20 (module itself)
Certification Standards: ATEX Zone 2, Class I Div 2 hazardous area certification
Mechanical Parameters
Dimensions: 380mm (W) × 360mm (H) × 100mm (D)
Weight: 2.0kg
Mounting Method: Bulkhead or panel mounting
Housing Material: Cold-rolled steel plate with sulfur-resistant conformal coating
Display Configuration: Integrated full-color graphical display panel, with status LED indicators (trip, alarm, CPU health, etc.)

Product Performance

The controller adopts dual speed sensor redundancy design, automatically selects the highest frequency signal as speed feedback, supports critical speed avoidance (1 speed band) function to prevent the turbine from operating in resonance range. It integrates adaptive speed/load PID dynamics algorithm to achieve precise regulation of speed and load, and supports local and remote switching control of speed/load with remote analog setpoint function.

The overspeed protection system can real-time monitor peak speed with trip response time <100ms. It also has real-time monitoring and alarm/trip linkage functions for bearing temperature and vibration parameters, with fault diagnosis coverage ≥95%, supporting first-out fault indication and event recording. It realizes real-time clock synchronization via SNTP, and seamless integration with plant control systems through Ethernet and Modbus communication, supporting online configuration and parameter modification without shutdown maintenance.

The equipment adopts sulfur-resistant coating and wide-temperature design, operating stably in sulfur-containing corrosive and vibrating environments. It maintains form-fit-function consistency with the previous PEAK 150 controller, with 100% installation and replacement compatibility.
