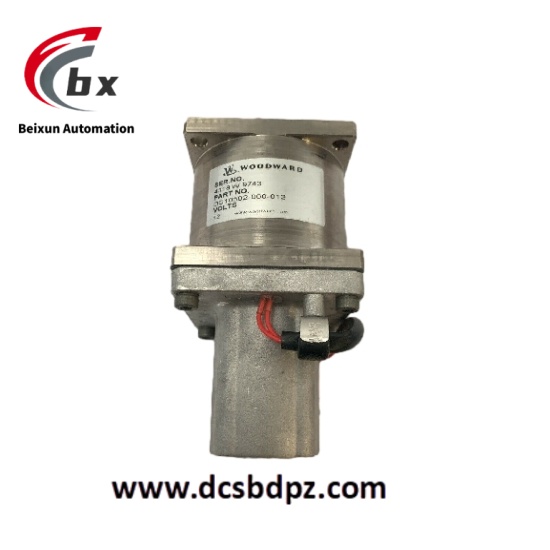

WOODWARD DC10502-000-012 Digital DC motor controller module
The WOODWARD DC10502 - 000 - 012 is a key control product under the Woodward brand and plays a core role in industrial automation control systems. In terms of function, it can accurately collect various sensor signals, covering common industrial parameter signals such as temperature, pressure, and flow. And according to the preset control strategies and algorithms, it performs high - speed operation and processing on these signals. The operation results are output in the form of electrical signals, thereby achieving precise control of actuators such as valves and motors. From a design perspective, this product adopts a highly integrated design, integrating multiple functions such as signal collection, processing, and output control into a compact module, effectively saving installation space. In terms of hardware configuration, it is equipped with a high - performance microprocessor to ensure fast and accurate data processing capabilities; high - quality electronic components are used to ensure the stability and reliability of the product in complex industrial environments. In terms of communication, it supports a variety of communication protocols, facilitating data interaction and collaborative work with other devices or upper - level control systems.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
WOODWARD DC10502-000-012 Digital DC motor controller module
Specific Parameters
- Input Voltage Range: 100 – 240V AC, 50/60Hz.
- Output Signal Types: 4 – 20mA analog signal, digital signal.
- Signal Acquisition Accuracy: ±0.5%FS.
- Data Processing Speed: Can process thousands of data per second.
- Operating Temperature Range: -20°C to +60°C.
- Protection Level: IP30.
- Dimensions: 150mm in length, 100mm in width, 50mm in height.
- Weight: 0.8kg.
- Communication Interfaces: RS – 485, Modbus RTU, etc.
- Memory Capacity: The memory for storing programs and data reaches [X]MB.
- Number of Input Channels: Equipped with [X] analog input channels and [X] digital input channels.
- Number of Output Channels: Has [X] analog output channels and [X] digital output channels.
Product Performance
- High – Precision Control: With accurate signal acquisition and powerful operation and processing capabilities, it has a very high control accuracy for actuators, which can meet the strict requirements for parameter control accuracy in industrial production.
- Fast Response: The internal high – performance microprocessor and optimized data processing algorithms enable the product to respond quickly when facing signal changes, and adjust the control output in a timely manner to ensure the efficient and stable operation of the industrial process.
- High Reliability: High – quality electronic components are selected and have passed strict quality inspections and industrial environment adaptability tests. It can work stably for a long time in a temperature range of -20°C to +60°C, under certain humidity and electromagnetic interference environments, reducing the probability of failures.
- Flexible Adaptability: Abundant input and output channels and support for a variety of communication protocols make it flexibly adaptable to different types of sensors, actuators, and upper – level control systems, and easy to integrate into various industrial automation control solutions.
- Easy Maintenance: It adopts a modular design. If a certain functional module fails, it can be quickly replaced and repaired, reducing maintenance costs and time. At the same time, it has a self – diagnosis function that can monitor its own operating status in real – time and feedback fault information in a timely manner
