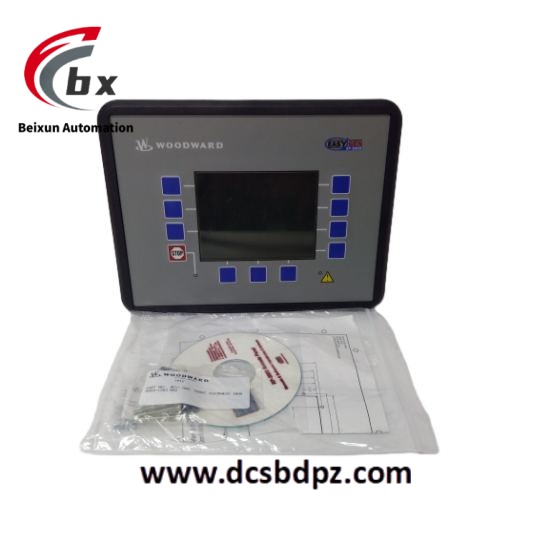

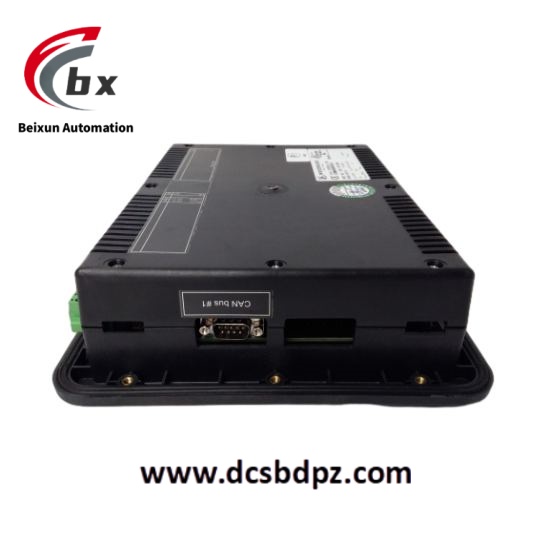

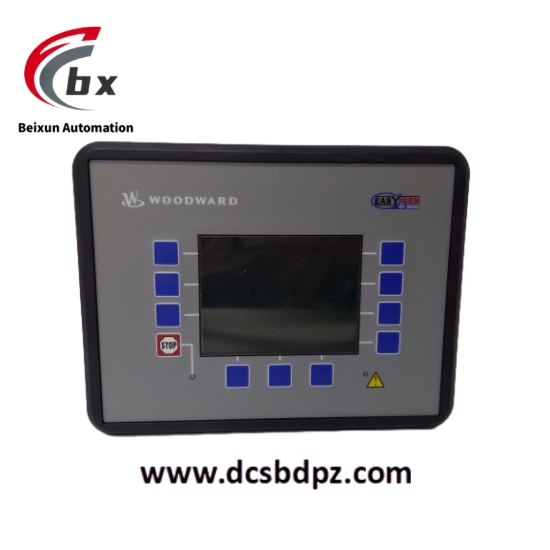

WOODWARD 8446-1019D High performance controller module

Input power supply: 48VDC ± 20% (wide voltage input, compatible with 24-60VDC)
Signal interface: 16 digital inputs (wet contacts), 8 analog inputs (± 20mA/± 10V)
Communication protocol: Native support for IEC 61850 GOOSE, DNP3.0, OPC UA
Environmental tolerance: -40 ℃~85 ℃ (IP66 protection level, dustproof, waterproof, and impact resistant)
Storage temperature: -55 ° C to+125 ° C
Control accuracy: Voltage fluctuation rate ＜ ± 0.2%, harmonic suppression THD ＜ 1.5%
Dimensions: 200mm (length) x 150mm (width) x 80mm (height)
Weight: 2kg

Product Performance
Precise control: By adopting advanced digital signal processing technology and control algorithms, high-precision control of equipment can be achieved, such as engine speed control, to ensure stable operation of the equipment, maintain it in the set working state, and reduce errors and fluctuations.
High reliability: Made of high-quality materials, with a sturdy and durable shell and good circuit design, it can work stably for a long time in harsh industrial environments such as high temperature, humidity, vibration, etc. It has strong anti-interference ability and can effectively avoid the influence of external factors on the control module, reducing the occurrence rate of failures.
Powerful diagnostic function: With comprehensive diagnostic capabilities, it can monitor its own working status and the operation status of connected devices in real time, quickly and accurately detect fault points, and provide detailed fault information for maintenance personnel to troubleshoot and repair, reduce downtime, and improve equipment availability.
Flexible configuration: Supports multiple configuration methods, and parameter settings and function adjustments can be made through human-machine interface (HMI) or toolkit configuration tools to meet personalized needs in different industrial application scenarios. Users can also perform secondary control programming to achieve customized control strategies.
Easy to integrate: The compact design and modular structure make it easy to integrate into existing industrial control systems, seamlessly integrating with other devices and systems. At the same time, it provides rich communication interfaces for data transmission and communication with upper computers, other controllers, or intelligent devices, achieving more complex control and management functions.
