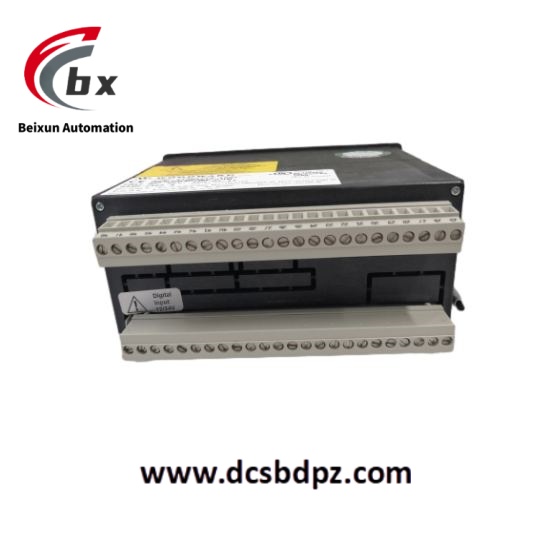

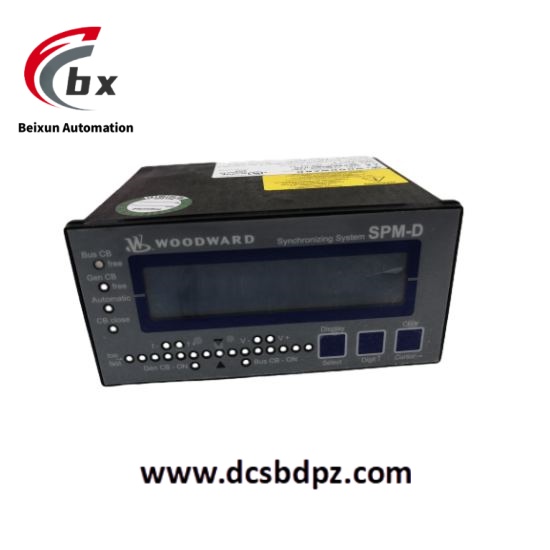

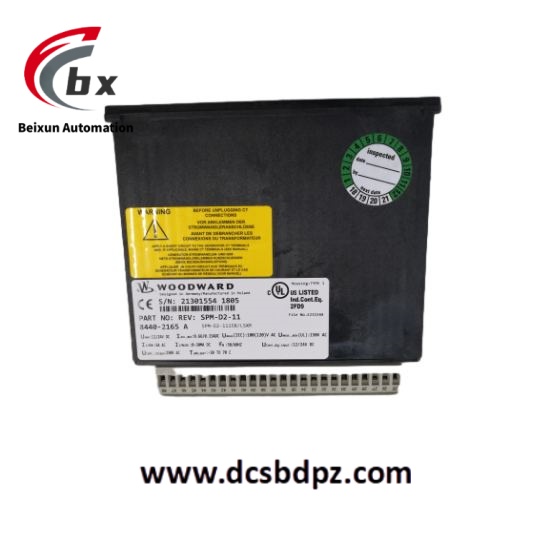

WOODWARD 8440-2165/8440-2165A Electronic governor control module
Specific parameters
Working voltage: 24VDC (± 15%)
Power consumption: ≤ 15W
Analog input: 4-20mA or 0-10V (configurable), supporting transmission of speed, pressure, temperature, etc
Analog output: 4-20mA (isolated), used for actuator control
Digital input/output: 8 DI (dry contacts), 4 DO (relay outputs)
Communication interface: RS485 (Modbus RTU), optional Profibus DP
Speed control range: 0-12000 RPM (configurable)
Speed regulation accuracy: ± 0.1% (steady state)
Load response time: ≤ 100ms (step load change)
Frequency response: DC-10Hz (closed-loop control)
Dimensions: 177mm × 127mm × 76mm (L × W × H)
Weight: Approximately 1.2kg
Installation method: DIN rail or panel installation
Environmental temperature: -20 ° C to+70 ° C (working), -40 ° C to+85 ° C (storage)
Protection level: IP20 (standard), optional IP65 (customized casing)
Product Performance
High precision control: using digital PID algorithm and adaptive control technology to achieve precise adjustment of speed and load, with fast dynamic response and strong anti-interference ability.
Redundancy design: Supports dual machine hot standby redundancy configuration (with redundant modules), ensuring seamless switching in case of system failure and improving reliability.
Flexible configuration: Parameter programming can be performed through Woodward ProAct software, supporting custom control logic, limit settings, and alarm thresholds.
Fault diagnosis: Built in self diagnostic function, real-time monitoring of sensor, actuator, and internal circuit status, supporting fault code storage and remote reading.
Compatibility: Seamless integration with Woodward actuators (such as electro-hydraulic actuators, electronic throttle valves) and third-party devices (such as PLC, DCS).
