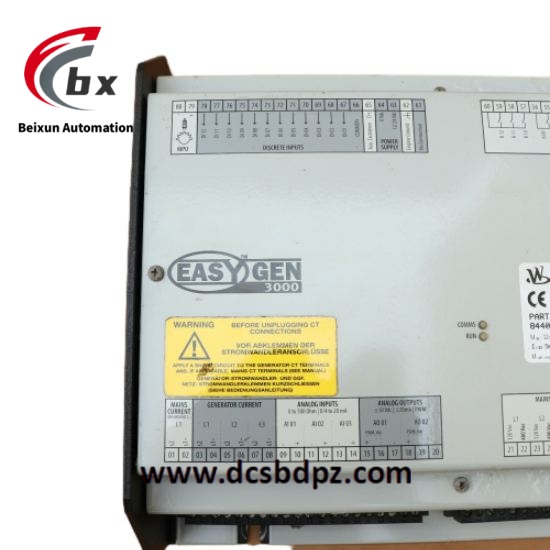

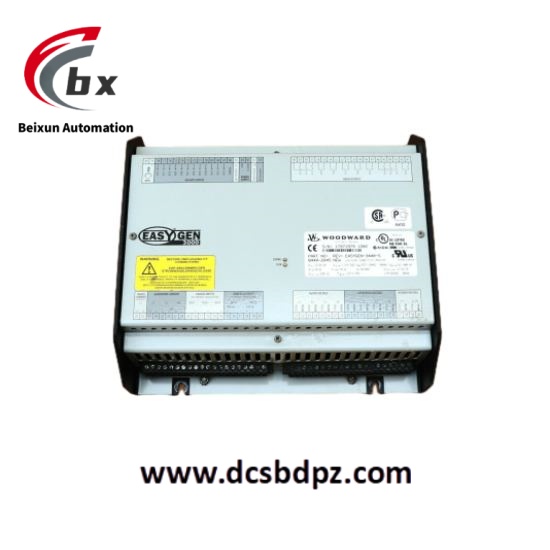

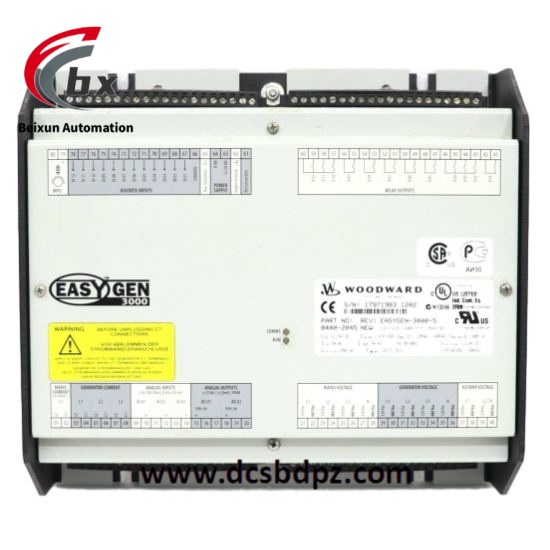

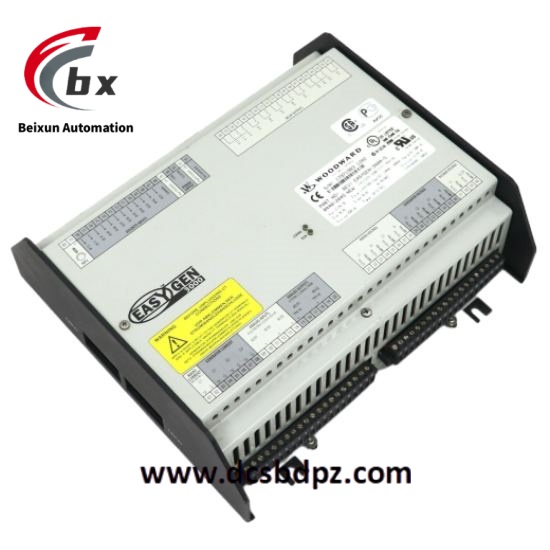

WOODWARD 8440-2045 High end multi fuel controller
Specific parameters
Power supply: 12/24 VDC (operating range 8 to 40 VDC).
Accuracy level: 0.5.
Analog input resolution: 16 bits.
Front panel dimensions: 282mm (width) x 216mm (height) x 96mm (depth).
Environmental humidity: 95%, no condensation.
Analog input type: 0-500 ohms/0-20 mA.
Inherent power consumption: maximum 17 watts.
Main setting range: 50-650000 Vac.
Language support: English, German, Spanish, French, Italian, Portuguese, Japanese, Chinese, Russian, Turkish, Polish, Slovak, Finnish, Swedish.
Product Performance
Intelligent control: adopting advanced algorithms and technologies, it can monitor the status and parameters of the generator set in real time, automatically adjust the generator output according to load demand, and ensure stable and reliable power supply.
Fault diagnosis and protection: With powerful fault diagnosis functions, it can detect abnormal conditions of the generator set and give timely alarms. At the same time, it provides various protection measures such as overload protection and undervoltage protection to prevent damage to the generator set.
Communication function: Supports multiple communication protocols and interfaces, such as CAN network communication (supporting standard SAE-J1939 protocol and several proprietary engine OEM protocols), serial Modbus RTU (slave) communication, can seamlessly integrate with other devices or systems, transmit operating status and data to the upper computer or remote monitoring center, and achieve remote monitoring and management.
User friendly interface: Usually equipped with an intuitive and easy-to-use interface, users can easily grasp the operating status of the generator set through the display screen and buttons, and perform operations such as parameter setting, monitoring, and troubleshooting.
Diverse load control functions: capable of detecting, decoupling, and emergency operation of AMF (Automatic Mains Fault), with bus closure function for system crashes; The automatic synchronization function includes phase matching, positive/negative sliding frequency, and parallel operation (dead zone); Supports proportional load sharing (equal or decreasing) for up to 32 generator units, regardless of the size of a single generator unit. It also has functions such as basic load, input/output control, asymmetric load (input through external basic load), and automatic start/stop based on load to improve the efficiency of the power generation system.
