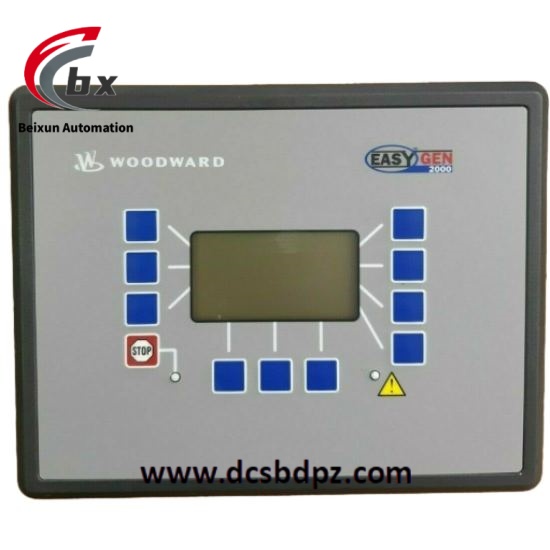

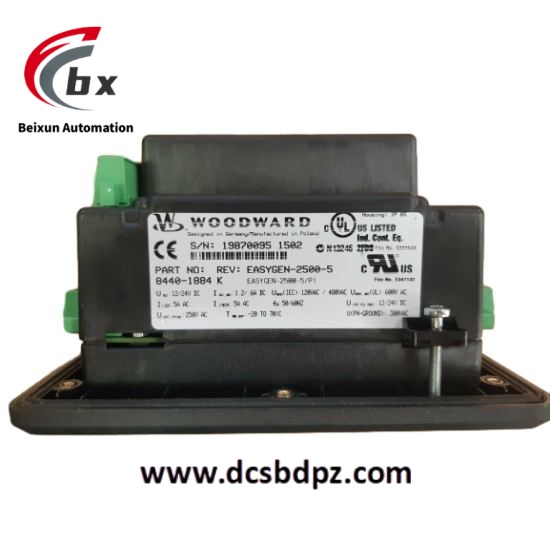

WOODWARD 8440-1884 K generator set controller
Specific parameters
Power supply: 12/24V DC.
Simulated resolution: 11 bits.
Monitoring accuracy: ≤ 1%.
Overvoltage (≤ 2min): 80V DC.
Rated frequency: Rated frequency ± 2%.
Storage temperature: -30 ℃ to 80 ℃.
Working temperature: -20 ℃ to 70 ℃.
Humidity: 95% non condensing.
Protection level: IP65.
Size: Length 100mm x Width 100mm x Height 50mm.
Weight: 500g.
Product Performance
Multiple operating modes: Automatic, stop, manual, and load/no-load testing modes can be achieved through discrete inputs.
Circuit breaker control: equipped with sliding frequency/phase matching synchronization, opening and closing control, circuit breaker monitoring and other functions to ensure the stability and safety of power output.
Load transfer characteristics: Supports open/close conversion, swapping, soft loading/unloading, main parallel connection, etc., which can smoothly transfer and distribute loads and reduce the impact on the power system.
Remote control: It can be remotely controlled through interfaces and analog/discrete inputs, making it convenient for operators to monitor and adjust the generator set from a distance. It can adjust speed, frequency, voltage, active power, reactive power, and power factor set points.
Multi language support: It supports 11 languages, including English, German, French, Spanish, Chinese, Japanese, Italian, Portuguese, Turkish, Russian and Polish, which is convenient for users in different regions to use and operate.
Display and User Interface: Equipped with a 128 × 64 point interactive LCD screen and soft keys, providing a clear and intuitive operating interface for users to set parameters and view status.
