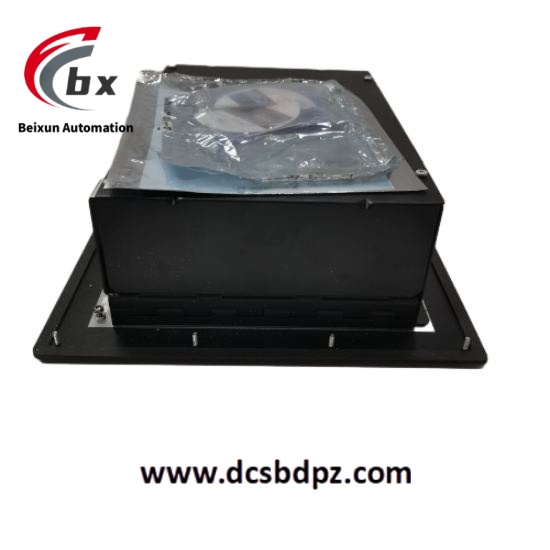

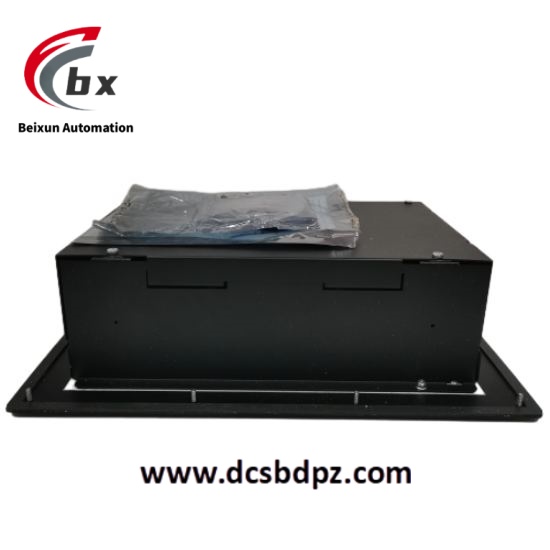

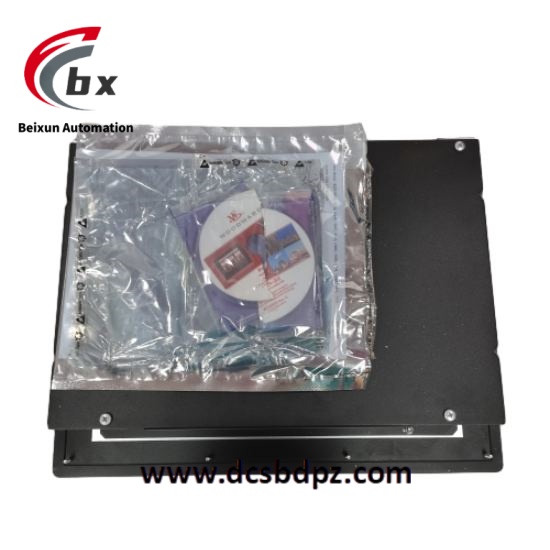

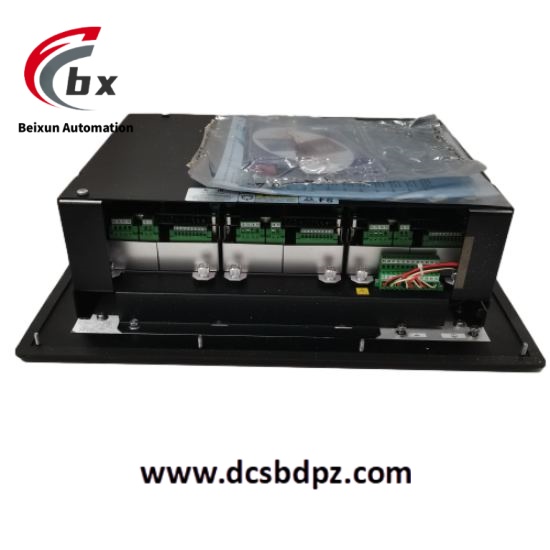

WOODWARD 8237-1600 Intelligent gas turbine fuel control valve

Specific parameters
Size: 163 × 38 × 58mm
Weight: 0.35kg
Input voltage: There are 2 high voltage inputs or 1 high voltage and 1 low voltage. The surge current is 10A at 115VAC and 20A at 220VAC
Working temperature: -20 ℃ to+60 ℃, humidity 95%
Storage temperature: -20 ℃ to+65 ℃, humidity 95%

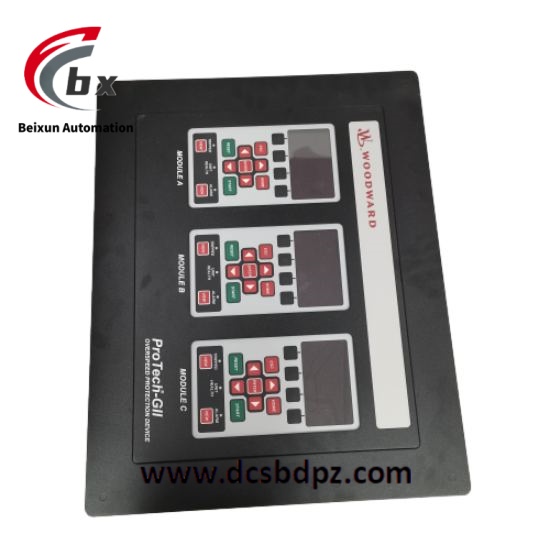

Display: 4.2-inch display screen with 15 buttons per module
Shell protection level: IP56, dustproof and waterproof (when installed correctly)

Product Performance
Accurate monitoring: Accurately monitor the speed and acceleration of the turbine rotor through active or passive magnetic sensors (MPU).
Multiple functions: equipped with overspeed and over acceleration protection functions, as well as alarm and trip logs with timestamps. It also provides various predefined testing routines, including automatic periodic testing routines, to help users verify system operation.
Flexible configuration: Its software has multiple configurable functions, such as configurable speed loss fault threshold and the addition of low-pass filters; The front panel display can also be configured, such as adding a configurable filter to the speed display, which can reduce changes in display speed and provide one decimal place accuracy below 100rpm.
Safe and reliable: the three module architecture is adopted, and its tripping output can be voted in two out of three configuration according to the model used to ensure high reliability in key applications, in line with API -670, API -612, API -611 and IEC 61508 (SIL -3) standards.
