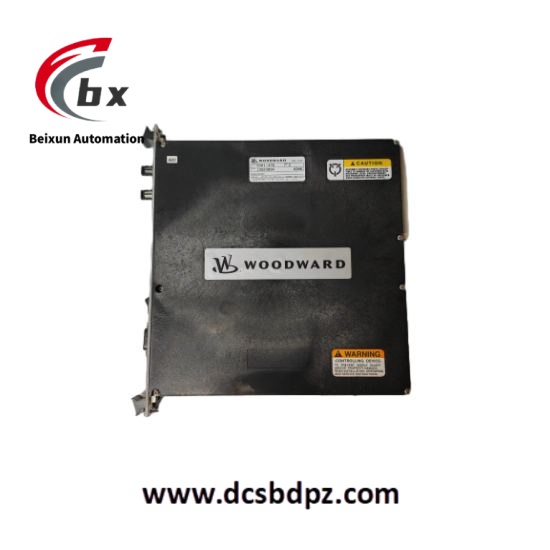

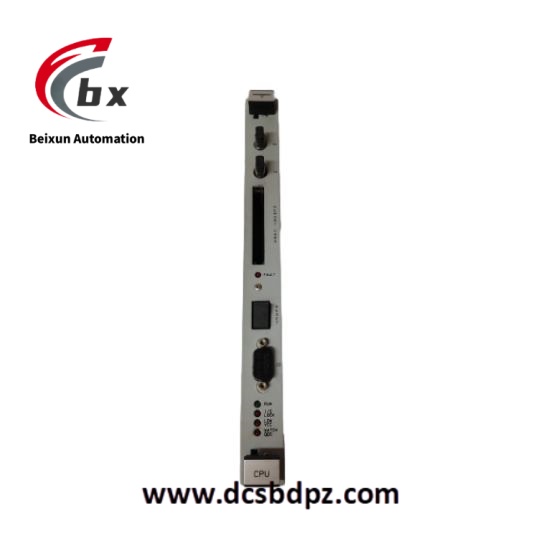

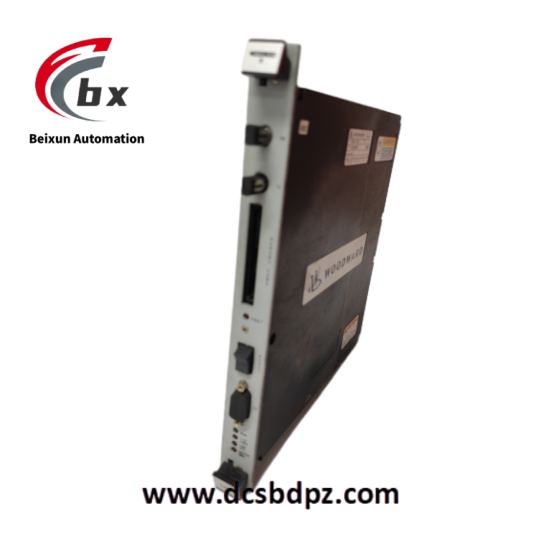

WOODWARD 5501-470 Governor controller module
Specific parameters
Input voltage: usually low voltage 18-36 VDC isolation, but there are also different specifications such as 120 VAC/DC.
Analog input: Generally has 4-20 mA channels (with loop power supply), which can be configured for any of the twenty-seven functions.
Control output: It has two 4-20 mA control outputs and eight C-type relay contact outputs.
Communication interface: equipped with 2 serial ports, 1 Ethernet port, and some also support 3 RS232 or 485 serial ports, which can be connected to various brands of PLCs to achieve data exchange.
Communication protocol: Supports multiple communication protocols such as Modbus, MQTT, OPC-UA, etc.
Shell type: such as IACS UR E10 (merchant ship), with characteristics of ATEX, IP-54, and pollution level 3.
Working temperature: -22 ° F to 158 ° F (approximately -30 ° C to 70 ° C).
Storage temperature: -22 ° F to 158 ° F (approximately -30 ° C to 70 ° C).
Processor: Adopting a 32-bit RISC CPU with a main frequency of 100 MHz.
Memory: Typically 256 KB RAM and 1 MB flash storage.
Screen specifications: Equipped with an 8.4-inch LCD screen, the screen brightness can reach up to 800 cd/m ².
Product Performance
Powerful control function: It can achieve various control functions such as PID control, motion control, speed control, etc. It also has an automatic start sequence for hot start and cold start, and can perform critical speed avoidance, zero speed detection, remote sag control, etc.
Flexible Scalability: With 36 discrete, analog, and special PAC I/O modules, it supports local, extended, and remote I/O bases, with a maximum of over 115000 I/O points, allowing for flexible system scaling according to requirements.
Convenient hot plugging function: The I/O module supports hot plugging without module placement restrictions or power budget limitations, making system maintenance and upgrades convenient.
Good communication capability: By supporting multiple communication protocols, it can communicate with PLCs from many brands such as Siemens, Beifu, Rockwell, etc. It can also achieve MQTT or OPC-UA communication through tx Visu Pro software, making it easy to build complex industrial control systems.
High reliability and stability: Compliant with hygiene design standards (DIN EN 1672-2, EHEDG/FDA 21 CFR 177.2006), the front panel is made of polyester coated stainless steel and has an IP69K protection level. It can withstand water, acid, and various chemicals in environments up to 80 ° C. The all metal casing and coated circuit board ensure stability in mechanical impact environments.
