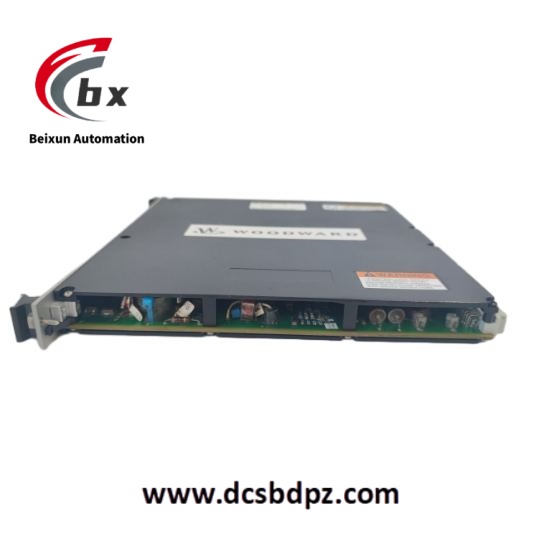

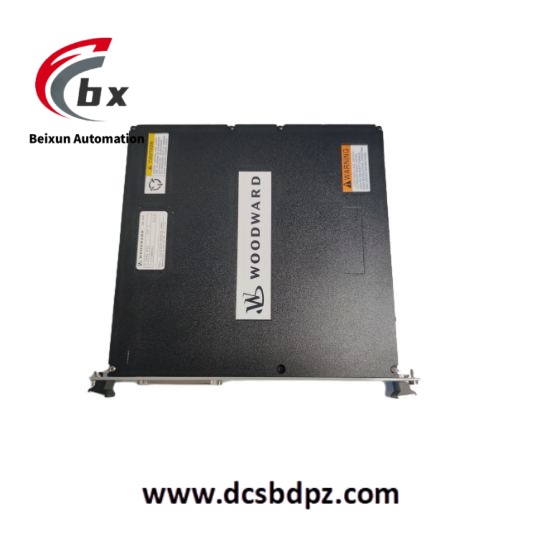

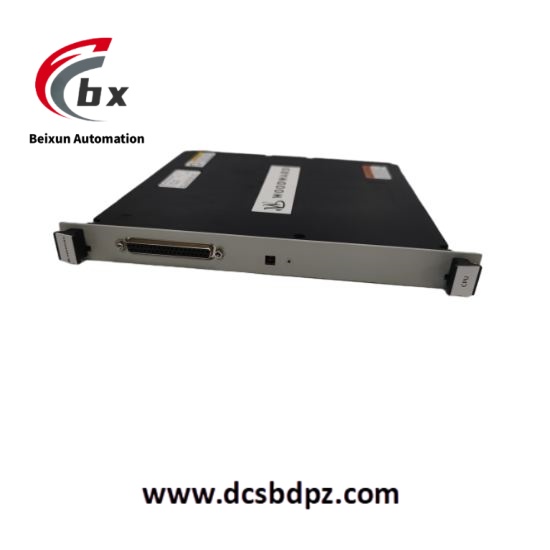

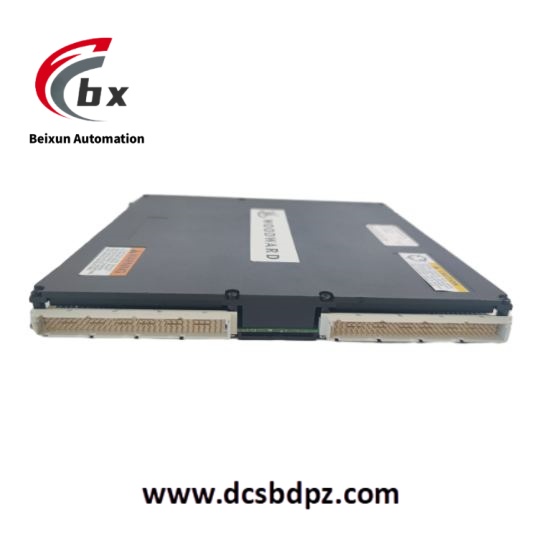

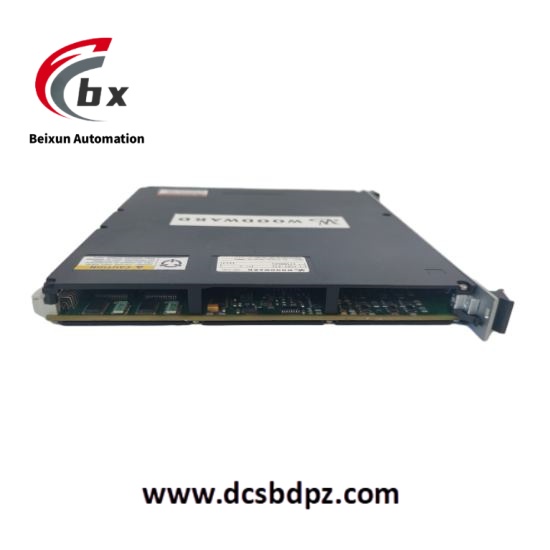

WOODWARD 5501-432 Actuator control module

Specific parameters
Size: 10.25 x 9.75 x 1 inch (26.04 x 24.77 x 2.54 cm)
Weight: Less than 2 pounds (before packaging)
Driver version: 200mA (maximum 245mA)
Feedback devices: 1 or 2 per channel
Maximum load resistance: 10/(maximum required current, in amperes)
Power requirements:+ 5V@0.5A ，+ 24V@1A
Position accuracy: ± 0.25% of full scale at 25 ° C (excluding sensor error)
Output current tolerance: ± 1% of full scale
Current readback tolerance: ± 5% of full scale

Product Performance
Precise control: With high positional accuracy, it can achieve precise control of the actuator and ensure the accurate operation of the equipment.
Multi channel control: It can simultaneously control two independent actuator channels, improving the integration and efficiency of system control.
Fault monitoring and diagnosis: Equipped with comprehensive fault detection functions, it can alarm for errors in excitation, feedback, drivers, etc., and monitor position errors, logic power supply, microcontroller activity, and CPU modules, making it convenient for maintenance personnel to discover and solve problems in a timely manner.
High reliability: Adopting reliable hardware design and manufacturing processes, it can operate stably in harsh industrial environments, ensuring the reliability and stability of the system.
