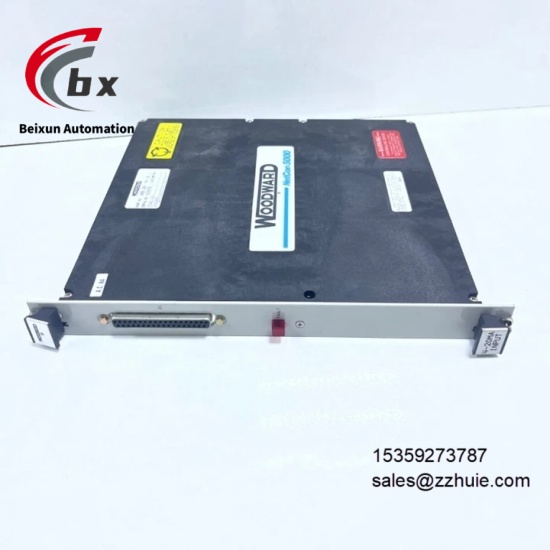

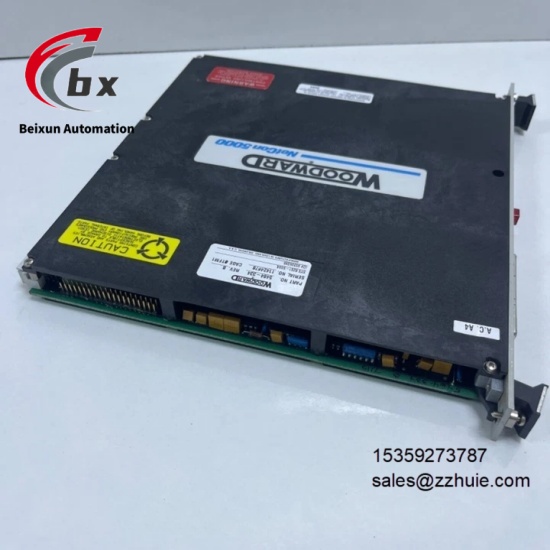

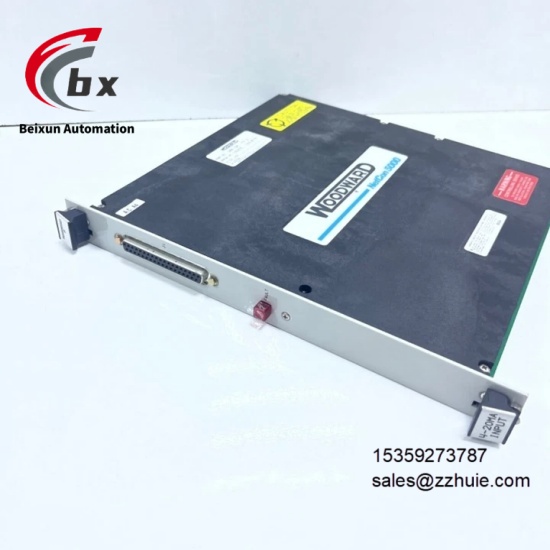

WOODWARD 5464-334 controller module
Specific Parameters
Brand WOODWARD
Product Series WOODWARD 5400 Series
Product Type Isolated 4-20mA Analog Input 8-Channel Module, I/O Module, Industrial Control Module, Original Spare Part
Model WOODWARD 5464-334
Country of Origin USA (Produced by WOODWARD original factory)
Compatible Devices WOODWARD Turbine Control Systems, Various Industrial Automation Control Equipment
Number of Input Channels 8 Isolated Analog Input Channels
Input Type 4-20mA Analog Signal
Isolation Protection 3000VDC
Supply Voltage 10-60VDC
Input Voltage 24VDC
Maximum Operating Current 12V
Operating Temperature Range -25℃ to +70℃
Storage Temperature Range Conforms to WOODWARD 5400 Series Standard Storage Temperature
Relative Humidity 5% to 95%, Non-Condensing
Physical Dimensions 30cm×20cm×25cm
Physical Weight 0.8kg
Mounting Method Conforms to WOODWARD 5400 Series Module Standard Mounting Method
Status Indication On-board LED Indicator, Turns Off After Self-test Completion, Lights Up When I/O Fault Occurs
Core Component On-board Microcontroller
Core Functions Analog Signal Acquisition, Isolated Signal Transmission, Power-on Self-test, Fault Detection and Indication
Product Material Industrial-Grade Flame-Retardant Circuit Board, Metal Protective Shell
Customizable No
Certification Standards Complies with CE, UL Certification Standards
Warranty Period 12 Months
Product Performance
WOODWARD 5464-334 is an original WOODWARD module with strong adaptability. It can be seamlessly integrated into WOODWARD 5400 Series turbine control systems, with convenient installation and no complex debugging, which can stably realize accurate acquisition and isolated transmission of 8 channels of 4-20mA analog signals.
Each channel is independently isolated with isolation protection up to 3000VDC, which can effectively avoid signal interference and ensure accurate and reliable measurement data. The on-board microcontroller realizes power-on self-test and fault detection, and the LED indicator can quickly locate I/O faults, making operation and maintenance convenient.
It has a wide supply voltage adaptation range, industrial-grade packaging design, excellent anti-electromagnetic interference and anti-vibration capabilities, strong wide temperature adaptability, can operate stably in harsh industrial working conditions from -25℃ to +70℃ for a long time, and meets the long-term operation needs of turbine control scenarios.
It has a solid structure and light weight, good environmental adaptability and operational stability, can be directly connected to various industrial automation control equipment, provides stable signal support for the precise control of turbine control systems, and reduces operation and maintenance costs.
