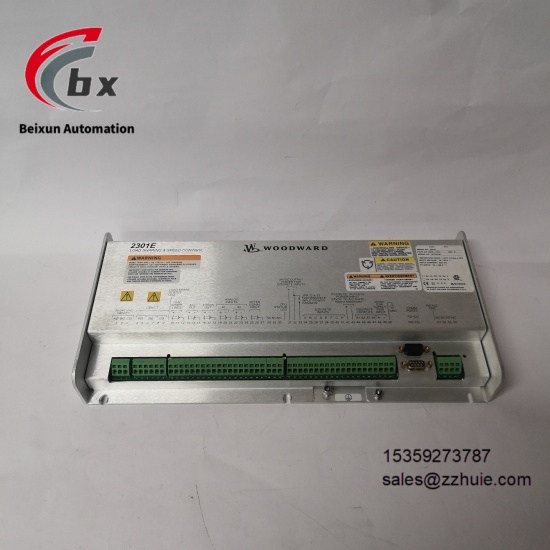

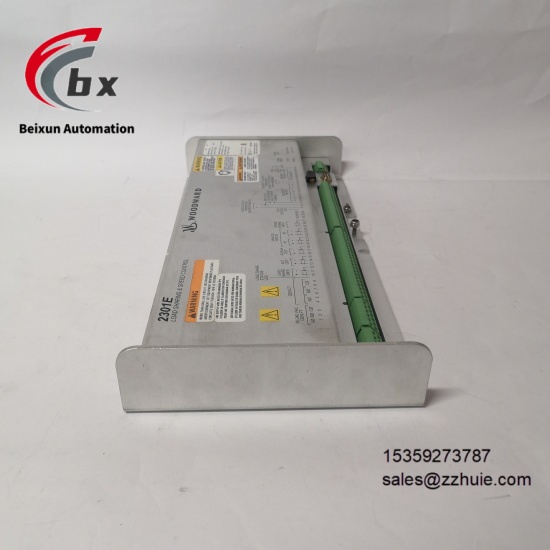

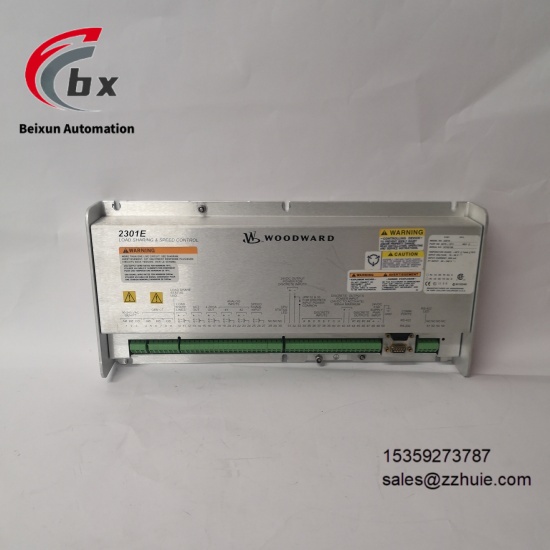

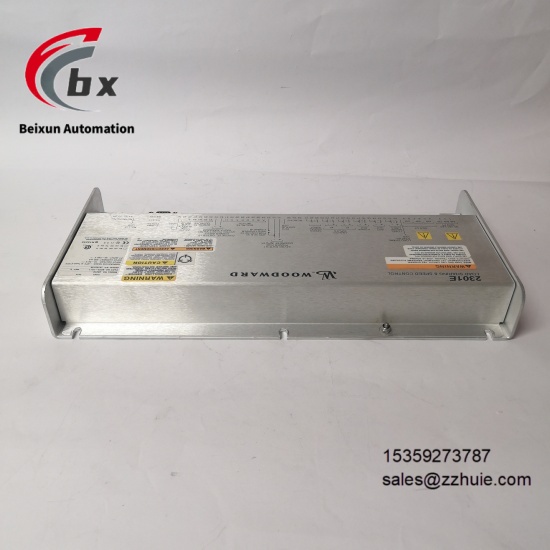

WOODWARD 2301E 8273-1011 Digital control module

WOODWARD 2301E 8273-1011 Digital control module

Specific Parameters​

Electrical Parameters​

Operating Voltage 24VDC, supporting stable input without fluctuation​

Output Voltage 0~10VDC, meeting actuator control requirements​

Current Capacity 5A, adapting to peripheral power supply loads​

Input Channels 8 total channels, including 4 analog inputs and 4 digital inputs​

Output Channels 4 total channels, including 2 analog outputs and 2 digital outputs​

Communication Protocols Compatible with Modbus protocol​

Communication Interfaces Equipped with RS485 interface, supporting data interaction and remote configuration​

Protection Features Built-in overvoltage protection, overcurrent protection, short circuit protection, overtemperature protection​

Control Accuracy Speed control accuracy ±0.25%, ensuring adjustment accuracy​

Certification Standards Compliant with relevant certification standards for industrial control equipment​

Mechanical Parameters​

Overall Dimensions 100mm×50mm×20mm, compact and lightweight structure​

Weight Approximately 0.15kg, lightweight design facilitating deployment​

Mounting Method Rack or panel mounting, compatible with control cabinet layout​

Housing Material Industrial-grade high-strength material with impact resistance and insulation performance​

Connection Method Plug-in terminals, compatible with standard control cables​

Protection Rating IP20, suitable for indoor industrial control cabinet environments​

Status Indication Equipped with power, operation, fault LED indicators to feedback working status in real time​

Environmental Parameters​

Operating Temperature -40℃ to 70℃, operation without derating over the entire temperature range​

Storage Temperature -55℃ to 85℃, meeting extreme storage and transportation requirements​

Relative Humidity ≤95% (non-condensing), suitable for high-humidity industrial scenarios​

Vibration Resistance Complies with industrial equipment vibration standards, withstanding conventional operation vibrations​

Shock Resistance Withstands mechanical shocks during installation and transportation, with stable performance​

EMC Compliance Meets standard anti-external electromagnetic interference capability, adapting to engine operating environments​

Product Performance​

Excellent control accuracy: ±0.25% speed control accuracy ensures stable generator speed​

Efficient load sharing: Supports load sharing among multiple generators to avoid single-machine overload​

Flexible mode adaptation: Three operating modes switchable to meet different operating scenario needs​

Comprehensive channel configuration: Multiple types of input and output channels adapt to sensor and actuator connection​

Reliable communication function: RS485 interface enables remote configuration and monitoring, simplifying operation and maintenance processes​

Comprehensive protection mechanisms: Multiple electrical protections and fault diagnosis reduce equipment damage risks​

Strong environmental adaptability: Wide temperature operation design tolerates high/low temperature and high-humidity industrial working conditions​

Wide compatibility: Compatible and integrable with 2301A, 2301D series load sharing modules​
