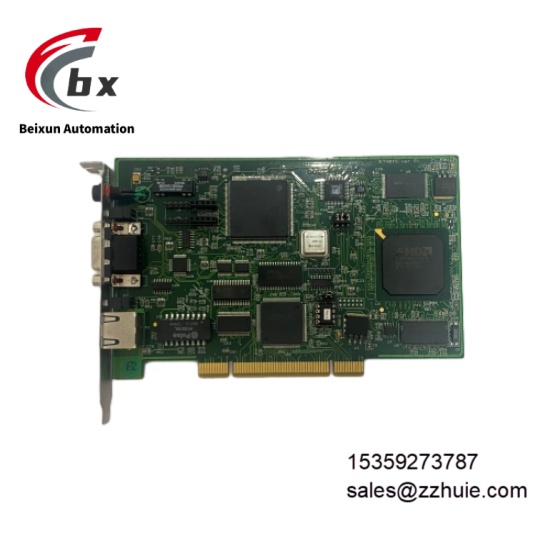

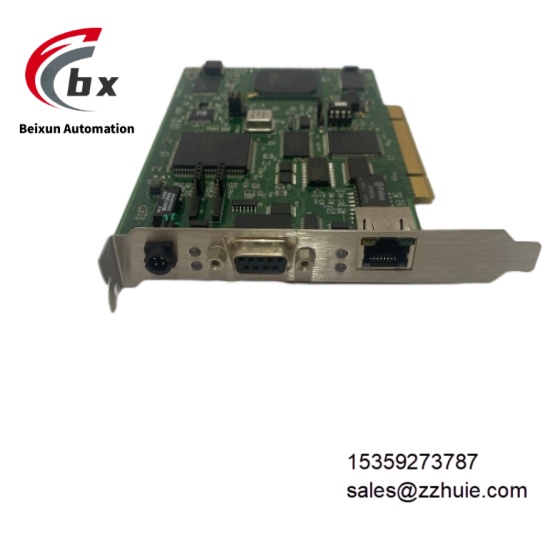

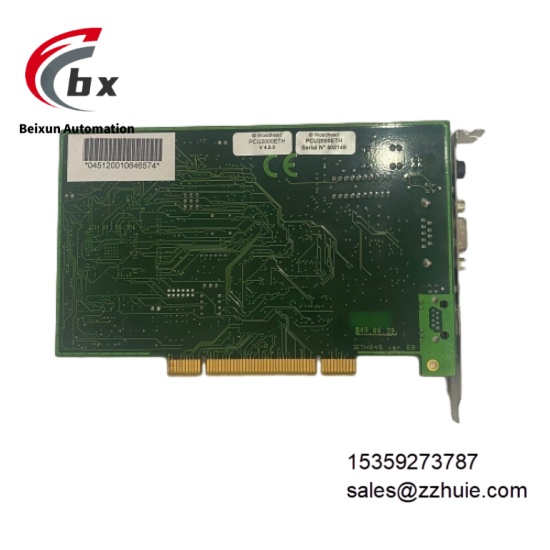

WOODHEAD APP-ETH PCU PCU2000ETH Ethernet communication processor
Specific Parameters
Electrical Parameters
Power Supply Voltage: 24V DC (±10%), supporting 18-30V DC wide-voltage inputPower Consumption: Typical 5W, maximum 8WEthernet Interfaces: 2 10/100Base-TX auto-negotiation Ethernet ports (RJ45), supporting MDI/MDI-X auto-crossoverSerial Interfaces: 4 configurable RS-232/422/485 serial ports, each with independent baud rate and data format configurationSupported Protocols: Ethernet side supports Modbus TCP, TCP/IP, UDP/IP; serial side supports Modbus RTU, DF1, ASCII, RTU-over-TCPData Buffer: 128KB transmit buffer and 128KB receive buffer per serial port; 512KB data buffer for Ethernet portsCommunication Rate: Serial port baud rate 1200bps-115.2kbps; Ethernet port 10/100Mbps auto-negotiationIsolation Protection: Serial ports with 2.5kVrms electrical isolation; Ethernet ports with 1kVrms surge protectionStatus Indication: 1 bi-color LED (link/data status) per port, 1 system operation LED, 1 fault alarm LED
Environmental Parameters
Operating Temperature: -10℃ to +60℃ (non-condensing environment)Storage Temperature: -40℃ to +85℃Relative Humidity: 5% to 95% (non-condensing), compliant with IEC 60068-2-3 standardProtection Rating: IP30 (housing protection, dust-proof)EMC Compliance: Compliant with EN 55022 Class A (electromagnetic radiation), EN 55024 (electromagnetic immunity) standardsVibration Resistance: 10-500Hz frequency range, 0.5g acceleration (sine wave), 10 minutes of continuous testing per axisShock Resistance: 10g acceleration (11ms duration, compliant with IEC 60068-2-27 standard)
Mechanical Parameters
Overall Dimensions: 120mm (L) × 80mm (W) × 30mm (H)Housing Material: Flame-retardant engineering plastic (UL94 V-0 grade) with impact-resistant structureWeight: Approximately 200gMounting Method: 35mm standard DIN rail mounting, supporting panel mounting (with optional bracket)Wiring Method: Ethernet ports support CAT5e twisted-pair cables (maximum transmission distance 100 meters); serial ports support shielded cables (maximum transmission distance 1200 meters in RS485 mode)Housing Protection: Front panel with sealed design to prevent dust intrusion
Product Performance
Protocol conversion capability is strong: It supports bidirectional conversion of multiple protocols such as Modbus RTU/TCP and DF1, enabling seamless data interaction between serial devices (e.g., inverters, sensors) and Ethernet systems (e.g., SCADA, HMI) without programming, with data transmission delay ≤10ms.
Communication stability is high: 2.5kVrms electrical isolation for serial ports and surge protection for Ethernet ports effectively suppress electromagnetic interference and voltage fluctuations in industrial environments, ensuring continuous communication without packet loss; dual Ethernet ports support link redundancy to avoid communication interruption caused by single-point faults.
Configuration and maintenance are convenient: It integrates a web graphical configuration interface, allowing port parameters, protocol mapping and alarm threshold settings via a browser without installing dedicated software; real-time diagnostic functions can monitor port links, power supply and data transmission status, and fault information is synchronously fed back via LEDs and the web interface, reducing troubleshooting time.
System compatibility is wide: It adapts to mainstream industrial serial devices (PLCs, instruments, actuators) and Ethernet systems (DCS/SCADA from brands such as Rockwell, Siemens, GE), supports multi-master access, and a single device can connect 4 serial devices simultaneously and access Ethernet without additional expansion modules.
Environmental adaptability is excellent: The wide temperature range of -10℃ to +60℃ covers most industrial scenarios; IP30 dust-proof design and vibration resistance allow direct deployment in workshop control cabinets or beside equipment, enabling stable operation without additional protective measures.
