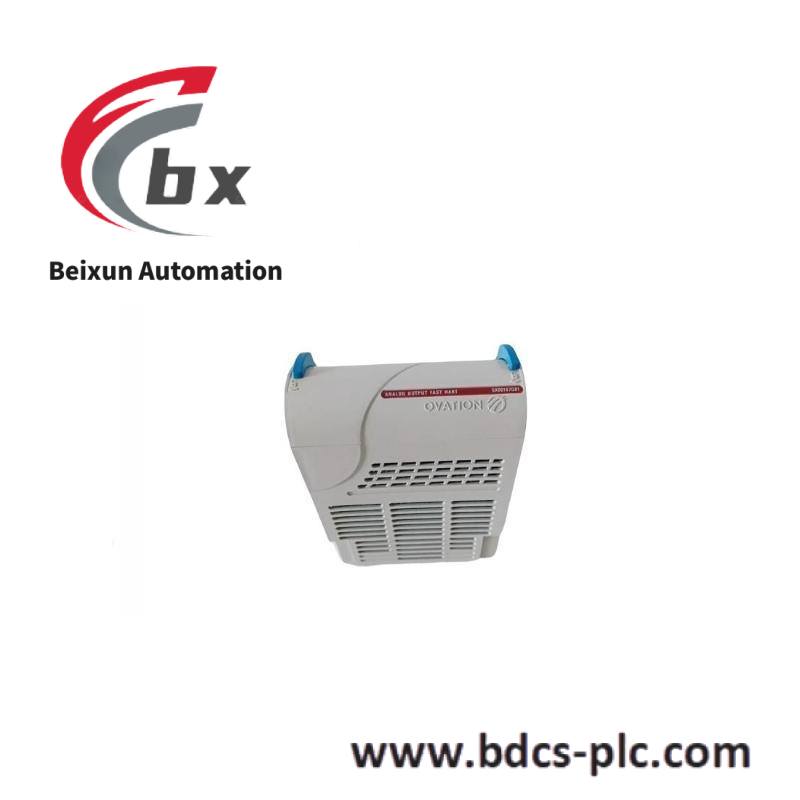

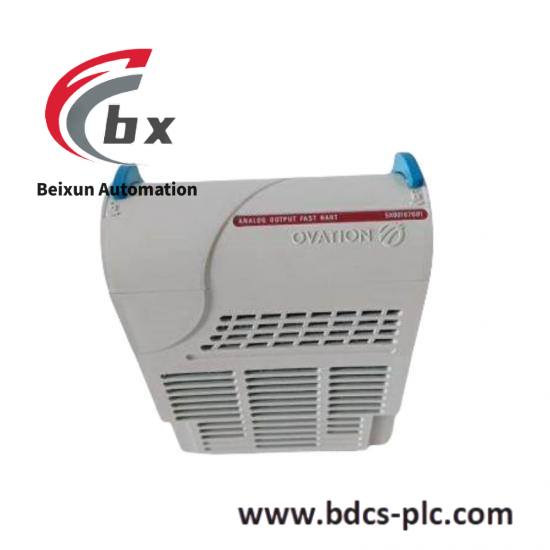

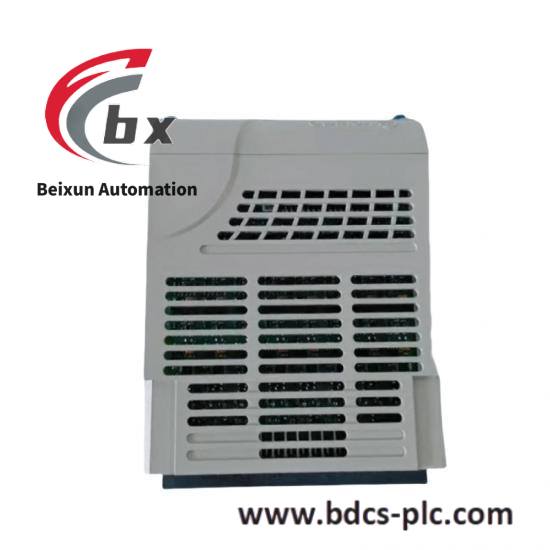

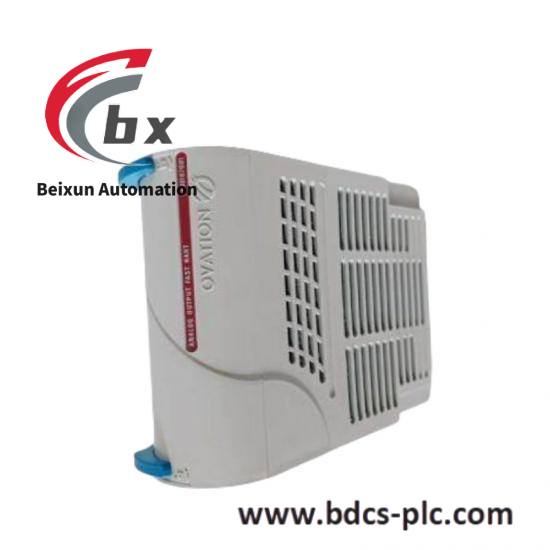

WESTINGHOUSE 5X00167G01 I/O Interface Module for Industrial Control Systems

Specific Parameters

Brand Westinghouse (now part of Emerson Group)

Product Series Ovation Series (Dedicated Module for Distributed Control System DCS)

Product Type HART High-Performance Analog Output Module, DCS Module

Model 5X00167G01

Number of Output Channels 8 Channels

Output Signal Range 4-20mA Current Signal

D/A Resolution 14 Bits

Reference Accuracy (@25℃) ±0.1% Full Scale (20mA), 99.7% Confidence Level

Accuracy Over Temperature ±0.24% Full Scale (20mA)

Communication Protocol HART Communication Protocol

Isolation Voltage 1000VAC/VDC for 1 Minute Between Channels and Between Channels and Logic

Operating Temperature Range 0℃ to 60℃

Storage Temperature Range -20℃ to 60℃

Relative Humidity 0% to 95%, Non-Condensing

Supply Voltage Main Power +24V Ovation Main Power Supply, Auxiliary Power +24V Ovation Auxiliary Power Supply or External Power Supply

Main Power Consumption Typical 4.1W, Maximum 4.5W

Auxiliary Power Consumption Typical 3.84W (20mA × 8 Loops × 24V)

Total Module Power Consumption Typical 5.06W

Output Impedance 250 Ohms

Common Mode Rejection Ratio 120dB (@DC or Nominal 50/60Hz Line Frequency ±1/2%)

Normal Mode Rejection Ratio 60dB (@50Hz ±1/2% or 60Hz ±1/2%)

Physical Dimensions 12.1cm×5.1cm×16.5cm (Length×Width×Height)

Physical Weight 0.3kg

Mounting Method Rack Mount (Inserted into Ovation System Controller Base or I/O Base)

Country of Origin USA

Compatible System Westinghouse Ovation Distributed Control System (DCS)

Product Performance

It has 8-channel independent analog output function, with the output signal being 4-20mA industrial standard current signal, which can control 8 different on-site executive equipment at the same time, meeting the demand for large-scale industrial process control.

Adopting 14-bit high-precision D/A conversion, the reference accuracy reaches ±0.1% full scale, and the accuracy over temperature reaches ±0.24% full scale, which can accurately convert controller digital instructions, ensure the control accuracy of on-site equipment, and realize refined control of industrial processes.

Supports HART communication protocol, can achieve two-way communication with smart transmitters, supports remote configuration, parameter calibration and fault diagnosis, no on-site operation is required, which greatly improves maintenance efficiency and reduces downtime losses.

Adopts electrical isolation design, the isolation voltage between channels and between channels and logic reaches 1000VAC/VDC, which can effectively prevent on-site high voltage or faults from entering the DCS system, protect the entire control system from damage, and improve the safety of system operation.

Integrates a Logic Printed Circuit Board (LIH) and a Field Printed Circuit Board (FIH) to ensure the reliability of data communication and signal integrity, avoiding control deviations caused by signal interference.

It has excellent anti-interference performance, with a common mode rejection ratio of 120dB and a normal mode rejection ratio of 60dB, which can effectively resist electromagnetic interference in industrial fields, ensure stable output signals without fluctuation.

Conducts high-speed data exchange with the controller through the Ovation system backplane bus, with fast response, can quickly feedback the status of on-site equipment and the operation of the module, ensuring that control instructions are transmitted in real time.

With a robust structure, manufactured with industrial-grade components, the operating temperature covers 0℃ to 60℃, which can operate stably for a long time in harsh industrial environments such as high humidity and high interference, with extremely low failure rate.

Easy to install, inserted into the Ovation system base through the gold finger interface, equipped with a dedicated pluggable terminal board, no need to rewire when replacing the module, making maintenance convenient and efficient.
