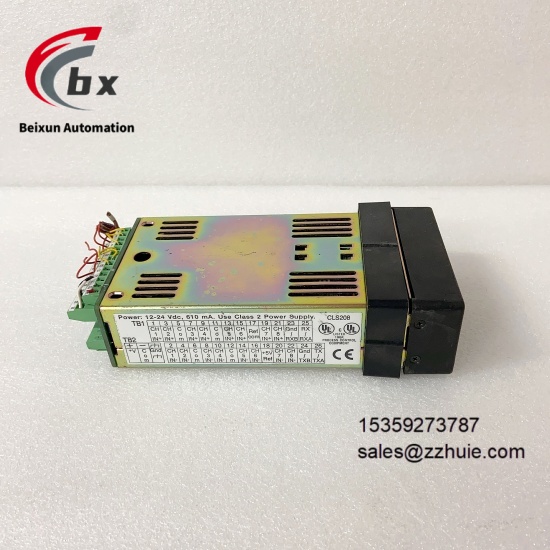

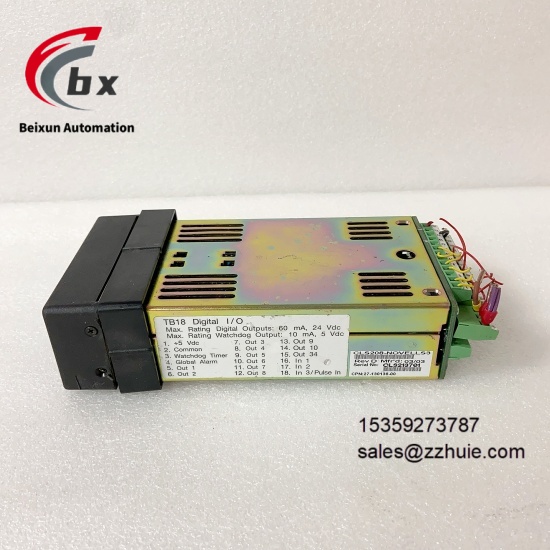

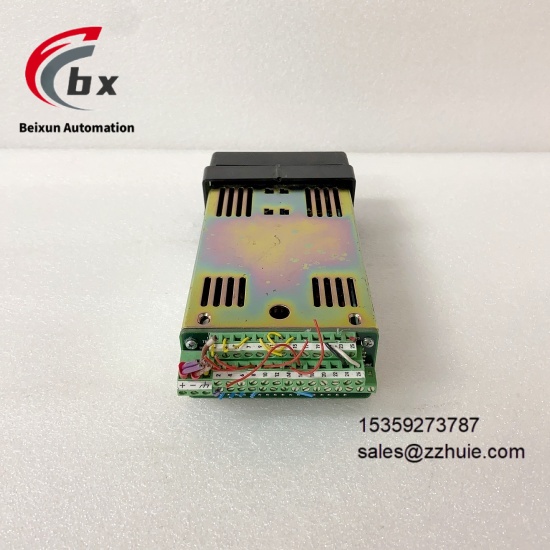

WATLOW CLS208 Temperature Controller

WATLOW CLS208 Temperature Controller

Specific Parameters

Brand WATLOW (American Brand)

Product Series WATLOW Anafaze CLS200 Series

Product Type 8-loop High-precision PID Temperature Controller

Model CLS208

Number of Control Loops 8 independent loops, supporting independent configuration of heating/cooling modes

Control Modes PID, On/Off, Ramp/Soak Control

Input Types Thermocouples (Type J, K, T, R, S, B, E, N), RTD (PT100, Cu50), DC Voltage (-10 to +60mV)

Output Types Relay Output, SSR Drive Output, Analog Voltage/Current Output (0-10VDC, 4-20mA), TRIAC Output

Control Accuracy ±0.1°C

Supply Voltage 100-240VAC/50-60Hz, optional 12-24VDC wide voltage adaptation

Power Consumption Maximum 30VA (AC power supply), 180VA (heavy-duty configuration)

Operating Temperature Range 0°C to 55°C

Storage Temperature Range -40°C to 85°C

Relative Humidity 10% to 90%RH, No Condensation

Protection Level IP65

Communication Interfaces RS-232, RS-485, supporting Modbus RTU/ASCII protocol

Programming Function Optional 256-segment program control, supporting multi-job storage and switching

Installation Method 1/8 DIN Panel Mounting

Physical Dimensions 72mm×72mm×100mm (Length×Width×Depth)

Physical Weight Approximately 0.8kg

Housing Material Aluminum Alloy and Fireproof PC Composite Material

Alarm Function Multiple sets of high-limit, low-limit and deviation alarms configurable for each loop

Product Performance

The ±0.1°C high-precision control combined with independent PID algorithm allows each loop to set parameters individually and supports self-tuning function, which can quickly adapt to different process requirements, reduce temperature fluctuation and overshoot, and ensure thermal process stability and product consistency.

8 independent control loops can be flexibly configured with heating or cooling modes, supporting mixed access of multiple types of sensors and actuators without additional adapter modules, greatly simplifying the design and deployment of multi-zone temperature control systems.

The combination of wide voltage power supply and IP65 protection level provides strong anti-interference ability, enabling stable operation in environments with voltage fluctuations, heavy dust and slight water splashing, adapting to harsh industrial on-site conditions.

The optional 256-segment program control function supports complex time-series processes such as ramp heating and constant temperature soaking. Combined with multi-job storage and switching, it can quickly adapt to the temperature control needs of different production batches and improve production efficiency.

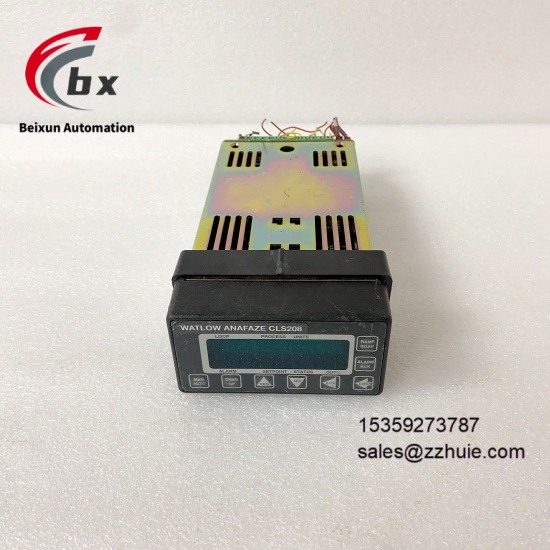

The dual-line LCD display can show process variables, set points and output status of multiple loops simultaneously. The 8-key operation panel simplifies parameter configuration and fault diagnosis. With Modbus communication protocol, it realizes remote monitoring and system integration.

The compact 1/8 DIN package design saves control cabinet space. The modular structure facilitates later maintenance and function expansion. It can be directly used with Watlow sensors and SSR power controllers, with excellent compatibility.
