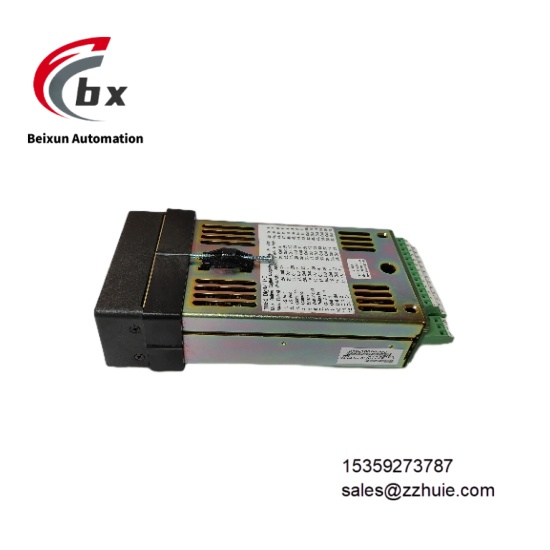

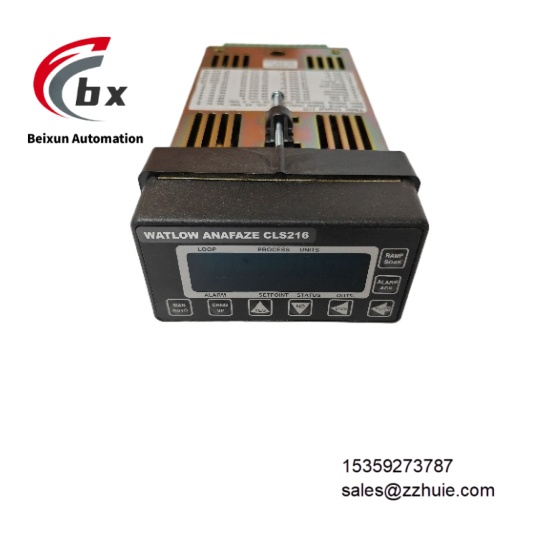

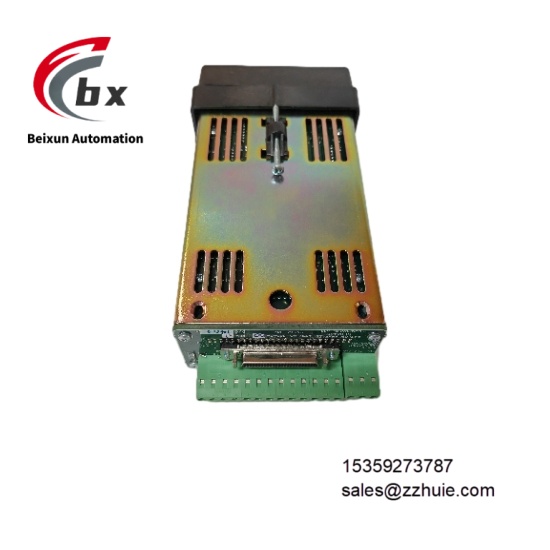

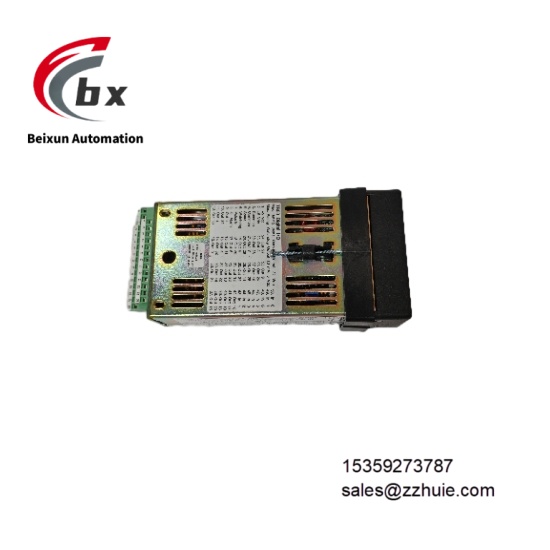

WATLOW ANAFAZE CLS216 Multi loop industrial temperature controller

WATLOW ANAFAZE CLS216 Multi loop industrial temperature controller

Specific Parameters​

Electrical Parameters​

Operating Power Supply Wide voltage input 100-240V AC or 24V DC/AC, compatible with general industrial power supply environments​

Number of Control Loops 16 independent heating/cooling control loops, supporting single-ended analog input configuration​

Input Signals Supports thermocouples (Types J/K/T/R/S/B/C/E/N), RTDs (PT100/Cu50), linear voltage, current, and frequency signals​

Output Types Relay output, SSR driver output, analog output (0-10V DC voltage or 4-20mA current)​

Control Accuracy ±0.1°C or ±0.1%, excellent temperature control stability​

Temperature Control Range -200°C to 600°C, covering wide-temperature industrial application needs​

Response Time <100ms, fast response to temperature fluctuations and control commands​

Digital Outputs 34 programmable digital outputs, flexible configuration of control and alarm functions​

Communication Interfaces Standard RS-485 interface supporting Modbus RTU protocol, optional RS-232 and DeviceNet interfaces​

Noise Suppression 120 dB at 60Hz, strong anti-interference performance​

Temperature Coefficient 40 ppm/˚C, ensuring parameter stability in wide-temperature environments​

Mechanical Parameters​

Overall Dimensions Height 30.8mm (⅓DIN)/52mm (⅔DIN)/76mm (ⅡDIN), width 53mm, depth 102mm, compact design saves cabinet space​

Weight Approximately 0.2kg, lightweight design facilitates installation​

Mounting Method Panel-mounted installation, compatible with standard DIN rail mounting specifications​

Housing Material Industrial-grade high-strength flame-retardant plastic housing with good insulation performance​

Operation Interface 32-character vacuum fluorescent display with eight-key physical operation keyboard for easy operation​

Protection Rating IP65, dustproof and waterproof, suitable for harsh industrial environments​

Connection Method Plug-in terminal block connection with screw fastening for reliable wiring​

Environmental Parameters​

Operating Temperature -20°C to 55°C, no performance derating over the entire temperature range​

Storage Temperature -40°C to 85°C, meeting extreme storage and transportation requirements​

Relative Humidity 5% to 95% (non-condensing), adapting to high-humidity industrial scenarios​

Vibration Resistance Complies with industrial vibration standards, tolerating regular workshop vibration environments​

EMC Compliance Meets industrial EMC specifications, avoiding interference with surrounding equipment​

Product Performance​

Multi-loop integrated control, 16 independent loops operating simultaneously without additional expansion modules, simplifying system architecture​

Precise PID control algorithm with auto-tuning function, achieving optimal control results without professional knowledge​

Flexible input and output configuration, compatible with various sensors and actuators, reducing inventory and replacement costs​

Fast response capability, millisecond-level response time effectively suppressing temperature fluctuations and ensuring process stability​

Intelligent fault diagnosis with sensor open circuit, short circuit, and reverse fault detection functions, shortening troubleshooting time​

Programmable process with ramp and soak functions, meeting complex batch processing and sequencing process requirements​

Convenient system integration with rich communication interfaces and protocol support, easily accessing upper computer and PLC control systems​

High-reliability design using industrial-grade components and low-component structure, minimizing operational failure rate​
