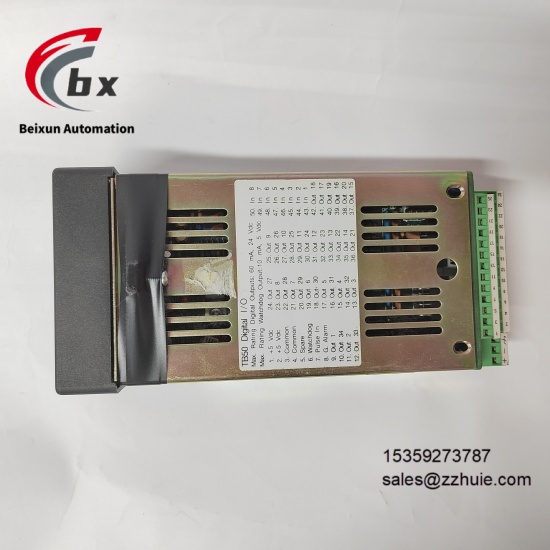

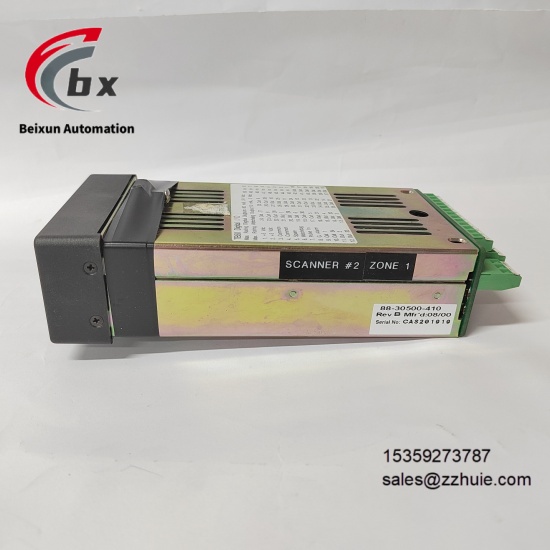

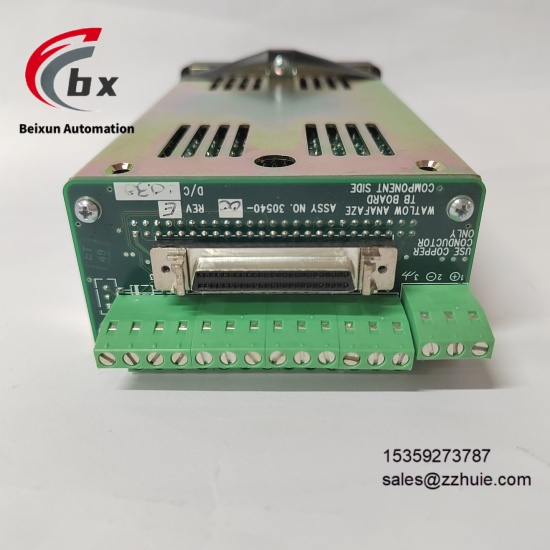

WATLOW ANAFAZE CAS200 Single loop self-tuning temperature controller

WATLOW ANAFAZE CAS200 Single loop self-tuning temperature controller

Specific Parameters​

Core and Function Parameters​

Product Type Single-loop Self-tuning Temperature Controller​

Series Watlow ANAFAZE CAS Series​

Manufacturer Watlow​

Installation Method 1/32 DIN Panel-mount​

Control Modes ON/OFF, PID (Self-tuning, Manual Tuning)​

Input Types Thermocouple (J,K,T,E,N,R,S,B,C types), RTD (2/3-wire, 100Ω Pt type), DC Voltage (0-5V, 1-5V), DC mA (0-20mA, 4-20mA)​

Control Outputs 1 or 2 channels, optional electromechanical relay (5A), solid state relay (SSR) drive (10VDC), open collector (24VDC, 50mA)​

Alarm Output 1 channel, electromechanical relay (5A)​

Communication Protocols Modbus RTU, DeviceNet, RS485​

Display Dual 4-digit LED display (PV and SV)​

Protection Rating Front panel NEMA 4X (IP65)​

Certifications UL®, cUL®, CE​

Operation Interface Keypad, menu-driven programming​

Electrical and Environmental Parameters​

Power Supply 100-240VAC (50/60Hz); 24VAC/DC​

Measurement Accuracy ±0.1% of full scale​

Control Accuracy ±0.1%​

Temperature Control Range -40°C to +600°C​

Operating Temperature Range 0°C to 55°C​

Panel Cutout Dimensions 22.5mm×45mm​

Overall Dimensions Height 30.8mm (Type Ⅰ₂D), Width 53mm (Type ⅡD)​

Output Current 0 to 20mA​

Product Performance​

Adopts self-tuning PID algorithm to automatically optimize control parameters, with temperature control accuracy up to ±0.1% and minimal overshoot and lag​

Supports multiple types of input signals, compatible with mainstream sensors, adapting to diverse temperature measurement scenarios​

Provides multiple output methods to flexibly drive heaters, fans and other actuators, meeting different control needs​

Front panel IP65 protection rating, dustproof, waterproof and corrosion-resistant, suitable for harsh industrial environments such as humidity and dust​

Dual LED display real-time shows measured value and set value, menu-driven operation enables convenient parameter configuration​

Supports mainstream communication protocols, can be quickly integrated into PLC and DCS systems for centralized monitoring​

Compact 1/32 DIN package with small panel cutout, saving cabinet installation space​

Equipped with independent alarm output, supporting high-low, limit, deviation and other alarm types to ensure process safety​
