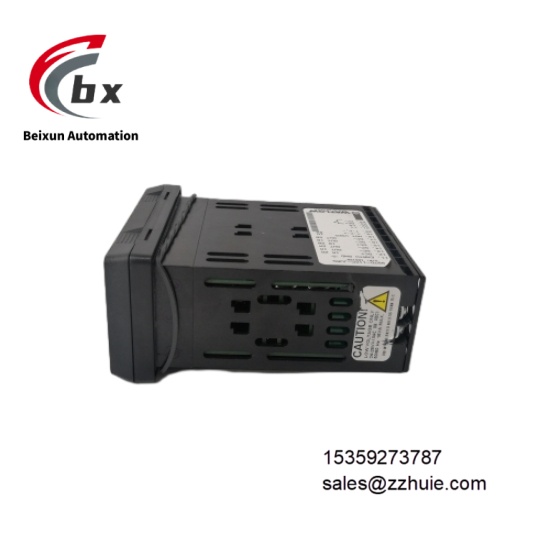

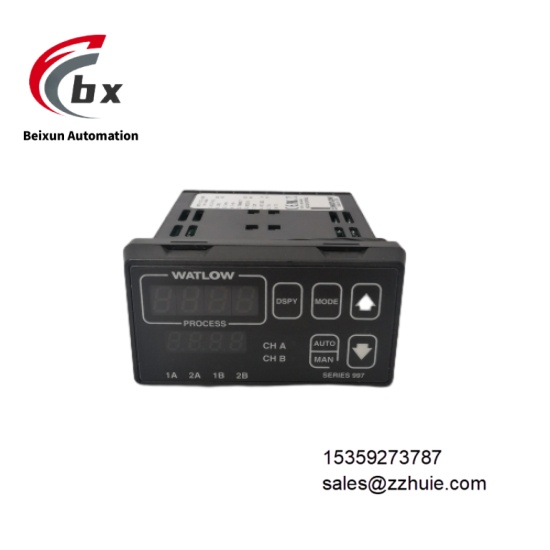

WATLOW ANAFAZE 997D-11CC-JURG Dual channel digital temperature controller
Specific Parameters
Electrical Parameters
Power Supply Voltage: 100-240VAC 50/60Hz or 24VDCInput Type: Thermocouple, RTD, linear resistor, voltage, currentMeasurement Range: -50℃ to 350℃Control Accuracy: ±0.2% full scale or within ±0.5℃Output Type: Relay, SSR (Solid State Relay), analog voltage, analog currentRated Output Current: 1AOutput Voltage Range: 0-10VDCControl Mode: PID control, ON/OFF control, manual controlCommunication Protocol: RS-485 Modbus RTUProtection Features: Overtemperature protection, broken line protectionInsulation Resistance: ≥100MΩ between channels and between channels and power supply (measured at 500V DC, normal temperature and state)Voltage Withstand Strength: ≥2500V AC (1 minute no breakdown, leakage current ≤1mA)Certification Standards: Compliant with UL, CE, RoHS standards
Mechanical Parameters
Overall Dimensions: 89mm×48mm×89mmWeight: Approximately 0.4kgMounting Method: DIN rail mounting, screw mountingHousing Material: Industrial-grade robust material, anti-electromagnetic interferenceConnection Method: Plug-in terminal blocks, compatible with shielded cablesDisplay Method: LED or LCD digital display, real-time presentation of process parametersProtection Rating: IP65/NEMA 4X, dustproof and splashproofStatus Indication: Power (green), operation (yellow), fault (red) indicator lights
Environmental Parameters
Operating Temperature: -40℃ to 85℃, full performance operation without deratingStorage Temperature: -40℃ to 85℃, meeting extreme storage and transportation requirementsRelative Humidity: 5% to 95% (non-condensing), suitable for high-humidity industrial scenariosVibration Resistance: 3g acceleration at 3Hz-57Hz frequency range, 5g acceleration at 57Hz-500Hz frequency range (sine wave)Shock Resistance: 15g acceleration (half-sine wave, duration 11ms), withstanding installation and transportation shocksEMC Compliance: Meets international EMC standards
Product Performance
Dual-channel independent control: Simultaneously monitors and regulates two temperature measurement points with high data consistencyExcellent control accuracy: Advanced PID algorithm ensures small temperature fluctuations, with control reliability up to 99.9% under complex working conditionsWide adaptability: Supports multiple input and output types, compatible with different measurement and execution equipmentConvenient communication integration: Modbus RTU protocol can seamlessly connect to PLC, DCS and other industrial control systemsIntuitive and easy operation: Clear display and flexible configuration functions reduce commissioning and operation and maintenance costsOutstanding protection performance: IP65 rating adapts to outdoor and wash-down environments with strong durabilityHigh operational stability: Industrial-grade materials and comprehensive protection mechanisms, Mean Time Between Failures (MTBF) ≥300,000 hours
