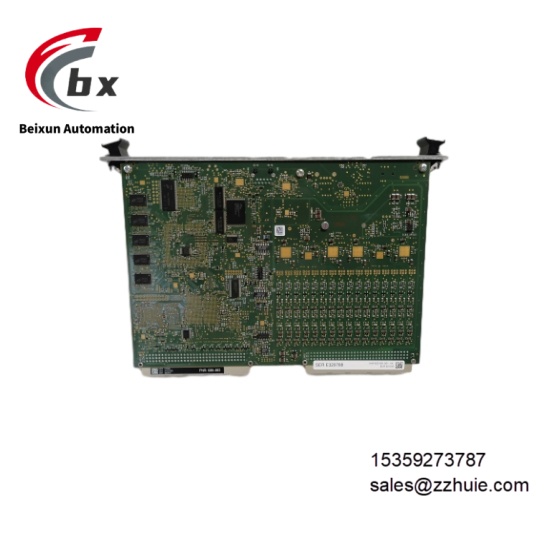

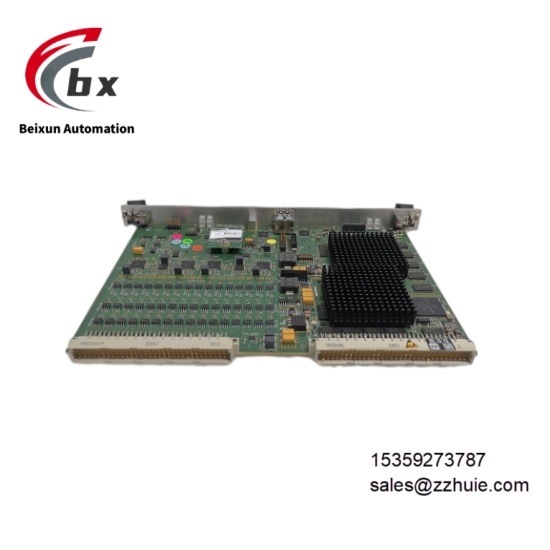

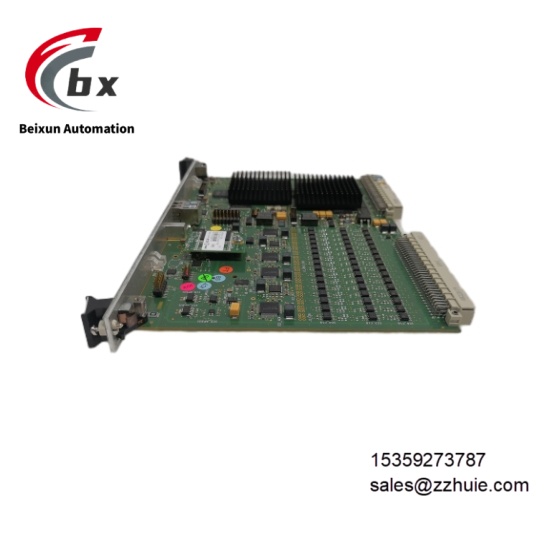

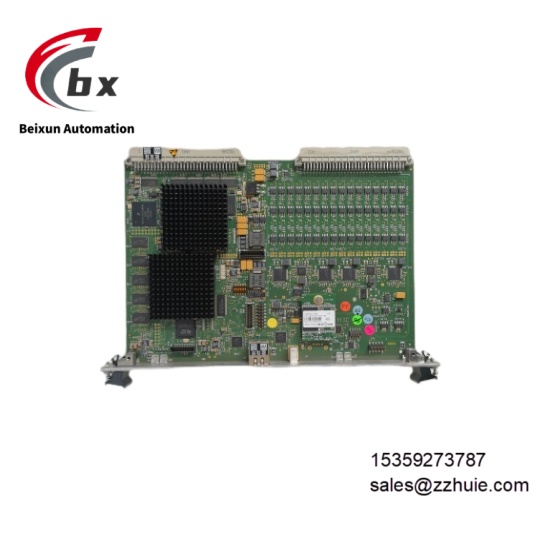

VIBRO-METER VM600 XMV16 600-003 620-001-001-116 Expand vibration monitoring module

VIBRO-METER VM600 XMV16 600-003 620-001-001-116 Expand vibration monitoring module

Specific Parameters

Brand VIBRO-METER (Affiliated to Meggitt Group, Original Authentic, Swiss Brand), Product Series VIBRO-METER VM600 Series

Product Type Extended Vibration Monitoring Module, Industrial Monitoring Card, Core Monitoring Component of VM600 Series, Vibration Data Acquisition and Analysis Module, Original Authentic Spare Part

Model VIBRO-METER VM600 XMV16 600-003 620-001-001-116

Country of Origin Switzerland

Compatible Devices VM600 Standard Racks (ABE04x Series), VM600 Slimline Racks (ABE056), XIO16T Extended Input/Output Cards, VibroSight® Software, Rotating Machinery Vibration Sensors, Accelerometers, Proximity Probes, Velocity Sensors, Host Computers, VM600 Series Monitoring Systems

Core Functions Vibration Data Acquisition, Vibration Data Analysis, Speed Measurement, High-Resolution FFT Analysis, Asynchronous/Synchronous Sampling, Data Transmission, Independent Channel Configuration, EMI Protection, Hot Swapping, Forming a Monitoring Card Pair with XIO16T to Realize Complete Monitoring Functions

Product Structure Modular industrial-grade enclosure, rack-mounted design, installed at the front of the VM600 rack, used with the XIO16T card at the rear, clear terminal identification, mechanical anti-misinsertion design, color is industrial gray, built-in data acquisition and signal processing modules

Channel Configuration 16 dynamic vibration channels, 4 tachometer channels, all channels can be independently configured

Sampling Accuracy 24-bit data acquisition, high signal-to-noise ratio (SNR) data processing

Speed Measurement Range 1 to 100000 rpm (0.017Hz to 1.667kHz), Speed Measurement Resolution 5ns

Tachometer Channel Input Channels 1 and 2 support voltage and current inputs, channels 3 and 4 only support voltage inputs; current measuring resistor 200Ω, voltage range -20 to +20VDC, current range -30 to +30mA, input impedance ≥100kΩ

Input Signal Requirements Input voltage range 0.8 to 500V peak-to-peak (0.3Hz to 10kHz), 2.0 to 500V peak-to-peak (10kHz to 50kHz); minimum square-wave input signal 0.8V peak-to-peak (0.016Hz to 10kHz), 2.0V peak-to-peak (10kHz to 50kHz); minimum sinusoidal input signal 10.0V peak-to-peak (0.016Hz to 1Hz), 2.0V peak-to-peak (1Hz to 10Hz), 0.8V peak-to-peak (10Hz to 10kHz), 2.0V peak-to-peak (10kHz to 50kHz)

DC Component Range -20 to +20V, Maximum Common Mode Voltage ±50V

FFT Resolution Up to 3200 lines per second, supporting high-resolution spectrum analysis

Processed Outputs Up to 20 configurable processed outputs per channel, 12 processed outputs per XMV16 module; 5 configurable severities per processed output, 8 detection levels with hysteresis and time delay

Sampling Mode Supports asynchronous (fixed frequency) and synchronous (sequential tracking) sampling, all channels can acquire data simultaneously

Communication Interface On-board Gigabit Ethernet controller, supporting direct Gigabit (1Gbps) Ethernet communication, compatible with Modbus TCP/IP protocol

Communication Protocols Supports Modbus TCP/IP, can seamlessly communicate with VibroSight® software to realize data transmission and configuration management

Dimensions 132mm×140mm×185mm (Height×Width×Depth), adapting to standard slots of VM600 rack, installed with XIO16T card

Weight Approximately 0.5kg

System Compatibility Can form a monitoring card pair with XIO16T extended input/output card, adapt to VM600 series ABE04x and ABE056 racks, compatible with VibroSight® software, and can be seamlessly integrated with VM600 series CPUM/IOCN card pairs and MPC4/AMC8 protection cards

Safety Certifications CE Certification, RoHS Certification, EMC Electromagnetic Compatibility Certification

Maximum Power Consumption 6W

Operating Temperature Range -40°C to +70°C

Storage Temperature Range -40°C to +85°C

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (Complies with IEC 60529 Standard, Suitable for Cabinet Installation)

Vibration Resistance Frequency 10-500Hz, Acceleration 15g (Sine Wave), Complies with IEC 60068-2-6 Standard

Shock Resistance Peak Acceleration 50g, Duration 11ms (Half-Sine Wave), Complies with IEC 60068-2-27 Standard

Mounting Method Rack embedded installation, installed at the front of the VM600 rack, used with the XIO16T card at the rear, supports hot swapping, removable for online maintenance, directly connected to the rack backplane through two connectors

Component Standard Adopts industrial-grade high-reliability components, built-in EMI protection filter, 24-bit data acquisition module, high signal processing accuracy, complying with the reliability standards of industrial vibration monitoring equipment, supporting signal sharing in the rack

Product Performance

Adaptability Performance: Fully compatible with VM600 standard racks (ABE04x series) and slimline racks (ABE056), can form a complete monitoring card pair with XIO16T extended input/output card, compatible with VibroSight® software and other components of the VM600 series, can be directly connected to vibration sensors, accelerometers and other equipment, adapts to various rotating machinery monitoring scenarios, plug-and-play, high integration efficiency, and supports signal sharing in the rack.

Monitoring and Acquisition Performance: Equipped with 16 dynamic channels and 4 tachometer channels, all channels can be independently configured, 24-bit data acquisition ensures high acquisition accuracy, high signal-to-noise ratio processing guarantees data quality, supports both asynchronous and synchronous sampling modes, all channels can acquire data simultaneously, with wide speed measurement range and high resolution, which can accurately capture equipment vibration and speed data.

Data Processing Performance: Supports high-resolution FFT analysis, up to 3200 lines of spectrum data per second, can realize accurate vibration data analysis, up to 20 configurable processed outputs per channel, supports multiple detection level settings, can quickly process collected data and generate configurable waveforms and spectra, data quality can be real-time detected, providing accurate support for equipment condition evaluation.

Communication and Operation Performance: Equipped with an on-board Gigabit Ethernet controller, supports Gigabit Ethernet communication, can seamlessly communicate with VibroSight® software and host computers through Modbus TCP/IP protocol, with efficient and stable data transmission; supports hot swapping function, removable for online maintenance, clear terminal identification, modular design facilitates spare part replacement, greatly reducing maintenance costs and downtime.

Safety and Environmental Performance: Certified by CE, RoHS, EMC and other authoritative standards, built-in complete EMI electromagnetic interference protection filter, which can effectively resist external electromagnetic interference and ensure the stability of data acquisition and transmission; manufactured with industrial-grade high-protection materials, it can operate continuously and stably for a long time in a wide temperature range of -40°C to +70°C and high humidity environments, has excellent vibration and shock resistance, adapts to various harsh industrial scenarios, and has a long service life.
