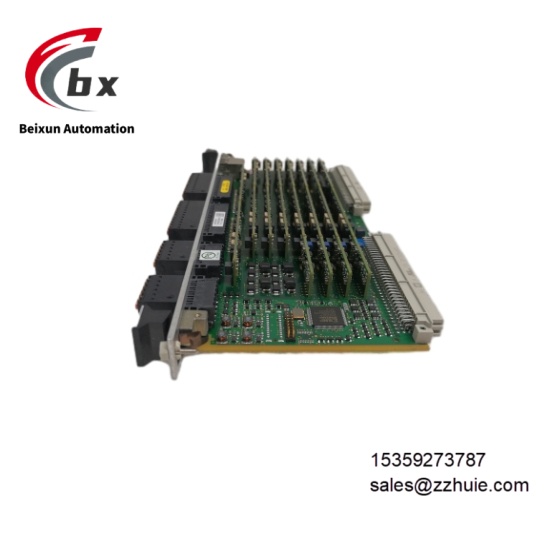

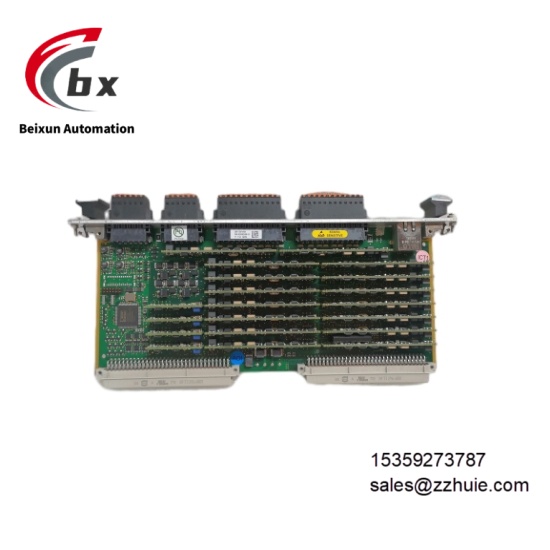

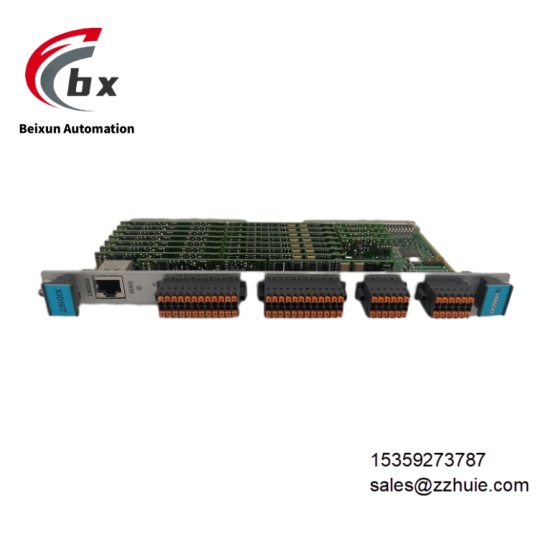

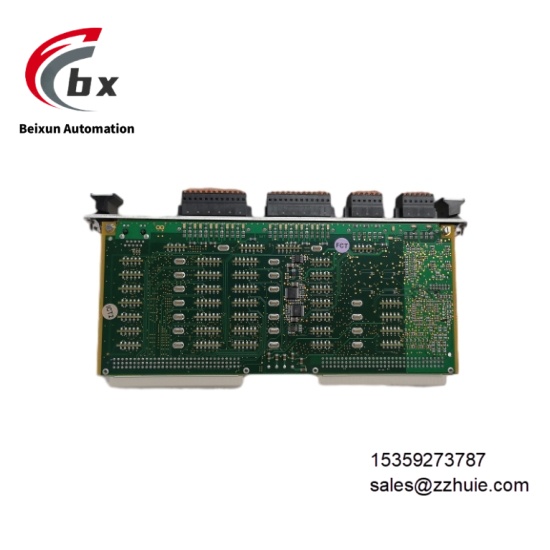

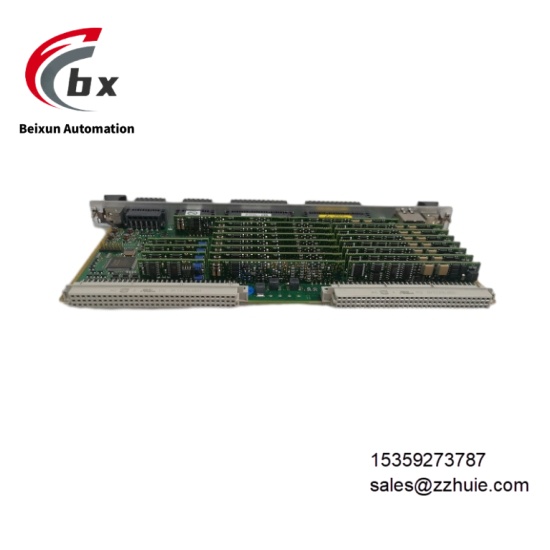

VIBRO-METER VM600 XIO16T 620-002-000-113 620-003-111-112 Extended Input/Output Module

VIBRO-METER VM600 XIO16T 620-002-000-113 620-003-111-112 Extended Input/Output Module

Specific Parameters

Brand VIBRO-METER (Affiliated to Meggitt Group, Original Authentic, Swiss Brand), Product Series VIBRO-METER VM600 Series

Product Type Extended Input/Output Module, Industrial Interface Module, Supporting Component of VM600 Series Monitoring Card Pair, Signal Conditioning Module, Original Authentic Spare Part

Model VIBRO-METER VM600 XIO16T 620-002-000-113 620-003-111-112

Country of Origin Switzerland

Compatible Devices VM600 Standard Racks (ABE04x Series), VM600 Slimline Racks (ABE056), XMV16 Vibration Monitoring Modules, XMC16 Combustion Monitoring Modules, VibroSight® Software, Vibration Sensors, Accelerometers, Proximity Probes, Velocity Sensors, VM600 Series Monitoring Systems, MPC4 Protection Modules

Core Functions Signal Interface Adaptation, Analog Signal Conditioning, Sensor Signal Access, External Communication Support, EMI Protection, Signal Surge Protection, Signal Sharing in Rack, Forming Monitoring Card Pair with XMV16/XMC16, Independent Channel Configuration

Product Structure Modular industrial-grade enclosure, rack-mounted design, installed at the rear of the VM600 rack, corresponding to the front XMV16/XMC16 modules, clear terminal identification, mechanical anti-misinsertion design, color is industrial gray, built-in signal conditioning and protection modules, directly connected to the rack backplane through two connectors

Channel Configuration 16 dynamic signal channels, 4 tachometer channels, all channels can be independently configured, supporting differential signal input

Speed Measurement Range 1 to 100000 rpm (0.017Hz to 1.667kHz), Speed Measurement Resolution 5ns

Tachometer Channel Input Channels 1 and 2 support voltage and current inputs, channels 3 and 4 only support voltage inputs; current measuring resistor 200Ω, voltage range -20 to +20VDC, current range -30 to +30mA, input impedance ≥100kΩ

Input Signal Requirements Input voltage range 0.8 to 500V peak-to-peak (0.3Hz to 10kHz), 2.0 to 500V peak-to-peak (10kHz to 50kHz); minimum square-wave input signal 0.8V peak-to-peak (0.016Hz to 10kHz), 2.0V peak-to-peak (10kHz to 50kHz); minimum sinusoidal input signal 10.0V peak-to-peak (0.016Hz to 1Hz), 2.0V peak-to-peak (1Hz to 10Hz), 0.8V peak-to-peak (10Hz to 10kHz), 2.0V peak-to-peak (10kHz to 50kHz)

DC Component Range -20 to +20V, Maximum Common Mode Voltage ±50V

Signal Conditioning Function Equipped with complete analog signal conditioning capability, supporting precise conditioning of dynamic signals and speed signals, built-in signal filtering module to ensure signal transmission quality

Communication Interface Equipped with 1 Ethernet connector (8P8C(RJ45)), supporting communication with VibroSight® software, compatible with Modbus TCP/IP protocol, enabling data transmission and configuration management

Communication Protocols Supports Modbus TCP/IP, can seamlessly communicate with VibroSight® software and other modules of the VM600 series, supports signal sharing in the rack (through Tacho Bus and Raw Bus)

Dimensions 132mm×140mm×185mm (Height×Width×Depth), adapting to standard slots of VM600 rack, installed with XMV16/XMC16 modules

Weight Approximately 0.45kg

System Compatibility Can form a complete monitoring card pair with XMV16 vibration monitoring modules and XMC16 combustion monitoring modules, adapt to VM600 series ABE04x and ABE056 racks, compatible with VibroSight® software, can realize signal sharing with MPC4 protection modules, and be seamlessly integrated into the VM600 series monitoring system

Safety Certifications CE Certification, RoHS Certification, EMC Electromagnetic Compatibility Certification

Maximum Power Consumption 5W

Operating Temperature Range -40°C to +70°C

Storage Temperature Range -40°C to +85°C

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (Complies with IEC 60529 Standard, Suitable for Cabinet Installation)

Vibration Resistance Frequency 10-500Hz, Acceleration 15g (Sine Wave), Complies with IEC 60068-2-6 Standard

Shock Resistance Peak Acceleration 50g, Duration 11ms (Half-Sine Wave), Complies with IEC 60068-2-27 Standard

Mounting Method Rack embedded installation, installed at the rear of the VM600 rack, corresponding to the front XMV16/XMC16 modules, supports hot swapping, removable for online maintenance, directly connected to the rack backplane through two connectors

Component Standard Adopts industrial-grade high-reliability components, built-in EMI protection filter and signal surge protection module, high signal conditioning accuracy, complying with the reliability standards of industrial interface modules, supporting signal sharing in the rack

Product Performance

Adaptability Performance: Fully compatible with VM600 standard racks (ABE04x series) and slimline racks (ABE056), can form a complete monitoring card pair with XMV16 and XMC16 modules, compatible with VibroSight® software and other components of the VM600 series, can be directly connected to various vibration and speed sensors, adapts to rotating machinery vibration monitoring, combustion monitoring and other scenarios, supports signal sharing in the rack, plug-and-play, high integration efficiency.

Signal Processing Performance: Equipped with 16 dynamic channels and 4 tachometer channels, all channels can be independently configured, supporting differential signal input, built-in complete analog signal conditioning function and filtering module, which can accurately condition sensor input signals, ensure the stability and accuracy of signal transmission, and meet high-resolution monitoring needs.

Communication and Sharing Performance: Equipped with an Ethernet interface, supports seamless communication with VibroSight® software, realizes efficient data transmission and module configuration through Modbus TCP/IP protocol; supports signal sharing in the VM600 rack, can realize signal intercommunication with MPC4 and other protection modules, reduce external wiring requirements, and improve system integration flexibility.

Safety and Protection Performance: Certified by CE, RoHS, EMC and other authoritative standards, built-in EMI electromagnetic interference protection filter and signal surge protection module, which can effectively resist external electromagnetic interference, prevent signal surges from damaging the module, protect all input ports, and ensure long-term stable operation of the module.

Installation and Operation Performance: Adopts rack-mounted modular design, installed at the rear of the VM600 rack, accurately corresponding to the front monitoring modules, supports hot swapping function, removable for online maintenance, clear terminal identification, modular design facilitates spare part replacement, greatly reducing maintenance costs and downtime.

Environmental and Durability Performance: Manufactured with industrial-grade high-protection materials, it can operate continuously and stably for a long time in a wide temperature range of -40°C to +70°C and high humidity environments, has excellent vibration and shock resistance, stable components, adapts to various harsh industrial scenarios, has a long service life, and is guaranteed by the original factory quality.
