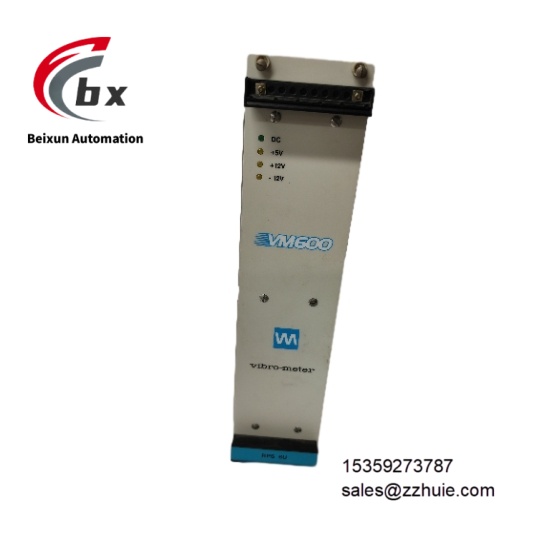

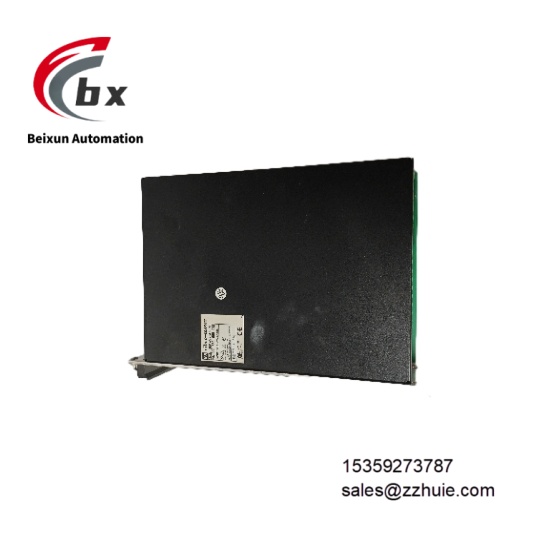

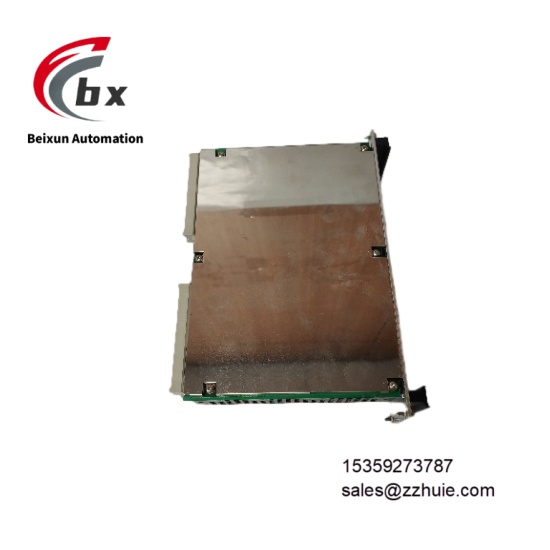

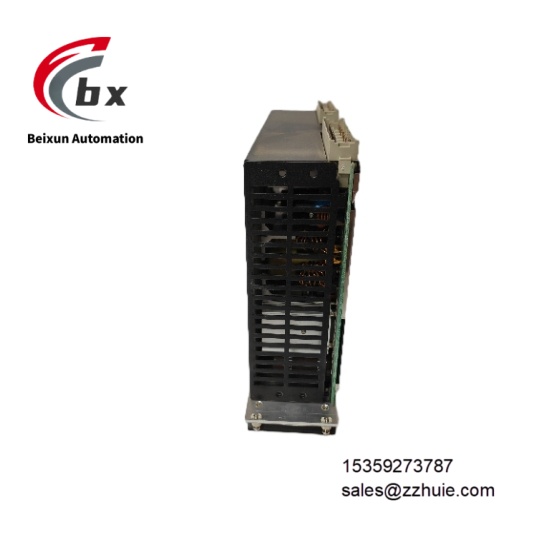

VIBRO-METER VM600 RPS6U 200-582-600-013 Rack mounted redundant power module

VIBRO-METER VM600 RPS6U 200-582-600-013 Rack mounted redundant power module

Specific Parameters​

Input and Output Parameters​

Module Type Rack-mounted redundant power module​

Input Voltage 100-240VAC, 50/60Hz​

Output Voltage +5VDC, +12VDC, -12VDC​

Rated Output Power 600W​

Maximum Output Current +5VDC: up to 50A; +12VDC: up to 8A; -12VDC: up to 4A​

Conversion Efficiency >90%​

Ripple and Noise <50mVPEAK-TO-PEAK (all outputs)​

Structure and Configuration Parameters​

Compatible Racks VM600 ABE04x series 19-inch 6U system racks​

Installation Position Front of the rack, connected to the backplane VME bus via high-current connections​

Redundancy Support Dual RPS6U modules for power redundancy configuration​

Hot-swapping Supports live insertion/removal​

Status Indication LED indicators (IN: normal input; +5V, +12V, -12V: normal output)​

Protection Functions Overvoltage protection, short-circuit protection, overload protection​

Environmental and Reliability Parameters​

Operating Temperature 0°C to 70°C​

Storage Temperature -40°C to 85°C​

Relative Humidity 5% to 90%RH (non-condensing)​

Vibration Resistance 10-55Hz, 0.35mm peak below resonance, 2g peak above resonance, 6 hours/axis (complies with IEC 60068-2-6)​

Shock Resistance 6g peak, 11ms half-sine pulse, 3 shocks/axis (complies with IEC 60068-2-27)​

Mean Time Between Failures >40,000 hours at 70°C (complies with MIL-HDBK-217F)​

Certification Standards Complies with EC standards (including EMC electromagnetic compatibility)​

Product Performance​

Strong power supply stability, with output voltage ripple below 50mV for three channels, ensuring accurate operation of monitoring modules​

Sufficient power redundancy, 600W rated power can cover the power supply needs of the entire rack modules​

Comprehensive protection mechanisms, triple protection functions prevent damage to power supply and load modules​

Excellent environmental adaptability, wide temperature operating range combined with anti-vibration and anti-shock design, adapting to harsh industrial scenarios​

High operation and maintenance convenience, hot-swappable design + intuitive LED indicators, reducing system downtime​

Outstanding operating efficiency, conversion efficiency over 90%, reducing energy consumption and heat dissipation pressure​

Seamless redundancy switching, dual-module configuration enables uninterrupted power supply during failures​

High reliability, long-life design ensures long-term stable operation of the system​
