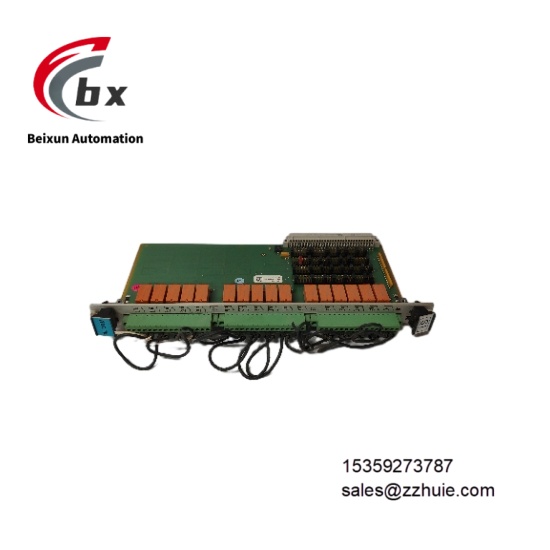

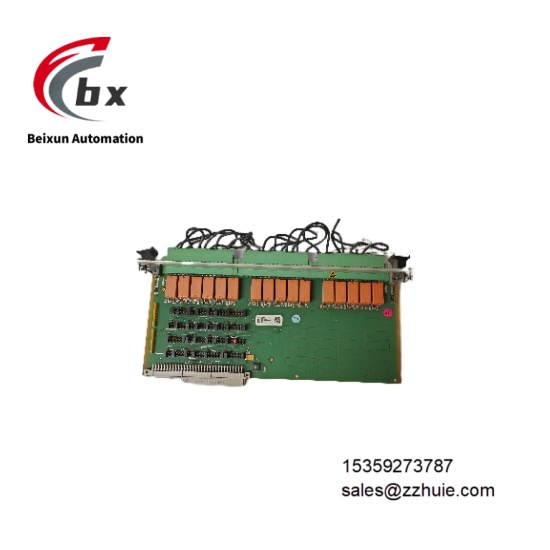

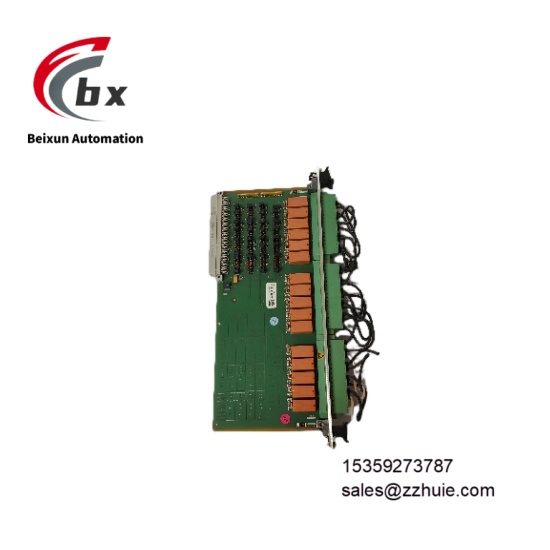

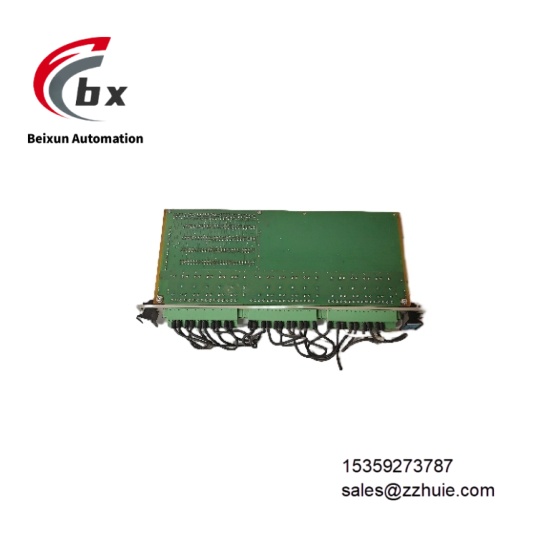

VIBRO-METER VM600 RLC16 200-570-000-111 200-570-101-015 Relay output card module

VIBRO-METER VM600 RLC16 200-570-000-111 200-570-101-015 Relay output card module

Specific Parameters​

Relay and Electrical Parameters​

Module Type 16-channel relay output card​

Relay Configuration 16 SPDT relays with change-over contacts​

Contact Configuration 1 COM, 1 NC, 1 NO contact per relay​

Rated Voltage 250 VAC​

Rated Current 5 AAC​

Maximum Breaking Capacity 1250 VA (without contact protection)​

Control Method Open-collector drivers under software control​

Operation Mode Jumper-selectable Normally Energized (NE)/Normally De-Energized (NDE)​

Power Supply +5 VDC​

Single Relay Power Consumption 40 mA​

Operate Time 8 ms​

Release Time 8 ms​

Bounce Time 6 ms​

Contact Characteristics Low contact resistance, low capacitance, high power handling​

Structure and Connection Parameters​

Compatible Racks VM600 ABE04x, ABE056 series 19-inch 6U racks​

Installation Position Rear of rack, slots 1/2/15~18​

Connection Method Single connector to rack backplane, 3×16 screw terminals​

Communication Interfaces 200-570-000-111: Backplane bus communication; 200-570-101-015: Additional RS485 communication​

Hot-swapping Supports live insertion/removal​

Overall Dimensions 262mm×20mm×125mm (6U height)​

Weight 0.30 kg​

Environmental and Certification Parameters​

Operating Temperature -25℃ to +65℃​

Storage Temperature -40℃ to +85℃​

Humidity Range Operating: 0~90%RH (non-condensing); Storage: 0~95%RH (non-condensing)​

Protection Features 200-570-101-015 with enhanced EMC protection​

Certification Standards Complies with CE, ISO 10816, API 670 standards​

Product Performance​

Sufficient output capacity, 16-channel SPDT relays meeting multi-dimensional alarm execution needs​

Reliable control precision, millisecond-level operate/release time ensuring response timeliness​

High configuration flexibility, dual operation mode jumpers adapting to different safety logic designs​

Strong connection stability, dual connection of screw terminals and backplane bus reducing contact failures​

Excellent operation and maintenance convenience, hot-swappable design with standardized terminal layout simplifying maintenance​

Strong environmental adaptability, wide temperature and humidity tolerance adapting to harsh industrial scenarios​

Good system compatibility, seamlessly connecting with all VM600 series protection and control modules​

High safety compliance, meeting multiple industrial safety standards to ensure application reliability​
