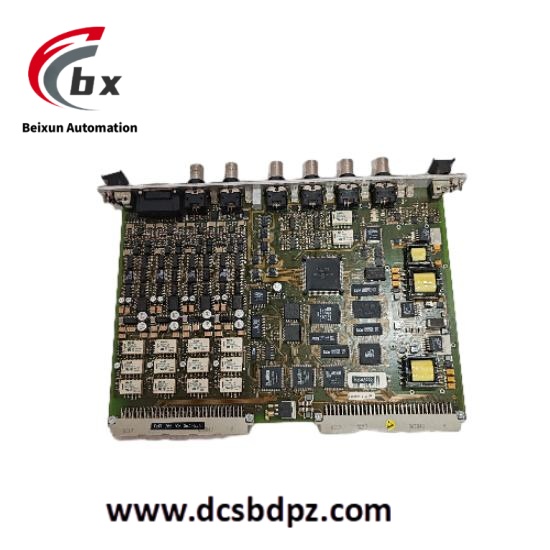

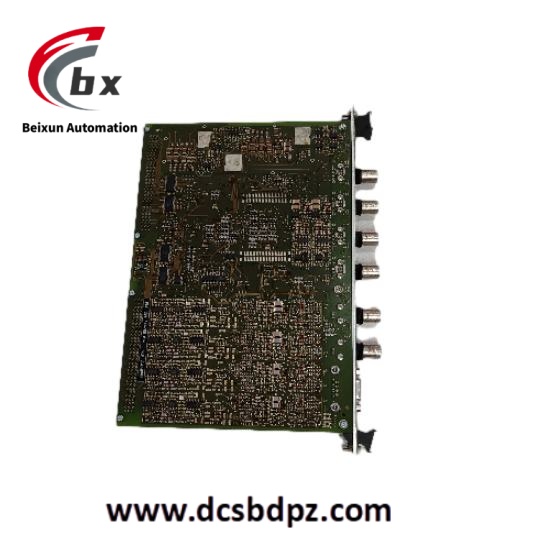

VIBRO-METER VM600 MPC4 200-510-064-034 200-610-100-034 Signal interface card module
The VIBRO - METER VM600 MPC4 200 - 510 - 064 - 034 200 - 610 - 100 - 034 are high - performance 6 - channel signal interface cards specifically designed for machinery protection. In the process of industrial automation, this product, with its ability to accurately collect and deeply analyze equipment operation data, monitors the operating status of machinery in real - time, effectively preventing equipment damage and accidents, and providing a solid guarantee for the safe and stable operation of equipment.Using Field - Programmable Gate Array (FPGA) chip, it can flexibly configure algorithms such as digital signal processing and logic control, ensuring long - term stable operation of the equipment and greatly reducing the risk of failure.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
VIBRO-METER VM600 MPC4 200-510-064-034 200-610-100-034 Signal interface card module
Specific Parameters
- Interface Terminals: Screw terminal strip, 48 terminals in total
- Electromagnetic Protection: EMI protection for all ports
- Alarm Relays: 4 relays, precisely controlled by software
- Programmable Outputs: 32 open – collector outputs to RLC card, jumper – selectable
- Vibration Output Types: Buffered raw vibration output, voltage vibration output, current vibration output
- Hot – Swap Function: Supports hot – swapping of cards
Product Performance
- High Configurability: Supports all types of measurements required for mechanical protection, such as relative and/or absolute vibration measurements. Each dynamic channel has 2 processing outputs, each dual – channel has 1 processing output (2 in total per card), and each speed measurement channel is equipped with 1 processed output. Combined with IOC 4T to form a highly integrated card pair, integrating sensor power supply, buffer output, DC output, relay, and serial communication interface, which can be flexibly customized according to equipment and working conditions.
- High Reliability: Using Field – Programmable Gate Array (FPGA) chip, it can flexibly configure algorithms such as digital signal processing and logic control, ensuring long – term stable operation of the equipment and greatly reducing the risk of failure.
- High Integration: The module integrates functions such as dynamic channels, tachometer channels, sensor power supplies, buffer outputs, DC outputs, relays, and serial communication interfaces, simplifying the connection and debugging of external components and improving the overall performance and reliability of the system.
- Scalability: Supports the development and deployment of customized digital signal processing and control algorithms based on the FPGA chip, meeting the special needs of different application scenarios and adapting to the development and changes of industrial automation.
- Ease of Operation: With a highly integrated design, it is easy to quickly connect and configure with various control systems and sensors, reducing the technical threshold for operation and improving the efficiency of equipment use.
Application Areas
- Industrial Machinery Protection: Widely used in industrial equipment such as motors, pumps, compressors, and fans. It monitors key parameters such as vibration and speed in real – time, detects potential failures in a timely manner, and avoids abnormal damage to equipment through alarm and protection mechanisms, reducing maintenance costs, extending equipment life, and ensuring the continuous and stable operation of industrial production.
- Production Process Monitoring: Suitable for automated production lines, it monitors and controls the operating status of production equipment in real – time. Through data analysis, it optimizes the production process. In industries such as automotive manufacturing and electronics manufacturing, it ensures the high – precision operation of equipment, effectively reduces the defective product rate, and improves production efficiency and product quality.
- Energy Industry: It plays a key role in the protection and monitoring of power generation equipment (such as steam turbines and generators) and large – scale mechanical equipment in the petrochemical industry. It ensures the safe and stable operation of energy production equipment, prevents energy supply interruptions or production accidents caused by equipment failures, and is crucial for the safe production and efficient operation of the energy industry.
