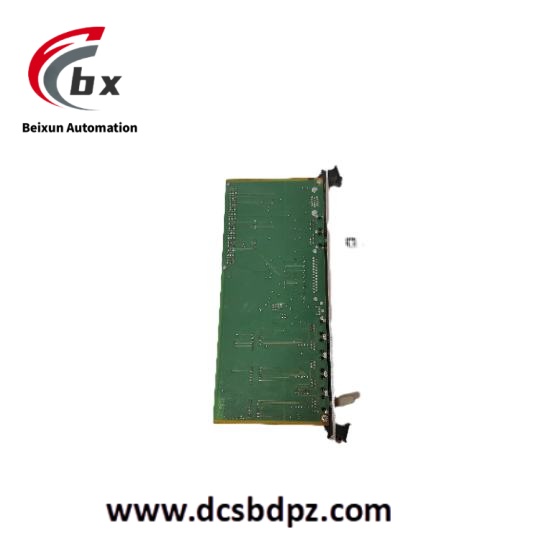

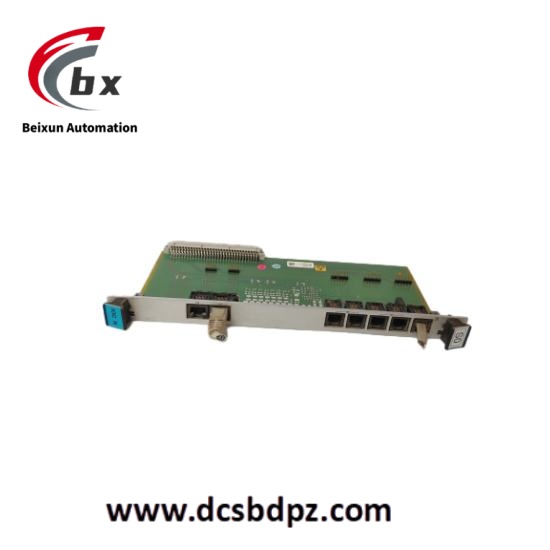

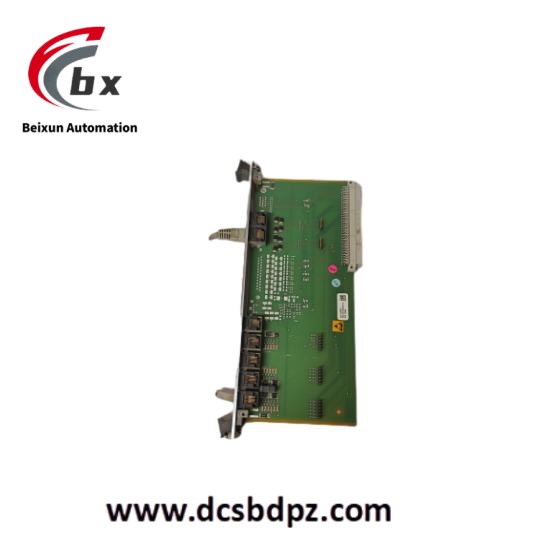

VIBRO-METER VM600 IOCN 200-566-000-112 200-566-101-013 High performance input/output card module
VIBRO-METER VM600 IOCN 200-566-000-112 200-566-101-013 is the core communication interface card for the VM600 Mechanical Protection System (MPS) and Condition Monitoring System (CMS). It is paired with the CPUM rack controller and is responsible for data exchange and protocol conversion between the system and external devices. Its core functions include supporting Modbus RTU/TCP and PROFINET communication protocols, providing redundant Ethernet connections and multi-point RS-485 network configuration capabilities, and being able to collect real-time sensor data such as vibration and displacement and transmit it to the upper computer.
wechatPhone 15359273787
Phone: 15359273787
Email: sales@zzhuie.com
connect：Mya
VIBRO-METER VM600 IOCN 200-566-000-112 200-566-101-013 High performance input/output card module
Specific Parameters
- Interface Configuration: Screw terminal strip interface with 32 terminals in total, facilitating connection with various sensors and devices
- Number of Channels: Equipped with 16 digital input channels and 16 digital output channels, meeting diverse data transmission requirements
- Signal Support: Supports standard TTL level signals, ensuring stable and compatible signal transmission
- Isolation Characteristics: All input and output channels are electrically isolated with an isolation voltage of 1500Vrms, effectively isolating signal interference and electrical failures
- Transmission Rate: The maximum data transmission rate can reach 10Mbps, ensuring fast and efficient data transmission
- Operating Voltage: The operating voltage is 24VDC, and the power supply allows a fluctuation range of ±15%, adapting to a variety of industrial power supply environments
- Operating Temperature: The operating temperature range is -40°C to +85°C, enabling stable operation in harsh industrial environments
Product Performance
- Efficient Data Interaction: It has the ability to quickly collect and transmit data, can respond to sensor signal changes in real – time, and promptly transmit data to the control system, ensuring the timeliness and accuracy of equipment operating status information and achieving efficient data interaction.
- High Stability and Reliability: Adopting electrical isolation design combined with industrial – grade components, it can effectively resist the influence of industrial environmental factors such as electromagnetic interference and voltage fluctuations, and can operate stably for a long time in complex working conditions, greatly reducing the probability of system failures.
- Flexible Customization Ability: The digital input and output channels can be flexibly configured through software, which can meet the personalized monitoring and control requirements of different industrial application scenarios and is adaptable to a variety of mechanical equipment and technological processes.
- Extensive Compatibility: Supporting standard TTL level signals, it can be directly connected to most sensors, controllers and actuators on the market without the need for additional signal conversion devices, reducing the cost and complexity of system integration.
- Convenient Maintenance Design: With a modular design, it is easy to install and supports hot – swap function. It can be directly replaced and maintained during equipment operation, effectively reducing downtime and improving production efficiency.
Application Areas
- Industrial Automation Production Lines: In industrial automation production lines such as automotive manufacturing, electronics assembly, and food processing, it is used to monitor and control the operating status of production equipment in real – time, ensuring the efficient and stable operation of the production line, and improving product quality and production efficiency.
- Energy and Power Industry: Suitable for the energy and power fields such as power generation equipment and power grid monitoring, it is responsible for collecting and transmitting data from various sensors such as temperature, pressure, current, and voltage, helping to achieve equipment fault warning and stable control of the power system, and ensuring the safety of energy supply.
- Petrochemical Industry: Applied in the petrochemical production process, it monitors and controls the operating parameters of key equipment such as reactors, compressors, and pumps in real – time, promptly discovers and handles abnormal situations, prevents safety accidents, and ensures safe and stable production.
- Machinery Health Monitoring: It can conduct long – term health monitoring of large – scale mechanical equipment such as fans, steam turbines, and machine tools. By collecting data such as vibration, rotation speed, and temperature, it analyzes the operating status of the equipment, predicts failures in advance, formulates reasonable maintenance plans, and reduces equipment maintenance costs and downtime losses.
