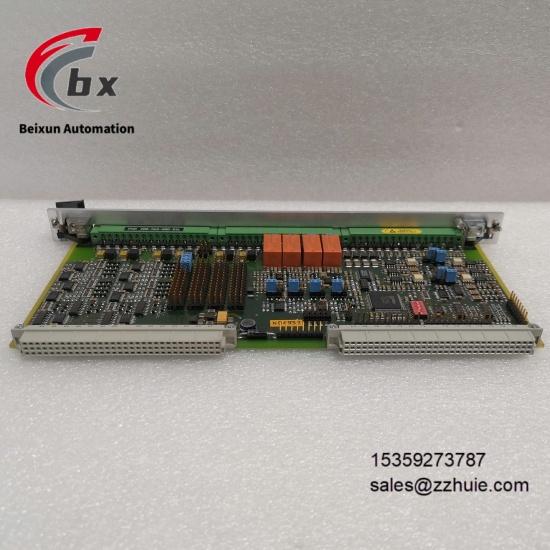

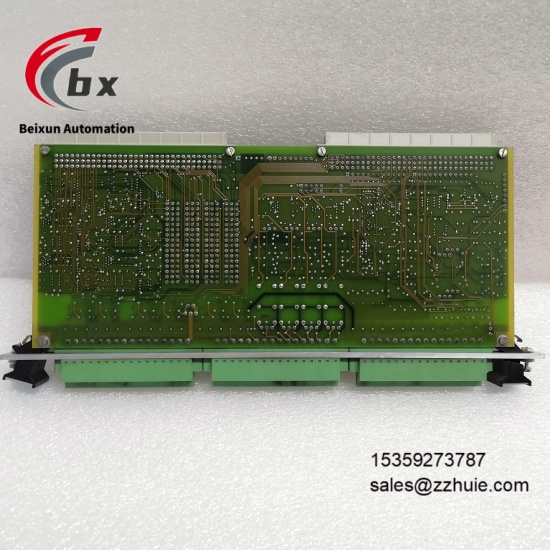

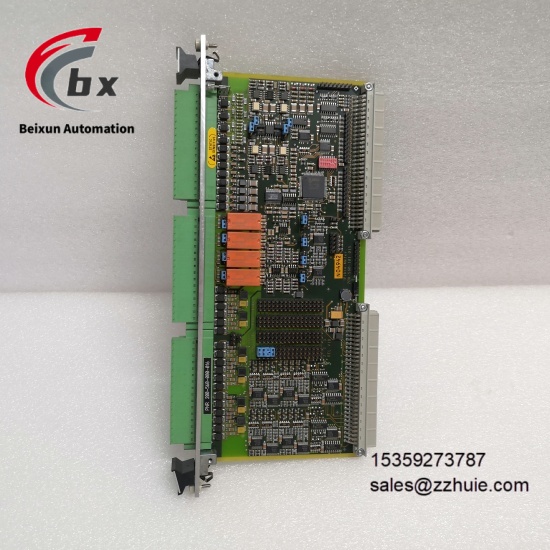

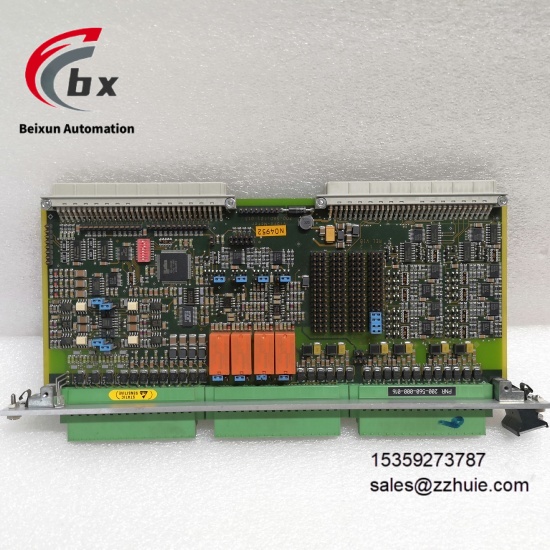

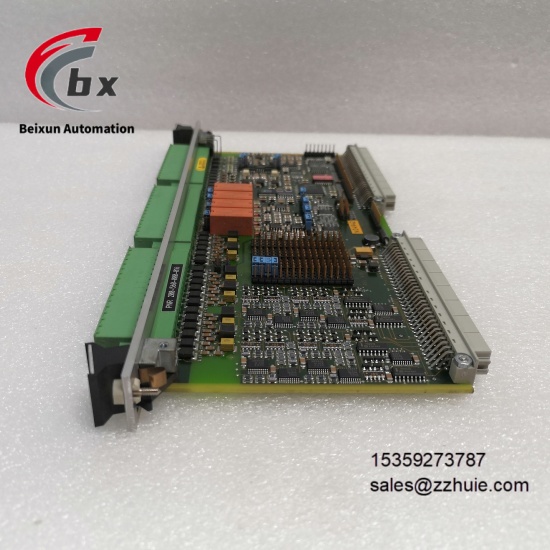

VIBRO-METER VM600 IOC4T 200-560-000-016 200-560-101-015 Input/output interface card

VIBRO-METER VM600 IOC4T 200-560-000-016 200-560-101-015 Input/output interface card

Specific Parameters

Brand VIBRO-METER (Affiliated to Meggitt Group, Original Authentic, Swiss Brand), Product Series VIBRO-METER VM600 Series

Product Type Input/Output Interface Card (I/O Card), Industrial Control Unit, Machinery Protection System Component, Original Authentic Spare Part

Model VIBRO-METER VM600 IOC4T 200-560-000-016, VIBRO-METER VM600 IOC4T 200-560-101-015

Country of Origin Switzerland

Compatible Devices VM600 Series MPC4 Machinery Protection Card, VM600 Rack (ABE 04x or ABE 056), Industrial Vibration Sensors, Speed Sensors, Industrial Automation Control Systems, Machinery Protection Systems

Core Functions Signal Interface Transfer, Dynamic Signal Acquisition, Speed Signal Input, Alarm Signal Linkage, Relay Control, Programmable Output, Sensor Signal Buffering, EMI Electromagnetic Interference Protection, Hot Swapping, Signal Transmission and Feedback

Product Structure Modular industrial-grade enclosure, 48-terminal screw terminal connectors, integrated relay module, clear terminal identification, mechanical anti-misinsertion design, color is industrial gray, adapting to the standard size of VM600 rack installation

Interface Type 4 dynamic signal input channels, 2 speed input channels, 4 relay outputs, 32 programmable open-collector outputs, supporting IP (Industry Pack) interface to communicate with MPC4 card

Power Input 24VDC (wide voltage adaptation 10-30VDC), can be uniformly powered by VM600 rack

Dynamic Signal Input Range ±10V (max), DC signal 0-20V or 0-(-20)V, current input DC 0-25mA, AC ±8mA (max)

Speed Input Supports various speed sensor signals such as eddy current, magnetoresistive, TTL

Output Signal Buffered “raw” sensor signals, analog output signals (voltage or current), 32 programmable open-collector outputs (jumper selectable)

Operating Frequency Dynamic signal frequency range 0.1Hz to 10kHz (without integration), 2.5Hz to 10kHz (with integration), signal bandwidth DC to 60kHz (-3dB)

Sampling Rate Up to 100kHz

Resolution 16-bit

Communication Interfaces Supports IP (Industry Pack) interface, Ethernet interface, USB interface, supports Modbus protocol

Dimensions 113mm×113mm×57mm (without mount), adapting to the standard size of VM600 rack

Weight Approximately 200g

System Compatibility Can be seamlessly adapted to VM600 series MPC4 machinery protection cards, supports linkage with IRC4 and RLC16 relay cards, and can be integrated into industrial automation control systems and machinery protection systems

Safety Certifications CE Certification, RoHS Certification, EMC Electromagnetic Compatibility Certification

Maximum Power Consumption 5W

Operating Temperature Range -20°C to +60°C

Storage Temperature Range -40°C to +85°C

Relative Humidity 5% to 95%, Non-Condensing

Protection Class IP20 (Complies with IEC 60529 Standard, Suitable for Cabinet Installation)

Vibration Resistance Frequency 10-500Hz, Acceleration 15g (Sine Wave), Complies with IEC 60068-2-6 Standard

Shock Resistance Peak Acceleration 50g, Duration 11ms (Half-Sine Wave), Complies with IEC 60068-2-27 Standard

Mounting Method Rack embedded installation, installed at the rear of the VM600 rack, installed corresponding to the MPC4 card, supports hot swapping, removable for maintenance online

Component Standard Adopts industrial-grade high-reliability components, built-in EMI protection module and signal buffering module, complying with the reliability standards of industrial machinery protection equipment

Product Performance

Adaptability Performance: Fully compatible with VM600 series MPC4 machinery protection cards and VM600 racks, supports linkage with IRC4 and RLC16 relay cards, can be adapted to various vibration sensors and speed sensors, compatible with industrial automation control systems, and the two versions can meet different circuit requirements, plug-and-play, high integration efficiency.

Signal Processing Performance: Equipped with 4 dynamic signal inputs and 2 speed input channels, 16-bit high resolution, up to 100kHz sampling rate, stable signal transmission, buffering “raw” sensor signals and analog output signals, amplitude error less than 2%, phase error less than 5° (DC to 10kHz), ensuring the accuracy of signal acquisition and transmission.

Safety Performance: Certified by CE, RoHS, EMC and other authoritative standards, all inputs and outputs have EMI electromagnetic interference protection, which can effectively resist signal interference, built-in relay alarm linkage function, can respond to equipment abnormalities in a timely manner, and the hot-swapping design can avoid losses caused by shutdown maintenance, ensuring the stable operation of equipment and systems.

Communication and Operation Performance: Equipped with rich communication interfaces, supports industrial protocols such as Modbus, can realize seamless communication with upper computers and DCS/PLC systems, clear terminal identification, easy installation, supports hot swapping, removable for maintenance online, greatly reducing maintenance costs and downtime.

Environmental and Durability Performance: Manufactured with industrial-grade high-protection materials, it can operate continuously and stably for a long time in a wide temperature range of -20°C to +60°C and high humidity environments, has excellent vibration and shock resistance, stable components, strong anti-electromagnetic interference ability, and adapts to harsh industrial operating environments.
