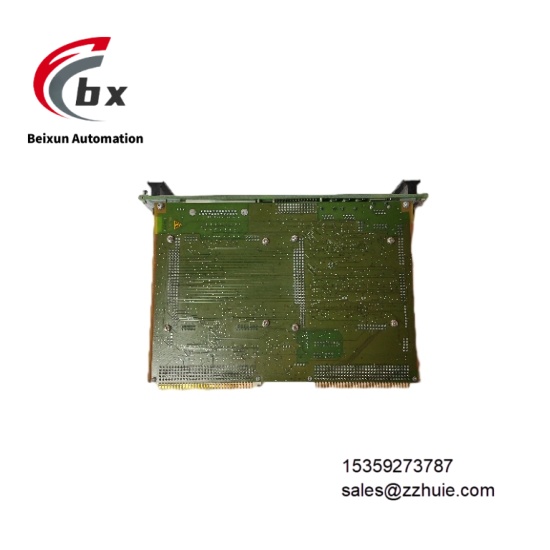

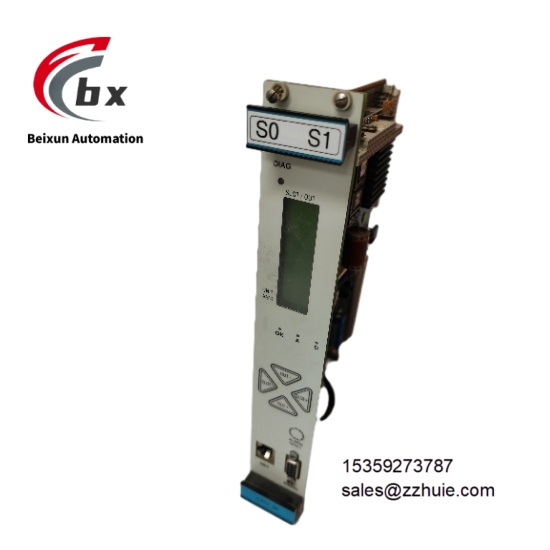

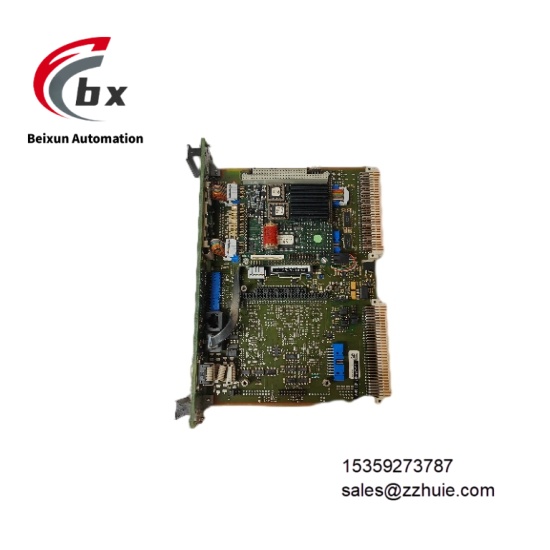

VIBRO-METER VM600 CPUM 200-595-067-114 Rack control and communication interface card module

VIBRO-METER VM600 CPUM 200-595-067-114 Rack control and communication interface card module

Specific Parameters​

Core Function Parameters​

Module Type Rack controller and communication interface card​

System Positioning System controller and data communication gateway​

Management Capability Supports configuration management of MPC4, AMC8 and other protection cards​

Configuration Method “One-shot” configuration via Ethernet/RS-232 serial connection to MPSx software​

Operation Components Front-panel Alarm Reset (AR) button, status indicators​

Display Function Front-panel display for visualizing monitored outputs and alarm limits​

Hot-swapping Support Compatible with live insertion/removal and automatic configuration of protection cards​

Communication and Acquisition Parameters​

Communication Protocols Modbus RTU/TCP, PROFINET​

Communication Interfaces 2 Ethernet interfaces, up to 3 serial interfaces (RS-232/RS-422/RS-485)​

Ethernet Speed 100Mbps​

Communication Redundancy Supports multi-bus redundancy for Ethernet and serial interfaces​

Input Channels 4 dynamic channels​

Reference Channels 2 phase reference channels​

Data Acquisition Rate Up to 50kHz​

Measurement Frequency Range 0~5000Hz​

Analog Outputs 2 channels​

Digital Inputs 4 channels​

Digital Outputs 4 channels​

Electrical and Environmental Parameters​

Power Supply 24V DC​

Compatible Racks All VM600 (ABE 04x) system racks​

Overall Dimensions 100mm×50mm×30mm​

Weight 100g​

Operating Temperature -20℃ to +60℃​

Storage Temperature -40℃ to +85℃​

Protection Features Adaptable to industrial vibration environments, with electromagnetic compatibility​

Certification Standards Complies with relevant industrial control equipment certifications​

Product Performance​

High control integration, combining rack management and communication gateway functions to simplify system architecture​

Powerful communication capability, multi-protocol and multi-interface parallel operation, adapting to complex industrial networks​

Excellent configuration efficiency, “one-shot” module management reduces system commissioning time​

High operational reliability, multi-bus communication redundancy avoids data transmission interruption​

Excellent operation and maintenance convenience, supporting hot-swapping and front-panel operation to reduce downtime losses​

Good system compatibility, seamlessly connecting with all VM600 series racks and protection cards​

Efficient data processing, 50kHz acquisition rate ensuring real-time monitoring needs​

Strong environmental adaptability, wide temperature operating range, withstanding harsh industrial conditions​
